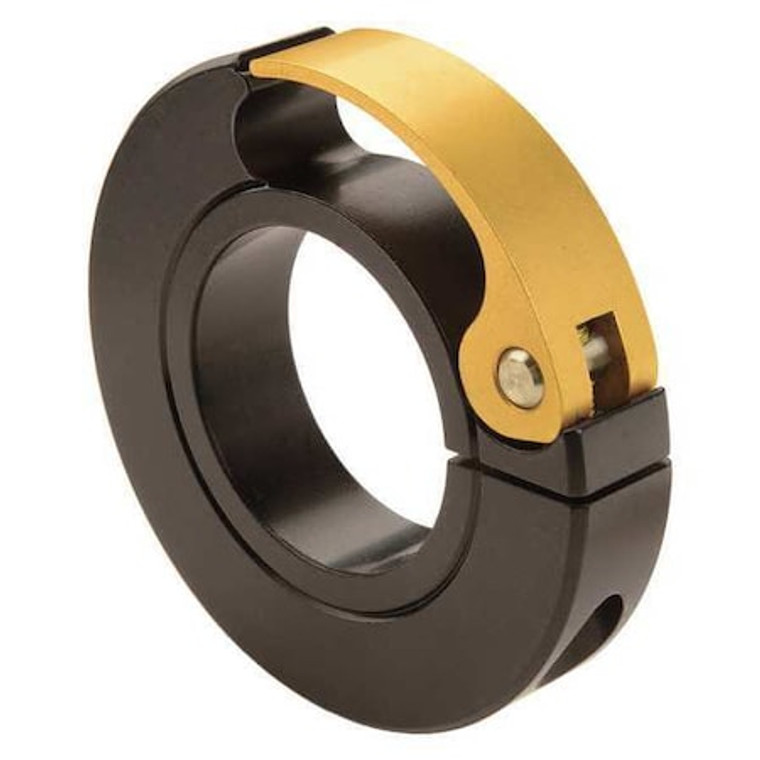

Shaft Collar, Quick Clamp, 2-1/4 In, Alum - QCL-36-A

Shaft Collar, Quick Clamp, 2-1/4 In, Alum - QCL-36-A

Ruland
SKU:
QCL-36-A
|
UPC:
634529135570
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 2 1/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 4 3/4 in, Inside Height to Flat Not Applicable, Clearance Diameter Not Applicable, Collar Width 3/4 in, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 6061, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top 2.38 in, Collar Construction 1-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
2 1/4 in
Material:
Black Anodized 6061 Aluminum
Number of Pieces:
1
Collar Style:
Clamp, Quick
Outside Dia.:
4 47/64 in
Dimension Type:
Inch
Width:
187/250 in
Screw Size:
M6
Operating Temp. Range:
-40 Degrees to 200 Degrees F
Clearance Dia.:
4.724 in
Screw Material:
Stainless Steel
Item - Shaft Collars:
Shaft Collar
Bore Type - Collars:
Plain Bore
Item:
Shaft Collar
Shaft Locking Type - Couplings:
1 Piece Quick Clamp
Material - Collars:
Black Anodized 6061 Aluminum
System of Measurement:
Inch
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Distance Across Flats:
Not Applicable
Screw Seating Torque:
40 in-lb
Width Tolerance:
+0.003/-0.010 in
Bore Tolerance:
+0.002/+0.0005 in
Included Screws:
(1) Hex Socket Cap Screw
Inside Height to Flat:
Not Applicable
Screw Thread Size:
Not Applicable
Bore Width:
Not Applicable
Component Mount Type:
Not Applicable
Keyway Depth:
Not Applicable
Collar Material Finish:
Bright
For Shaft Diameter:
2 1/4 in
Shaft Locking Type:
Clamp On
Handle Material:
Aluminum
Screw Location from Center:
Not Applicable
Collar Construction:
1-Piece
Maximum Operating Temperature:
200 Degrees F
Handle Material Finish:
Anodized
Collar Material Grade:
6061
Minimum Operating Temperature:
-40 Degrees F
Collar Width:
3/4 in
Bore Type:
Round
Lever Length:
Not Applicable
Handle Color:
Gold
Thread Direction:
Not Applicable
Bore Thread Size:
Not Applicable
Screw Material Grade:
304
Mount Hole Thread Size:
Not Applicable
Resistance Properties:
Not Applicable
Screw Material Finish:
Bright
Lever Part Number:
Not Applicable
Shaft Tolerance:
+0.0000/-0.0005 in
Keyway Width:
Not Applicable
Lever Height:
Not Applicable
Flat to Bore:
Not Applicable
Collar Outside Diameter:
4 3/4 in
Clearance Diameter:
Not Applicable
Bore Diameter:
2 1/4 in
Center to Lever Top:
2.38 in
Collar Material:
Aluminum
Package Quantity:
1
