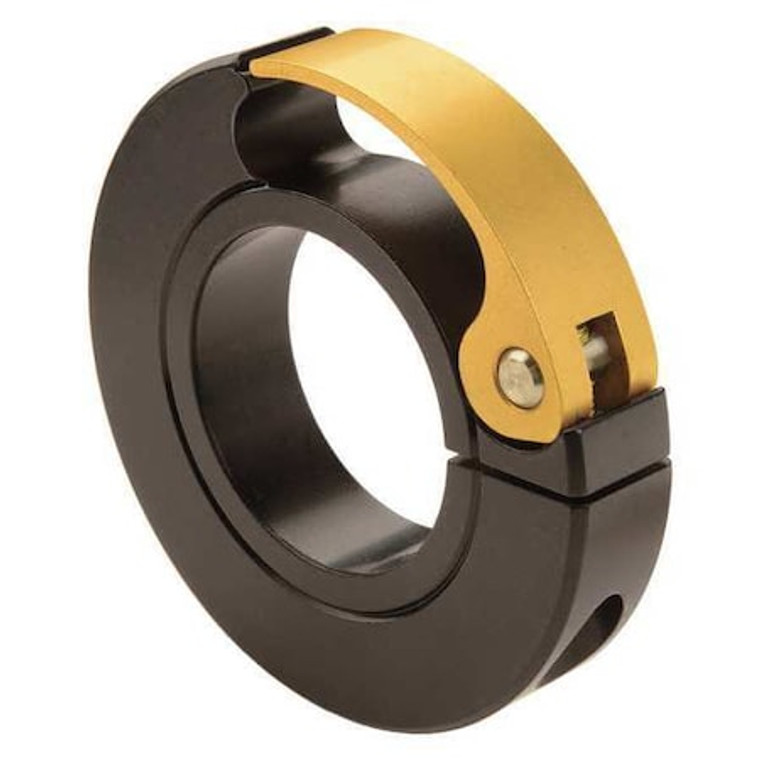

Shaft Collar, Quick Clamp, 1Pc, 55mm, Alum - MQCL-55-A

Shaft Collar, Quick Clamp, 1Pc, 55mm, Alum - MQCL-55-A

Ruland
SKU:
MQCL-55-A
|
UPC:
634529135853
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 55 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 120 mm, Inside Height to Flat Not Applicable, Clearance Diameter Not Applicable, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 6061, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top 60 mm, Collar Construction 1-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
55 mm
Material:
Black Anodized 6061 Aluminum
Number of Pieces:
1
Collar Style:
Clamp, Quick
Outside Dia.:
120 mm
Dimension Type:
Metric
Width:
19 mm
Screw Size:
M6
Operating Temp. Range:
-40 Degrees to 200 Degrees F
Clearance Dia.:
120 mm
Screw Material:
Stainless Steel
Shaft Locking Type - Couplings:
1 Piece Quick Clamp
Item:
Shaft Collar
Material - Collars:
Black Anodized 6061 Aluminum
System of Measurement:
Metric
Bore Type - Collars:
Plain Bore
Item - Shaft Collars:
Shaft Collar
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Width Tolerance:
+0.076/-0.254 mm
Bore Tolerance:
+0.050/+0.012 mm
Screw Seating Torque:
4.52 N-m
Distance Across Flats:
Not Applicable
Collar Material:
Aluminum
Screw Location from Center:
Not Applicable
Included Screws:
(1) Hex Socket Cap Screw
Bore Diameter:
55 mm
Collar Material Grade:
6061
Screw Thread Size:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Component Mount Type:
Not Applicable
Collar Width:
19 mm
Thread Direction:
Not Applicable
Bore Type:
Round
Handle Color:
Gold
Minimum Operating Temperature:
-40 Degrees C
Lever Part Number:
Not Applicable
Maximum Operating Temperature:
93 Degrees C
Screw Material Finish:
Bright
Bore Thread Size:
Not Applicable
Screw Material Grade:
304
Keyway Width:
Not Applicable
Lever Height:
Not Applicable
Handle Material:
Aluminum
Bore Width:
Not Applicable
Inside Height to Flat:
Not Applicable
Handle Material Finish:
Anodized
Collar Material Finish:
Bright
Resistance Properties:
Not Applicable
Keyway Depth:
Not Applicable
Center to Lever Top:
60 mm
Shaft Tolerance:
+0.000/-0.013 mm
Lever Length:
Not Applicable
Clearance Diameter:
Not Applicable
Flat to Bore:
Not Applicable
Collar Outside Diameter:
120 mm
Shaft Locking Type:
Clamp On
For Shaft Diameter:
55 mm
Collar Construction:
1-Piece
Package Quantity:
1
