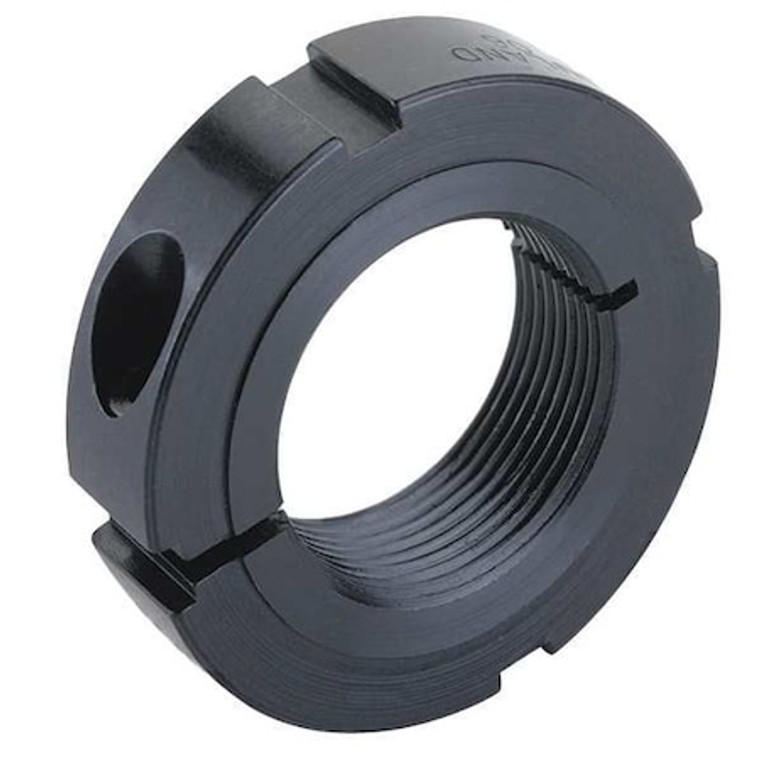

Shaft Collar, Locknut, 2.360-18 In, Steel - TCN-12-F

Shaft Collar, Locknut, 2.360-18 In, Steel - TCN-12-F

Ruland
SKU:
TCN-12-F
|
UPC:
634529028995
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, Industry Standard Size N12, Bore Thread Size 2.360 In. - 18 TPI, Nut Outside Diameter 3 3/8 in, Face Diameter 2 27/32 in, Nut Width 5/8 in, Bearing Face Maximum TIR 0.001 in, Nut Material Carbon Steel, Nut Material Grade 1215, System of Measurement Inch, Resistance Properties Corrosion Resistant, Screw Location from Center 1.41 in, Screw Material Alloy Steel, Maximum Operating Temperature 350 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
Country of Origin:
United States
Bore Dia.:
2.360-18"
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
1
Collar Style:
Bearing Locknut
Outside Dia.:
3 3/8 in
Dimension Type:
Inch
Width:
5/8 in
Screw Size:
M6 x 18
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Screw Material:
Alloy Steel
Material - Collars:
Black Oxide 1215 Lead Free Steel
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Type - Collars:
Threaded Bore
System of Measurement:
Inch
Item - Shaft Collars:
Bearing Locknut Shaft Collar
Item:
Shaft Collar
Standards:
Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Screw Seating Torque:
16 N-m
Bore Type:
Threaded Bore
Industry Standard Size:
N12
Resistance Properties:
Corrosion Resistant
Screw Thread Size:
M6x18
Maximum Operating Temperature:
350 Degrees F
Bore Thread Size:
2.360 - 18 TPI"
Nut Material:
Carbon Steel
Minimum Operating Temperature:
-40 Degrees F
Nut Construction:
1-Piece Clamp-On
Screw Location from Center:
1.41 in
Nut Material Grade:
1215
Nut Locking Type:
Clamping Socket Cap Screw
Screw Material Finish:
Black Oxide
Nut Outside Diameter:
3 3/8 in
Bearing Face Maximum TIR:
0.001 in
Nut Width:
5/8 in
Face Diameter:
2 27/32 in
Nut Material Finish:
Black Oxide
Shaft Tolerance:
+0.0000/-0.0005 in
Thread Spacing:
Fine
Bore Diameter:
2.36 in
Package Quantity:
1
