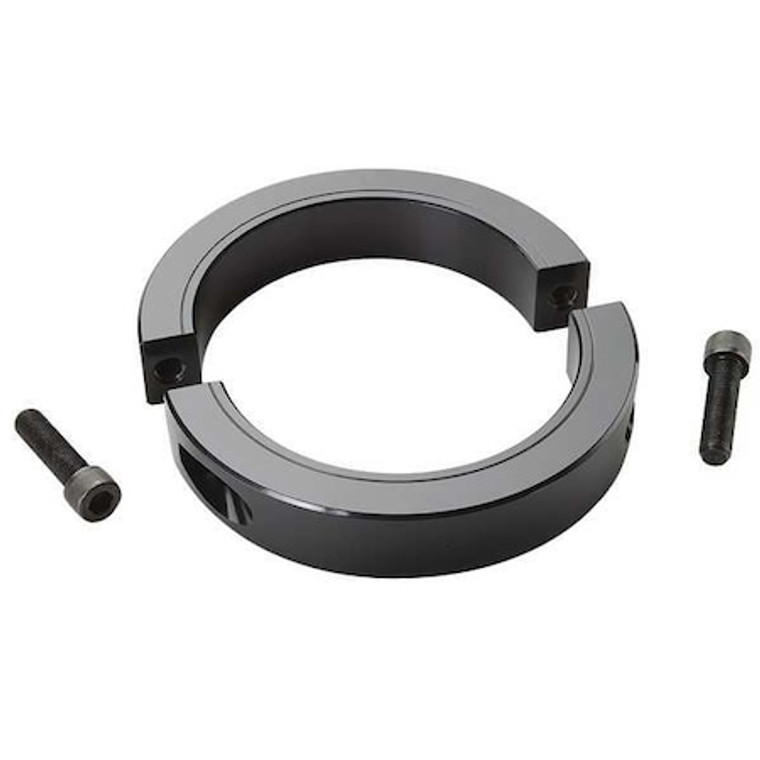

Shaft Collar, Clamp, 2Pc, 85mm, Steel - MSPH-85-F

Shaft Collar, Clamp, 2Pc, 85mm, Steel - MSPH-85-F

Ruland
SKU:
MSPH-85-F
|
UPC:
634529133248
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 85 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 130 mm, Inside Height to Flat Not Applicable, Clearance Diameter 140.8 mm, Collar Width 32 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
85 mm
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
130 mm
Dimension Type:
Metric
Width:
32 mm
Screw Size:
M12 x 40
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
140.8 mm
Screw Material:
Alloy Steel
Material - Collars:
Black Oxide 1215 Lead Free Steel
Shaft Locking Type - Couplings:
2 Piece Clamp
Bore Type - Collars:
Plain Bore
Item - Shaft Collars:
Shaft Collar
Item:
Shaft Collar
System of Measurement:
Metric
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Width Tolerance:
+0.076/-0.254 mm
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.102/-0.000 mm
Screw Seating Torque:
135 N-m
Inside Height to Flat:
Not Applicable
Flat to Bore:
Not Applicable
Screw Location from Center:
56.5 mm
Handle Material:
Not Applicable
Shaft Tolerance:
+0.000/-0.025 mm
Minimum Operating Temperature:
-40 Degrees C
Collar Construction:
2-Piece
Included Screws:
(2) Hex Socket Cap Screw
Mount Hole Thread Size:
Not Applicable
Screw Material Finish:
Black Oxide
Maximum Operating Temperature:
176 Degrees C
Lever Height:
Not Applicable
Collar Width:
32 mm
Keyway Width:
Not Applicable
Collar Material Finish:
Black Oxide
Bore Width:
Not Applicable
Keyway Depth:
Not Applicable
Collar Material Grade:
1215
For Shaft Diameter:
85 mm
Screw Thread Size:
M12x40
Bore Type:
Round
Resistance Properties:
Not Applicable
Component Mount Type:
Not Applicable
Thread Direction:
Not Applicable
Bore Thread Size:
Not Applicable
Lever Length:
Not Applicable
Bore Diameter:
85 mm
Collar Material:
Carbon Steel
Handle Material Finish:
Not Applicable
Collar Outside Diameter:
130 mm
Lever Part Number:
Not Applicable
Shaft Locking Type:
Clamp On
Handle Color:
Not Applicable
Center to Lever Top:
Not Applicable
Clearance Diameter:
140.8 mm
Package Quantity:
1
