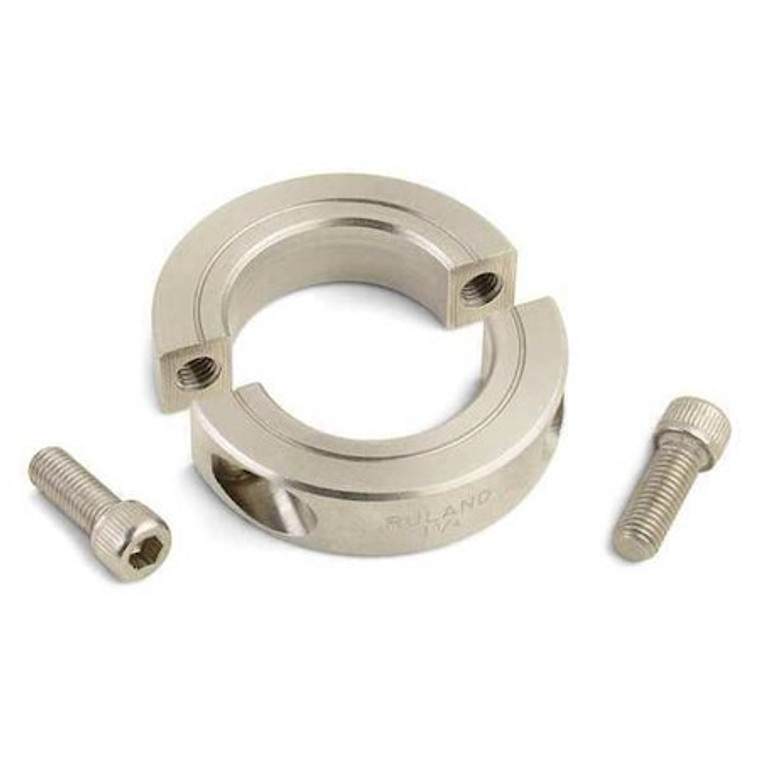

Shaft Collar, Clamp, 2Pc, 70mm, 303 SS - MSP-70-SS

Shaft Collar, Clamp, 2Pc, 70mm, 303 SS - MSP-70-SS

Ruland
SKU:
MSP-70-SS
|
UPC:
634529016336
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 70 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 98 mm, Inside Height to Flat Not Applicable, Clearance Diameter 104.5 mm, Collar Width 19 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
70 mm
Material:
303 Stainless Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
98 mm
Dimension Type:
Metric
Width:
19 mm
Screw Size:
M8 x 25
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
104.5 mm
Screw Material:
Stainless Steel
Shaft Locking Type - Couplings:
2 Piece Clamp
System of Measurement:
Metric
Item:
Shaft Collar
Bore Type - Collars:
Plain Bore
Item - Shaft Collars:
Shaft Collar
Material - Collars:
303 Stainless Steel
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Bore Tolerance:
+0.050/+0.012 mm
Width Tolerance:
+0.076/-0.254 mm
Distance Across Flats:
Not Applicable
Screw Seating Torque:
23 N-m
Bore Type:
Round
Screw Material Grade:
304
Maximum Operating Temperature:
176 Degrees C
Lever Part Number:
Not Applicable
Bore Thread Size:
Not Applicable
Shaft Tolerance:
+0.000/-0.013 mm
Collar Material:
Stainless Steel
Lever Length:
Not Applicable
Center to Lever Top:
Not Applicable
Thread Direction:
Not Applicable
For Shaft Diameter:
70 mm
Component Mount Type:
Not Applicable
Bore Diameter:
70 mm
Inside Height to Flat:
Not Applicable
Flat to Bore:
Not Applicable
Screw Length:
25 mm
Collar Construction:
2-Piece
Shaft Locking Type:
Clamp On
Handle Color:
Not Applicable
Screw Location from Center:
42.01 mm
Resistance Properties:
Corrosion Resistant
Collar Width:
19 mm
Bore Width:
Not Applicable
Handle Material:
Not Applicable
Collar Material Grade:
303
Mount Hole Thread Size:
Not Applicable
Screw Thread Size:
M8x25
Keyway Depth:
Not Applicable
Screw Material Finish:
Bright
Clearance Diameter:
104.5 mm
Lever Height:
Not Applicable
Minimum Operating Temperature:
-40 Degrees C
Included Screws:
(2) Hex Socket Cap Screw
Handle Material Finish:
Not Applicable
Keyway Width:
Not Applicable
Collar Material Finish:
Bright
Collar Outside Diameter:
98 mm
Package Quantity:
1
