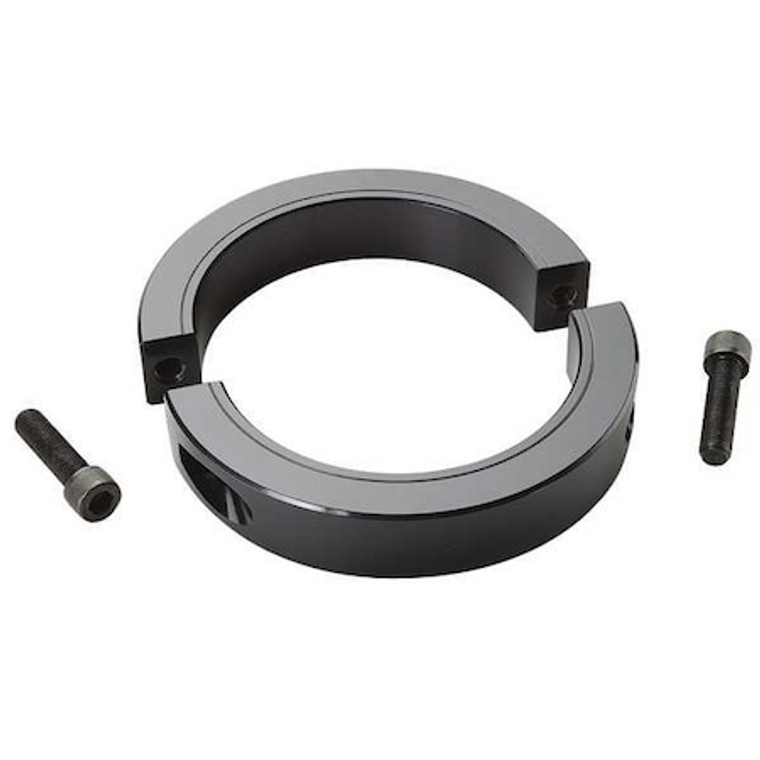

Shaft Collar, Clamp, 2Pc, 5 In, Steel - SPH-80-F

Shaft Collar, Clamp, 2Pc, 5 In, Steel - SPH-80-F

Ruland
SKU:
SPH-80-F
|
UPC:
634529024652
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 5 in, Bore Thread Size Not Applicable, Collar Outside Diameter 6 3/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 7.02 in, Collar Width 1 3/8 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
5 in
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
6 3/4 in
Dimension Type:
Inch
Width:
1 3/8 in
Screw Size:
1/2-20 x 2""
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
7.018 in
Screw Material:
Alloy Steel
Item - Shaft Collars:
Shaft Collar
System of Measurement:
Inch
Shaft Locking Type - Couplings:
2 Piece Clamp
Material - Collars:
Black Oxide 1215 Lead Free Steel
Bore Type - Collars:
Plain Bore
Item:
Shaft Collar
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Screw Seating Torque:
1,612 lb-in
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.004/-0.000 in
Width Tolerance:
+0.003/-0.010 in
Maximum Operating Temperature:
350 Degrees F
For Shaft Diameter:
5 in
Collar Material Finish:
Black Oxide
Flat to Bore:
Not Applicable
Screw Material Finish:
Black Oxide
Center to Lever Top:
Not Applicable
Resistance Properties:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Lever Part Number:
Not Applicable
Collar Material:
Carbon Steel
Bore Diameter:
5 in
Inside Height to Flat:
Not Applicable
Component Mount Type:
Not Applicable
Collar Width:
1 3/8 in
Collar Material Grade:
1215
Screw Location from Center:
2.94 in
Keyway Width:
Not Applicable
Collar Construction:
2-Piece
Bore Width:
Not Applicable
Lever Height:
Not Applicable
Thread Direction:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Handle Material Finish:
Not Applicable
Clearance Diameter:
7.02 in
Handle Material:
Not Applicable
Lever Length:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Shaft Tolerance:
+0.0000/-0.0005 in
Handle Color:
Not Applicable
Keyway Depth:
Not Applicable
Shaft Locking Type:
Clamp On
Bore Thread Size:
Not Applicable
Bore Type:
Round
Collar Outside Diameter:
6 3/4 in
Screw Thread Size:
1/2-20x2"
Package Quantity:
1
