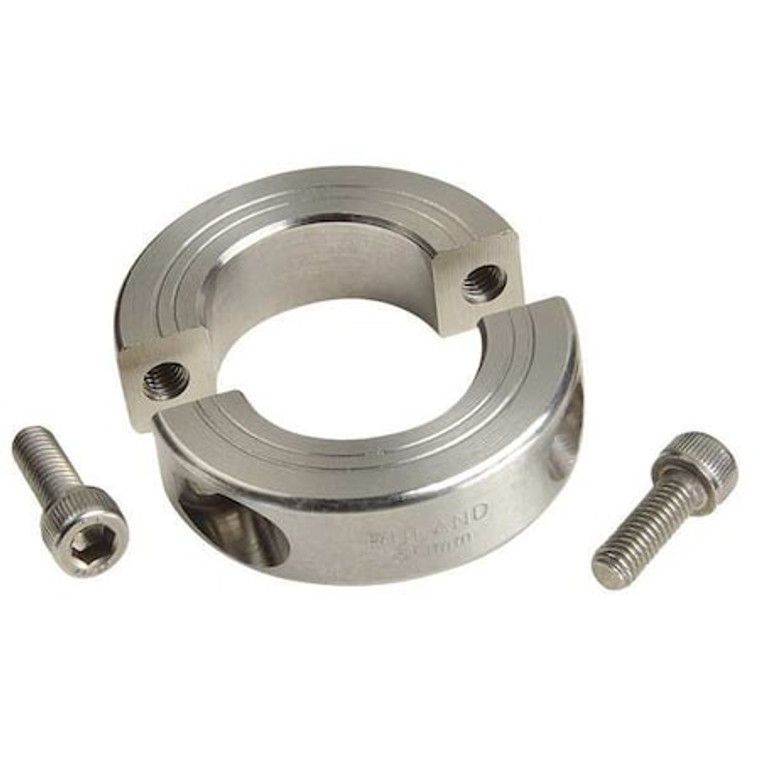

Shaft Collar, Clamp, 2Pc, 30mm, 316 SS - MSP-30-ST

Shaft Collar, Clamp, 2Pc, 30mm, 316 SS - MSP-30-ST

Ruland
SKU:
MSP-30-ST
|
UPC:
634529128954
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 30 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Clearance Diameter 59.2 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 316, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
30 mm
Material:
316 stainless steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
54 mm
Dimension Type:
Metric
Width:
15 mm
Screw Size:
M6 x 18
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
59.2 mm
Screw Material:
Stainless Steel
Item:
Shaft Collar
Item - Shaft Collars:
Shaft Collar
Material - Collars:
316 Stainless Steel
System of Measurement:
Metric
Bore Type - Collars:
Plain Bore
Shaft Locking Type - Couplings:
2 Piece Clamp
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Screw Seating Torque:
9.6 N-m
Width Tolerance:
+0.076/-0.254 mm
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.050/+0.012 mm
Screw Material Grade:
316
Screw Location from Center:
21.49 mm
Lever Height:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Inside Height to Flat:
Not Applicable
Collar Construction:
2-Piece
Screw Thread Size:
M6x18
Collar Material:
Stainless Steel
Screw Material Finish:
Bright
Collar Material Grade:
316
Handle Color:
Not Applicable
Clearance Diameter:
59.2 mm
Minimum Operating Temperature:
-40 Degrees C
Keyway Depth:
Not Applicable
Bore Width:
Not Applicable
Lever Part Number:
Not Applicable
Collar Material Finish:
Bright
For Shaft Diameter:
30 mm
Bore Type:
Round
Flat to Bore:
Not Applicable
Component Mount Type:
Not Applicable
Bore Diameter:
30 mm
Handle Material Finish:
Not Applicable
Maximum Operating Temperature:
176 Degrees C
Handle Material:
Not Applicable
Shaft Locking Type:
Clamp On
Collar Width:
15 mm
Bore Thread Size:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Resistance Properties:
Corrosion Resistant
Lever Length:
Not Applicable
Center to Lever Top:
Not Applicable
Keyway Width:
Not Applicable
Collar Outside Diameter:
54 mm
Shaft Tolerance:
+0.000/-0.013 mm
Thread Direction:
Not Applicable
Package Quantity:
1
