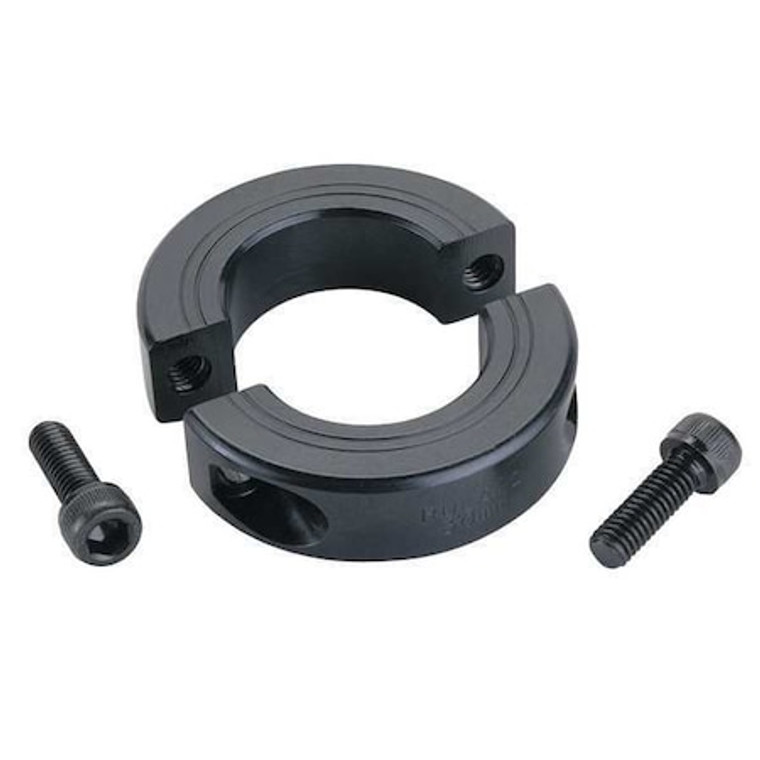

Shaft Collar, Clamp, 2Pc, 3 In, Steel - SP-48-F

Shaft Collar, Clamp, 2Pc, 3 In, Steel - SP-48-F

Ruland
SKU:
SP-48-F
|
UPC:
634529021620
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 3 in, Bore Thread Size Not Applicable, Collar Outside Diameter 4 1/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 4.5 in, Collar Width 7/8 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
3 in
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
4 1/4 in
Dimension Type:
Inch
Width:
7/8 in
Screw Size:
3/8-24"
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
4.5 in
Screw Material:
Alloy Steel
Shaft Locking Type - Couplings:
2 Piece Clamp
Item - Shaft Collars:
Shaft Collar
Item:
Shaft Collar
Bore Type - Collars:
Plain Bore
System of Measurement:
Inch
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Material - Collars:
Black Oxide 1215 Lead Free Steel
Distance Across Flats:
Not Applicable
Width Tolerance:
+0.003/-0.010 in
Bore Tolerance:
+0.002/+0.0005 in
Screw Seating Torque:
570 lb-in
Shaft Locking Type:
Clamp On
Minimum Operating Temperature:
-40 Degrees F
Collar Material Grade:
1215
Handle Material Finish:
Not Applicable
Clearance Diameter:
4.5 in
Bore Type:
Round
For Shaft Diameter:
3 in
Screw Material Finish:
Black Oxide
Collar Material:
Carbon Steel
Bore Width:
Not Applicable
Handle Material:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Keyway Width:
Not Applicable
Thread Direction:
Not Applicable
Lever Length:
Not Applicable
Component Mount Type:
Not Applicable
Handle Color:
Not Applicable
Collar Material Finish:
Black Oxide
Collar Outside Diameter:
4 1/4 in
Shaft Tolerance:
+0.0000/-0.0010 in
Maximum Operating Temperature:
350 Degrees F
Mount Hole Thread Size:
Not Applicable
Screw Thread Size:
3/8-24"
Collar Width:
7/8 in
Flat to Bore:
Not Applicable
Bore Thread Size:
Not Applicable
Collar Construction:
2-Piece
Keyway Depth:
Not Applicable
Screw Location from Center:
1.81 in
Lever Part Number:
Not Applicable
Resistance Properties:
Not Applicable
Inside Height to Flat:
Not Applicable
Lever Height:
Not Applicable
Bore Diameter:
3 in
Center to Lever Top:
Not Applicable
Package Quantity:
1
