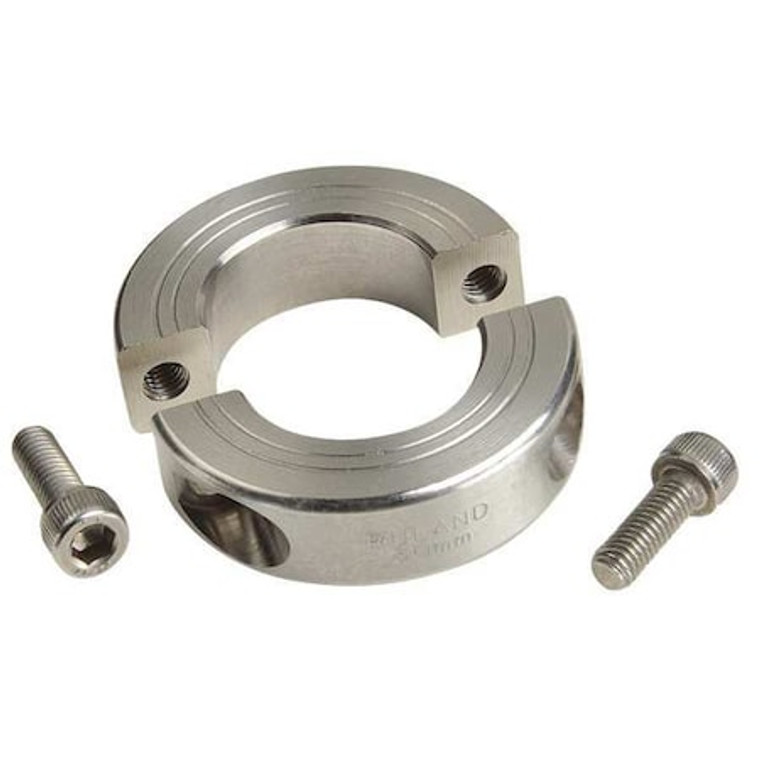

Shaft Collar, Clamp, 2Pc, 3/4 In, 316 SS - SP-12-ST

Shaft Collar, Clamp, 2Pc, 3/4 In, 316 SS - SP-12-ST

Ruland
SKU:
SP-12-ST
|
UPC:
634529118986
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 3/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 1 1/2 in, Inside Height to Flat Not Applicable, Clearance Diameter 1.81 in, Collar Width 1/2 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 316, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
3/4 in
Material:
316 stainless steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
1 1/2 in
Dimension Type:
Inch
Width:
1/2 in
Screw Size:
1/4-28"
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
1.808 in
Screw Material:
Stainless Steel
System of Measurement:
Inch
Material - Collars:
316 Stainless Steel
Bore Type - Collars:
Plain Bore
Item - Shaft Collars:
Shaft Collar
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Shaft Collar
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Screw Seating Torque:
110 lb-in
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.002/+0.0005 in
Width Tolerance:
+0.003/-0.010 in
Collar Width:
1/2 in
Lever Length:
Not Applicable
Keyway Width:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Maximum Operating Temperature:
350 Degrees F
Collar Material Grade:
316
Collar Material:
Stainless Steel
Lever Height:
Not Applicable
Screw Location from Center:
0.55 in
Handle Material Finish:
Not Applicable
Clearance Diameter:
1.81 in
Keyway Depth:
Not Applicable
Flat to Bore:
Not Applicable
Shaft Locking Type:
Clamp On
Bore Thread Size:
Not Applicable
Resistance Properties:
Corrosion Resistant
Thread Direction:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Handle Material:
Not Applicable
Inside Height to Flat:
Not Applicable
Screw Material Finish:
Bright
Screw Thread Size:
1/4-28"
Bore Diameter:
3/4 in
For Shaft Diameter:
3/4 in
Bore Width:
Not Applicable
Shaft Tolerance:
+0.0000/-0.0005 in
Component Mount Type:
Not Applicable
Center to Lever Top:
Not Applicable
Screw Material Grade:
316
Handle Color:
Not Applicable
Lever Part Number:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Bore Type:
Round
Collar Outside Diameter:
1 1/2 in
Collar Material Finish:
Bright
Collar Construction:
2-Piece
Package Quantity:
1
