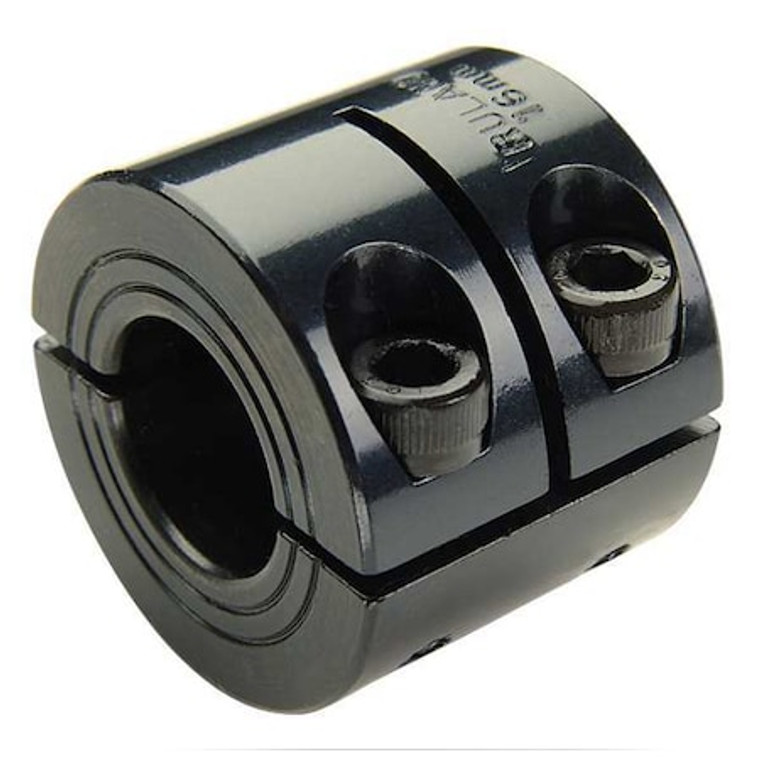

Shaft Collar, Clamp, 2Pc, 16mm, Steel - MWSP-16-F

Shaft Collar, Clamp, 2Pc, 16mm, Steel - MWSP-16-F

Ruland
SKU:
MWSP-16-F
|
UPC:
634529106525
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 27.6 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
16 mm
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
34 mm
Dimension Type:
Metric
Width:
29 mm
Screw Size:
M5
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
39.3 mm
Screw Material:
Alloy Steel
Item - Shaft Collars:
Shaft Collar
System of Measurement:
Metric
Material - Collars:
Black Oxide 1215 Lead Free Steel
Shaft Locking Type - Couplings:
2 Piece Clamp
Bore Type - Collars:
Plain Bore
Item:
Shaft Collar
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.050/+0.012 mm
Width Tolerance:
+0.076/-0.254 mm
Screw Seating Torque:
9.5 N-m
For Shaft Diameter:
16 mm
Screw Thread Size:
M5
Included Screws:
(4) Hex Socket Cap Screw
Handle Material:
Not Applicable
Bore Type:
Round
Collar Outside Diameter:
34 mm
Maximum Operating Temperature:
176 Degrees C
Inside Height to Flat:
Not Applicable
Handle Color:
Not Applicable
Keyway Width:
Not Applicable
Lever Part Number:
Not Applicable
Screw Material Finish:
Black Oxide
Component Mount Type:
Not Applicable
Minimum Operating Temperature:
-40 Degrees C
Bore Thread Size:
Not Applicable
Lever Height:
Not Applicable
Flat to Bore:
Not Applicable
Resistance Properties:
Not Applicable
Collar Material:
Carbon Steel
Center to Lever Top:
Not Applicable
Collar Width:
27.6 mm
Keyway Depth:
Not Applicable
Bore Width:
Not Applicable
Screw Location from Center:
12.5 mm
Shaft Tolerance:
+0.000/-0.013 mm
Mount Hole Thread Size:
Not Applicable
Bore Diameter:
16 mm
Collar Construction:
2-Piece
Handle Material Finish:
Not Applicable
Collar Material Grade:
1215
Collar Material Finish:
Black Oxide
Thread Direction:
Not Applicable
Shaft Locking Type:
Clamp On
Lever Length:
Not Applicable
Clearance Diameter:
39.3 mm
Package Quantity:
1
