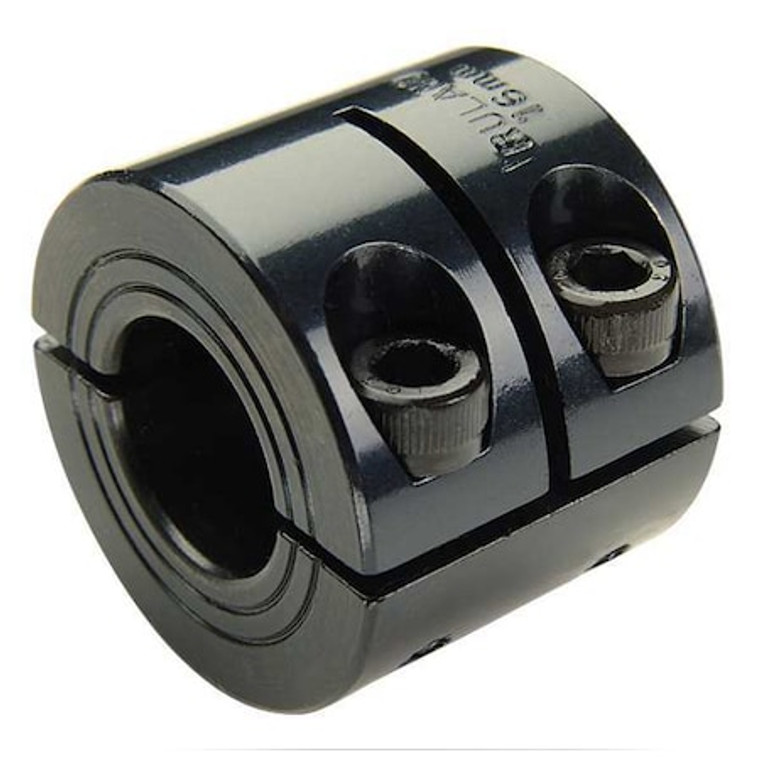

Shaft Collar, Clamp, 2Pc, 12mm, Steel - MWSP-12-F

Shaft Collar, Clamp, 2Pc, 12mm, Steel - MWSP-12-F

Ruland
SKU:
MWSP-12-F
|
UPC:
634529107102
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 12 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Clearance Diameter 32 mm, Collar Width 23.6 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
12 mm
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
28 mm
Dimension Type:
Metric
Width:
24 mm
Screw Size:
M4
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
32 mm
Screw Material:
Alloy Steel
System of Measurement:
Metric
Shaft Locking Type - Couplings:
2 Piece Clamp
Bore Type - Collars:
Plain Bore
Item - Shaft Collars:
Shaft Collar
Material - Collars:
Black Oxide 1215 Lead Free Steel
Item:
Shaft Collar
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Width Tolerance:
+0.076/-0.254 mm
Screw Seating Torque:
4.6 N-m
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.050/+0.012 mm
Collar Width:
23.6 mm
Screw Thread Size:
M4
Handle Color:
Not Applicable
Screw Material Finish:
Black Oxide
Bore Diameter:
12 mm
Component Mount Type:
Not Applicable
Bore Thread Size:
Not Applicable
Maximum Operating Temperature:
176 Degrees C
Thread Direction:
Not Applicable
Collar Construction:
2-Piece
Collar Outside Diameter:
28 mm
Flat to Bore:
Not Applicable
Keyway Depth:
Not Applicable
Center to Lever Top:
Not Applicable
Included Screws:
(4) Hex Socket Cap Screw
Lever Part Number:
Not Applicable
Bore Type:
Round
Collar Material:
Carbon Steel
Lever Height:
Not Applicable
Screw Location from Center:
10.01 mm
Shaft Locking Type:
Clamp On
Collar Material Finish:
Black Oxide
Bore Width:
Not Applicable
Handle Material:
Not Applicable
Shaft Tolerance:
+0.000/-0.013 mm
Inside Height to Flat:
Not Applicable
Clearance Diameter:
32 mm
Resistance Properties:
Not Applicable
Keyway Width:
Not Applicable
Lever Length:
Not Applicable
Collar Material Grade:
1215
For Shaft Diameter:
12 mm
Mount Hole Thread Size:
Not Applicable
Minimum Operating Temperature:
-40 Degrees C
Handle Material Finish:
Not Applicable
Package Quantity:
1
