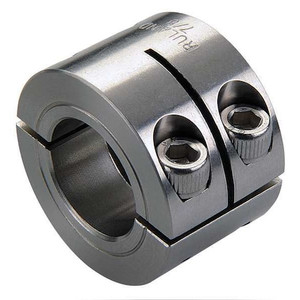

Shaft Collar, Clamp, 2Pc, 12mm, 303 SS - MWSP-12-SS

Shaft Collar, Clamp, 2Pc, 12mm, 303 SS - MWSP-12-SS

Ruland
SKU:
MWSP-12-SS
|
UPC:
634529107799
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 12 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Clearance Diameter 32 mm, Collar Width 23.6 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
12 mm
Material:
303 Stainless Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
28 mm
Dimension Type:
Metric
Width:
24 mm
Screw Size:
M4
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
32 mm
Screw Material:
Stainless Steel
Material - Collars:
303 Stainless Steel
Bore Type - Collars:
Plain Bore
System of Measurement:
Metric
Shaft Locking Type - Couplings:
2 Piece Clamp
Item - Shaft Collars:
Shaft Collar
Item:
Shaft Collar
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Distance Across Flats:
Not Applicable
Screw Seating Torque:
2.5 N-m
Bore Tolerance:
+0.050/+0.012 mm
Width Tolerance:
+0.076/-0.254 mm
Collar Outside Diameter:
28 mm
Collar Material Finish:
Bright
Flat to Bore:
Not Applicable
Keyway Depth:
Not Applicable
Inside Height to Flat:
Not Applicable
Maximum Operating Temperature:
176 Degrees C
Clearance Diameter:
32 mm
Shaft Locking Type:
Clamp On
For Shaft Diameter:
12 mm
Collar Material:
Stainless Steel
Thread Direction:
Not Applicable
Keyway Width:
Not Applicable
Screw Material Finish:
Bright
Bore Diameter:
12 mm
Collar Material Grade:
303
Lever Height:
Not Applicable
Resistance Properties:
Corrosion Resistant
Mount Hole Thread Size:
Not Applicable
Handle Color:
Not Applicable
Lever Length:
Not Applicable
Shaft Tolerance:
+0.000/-0.013 mm
Screw Material Grade:
304
Screw Thread Size:
M4
Included Screws:
(4) Hex Socket Cap Screw
Component Mount Type:
Not Applicable
Handle Material:
Not Applicable
Collar Construction:
2-Piece
Bore Type:
Round
Bore Thread Size:
Not Applicable
Minimum Operating Temperature:
-40 Degrees C
Lever Part Number:
Not Applicable
Center to Lever Top:
Not Applicable
Screw Location from Center:
10.01 mm
Handle Material Finish:
Not Applicable
Collar Width:
23.6 mm
Bore Width:
Not Applicable
Package Quantity:
1
