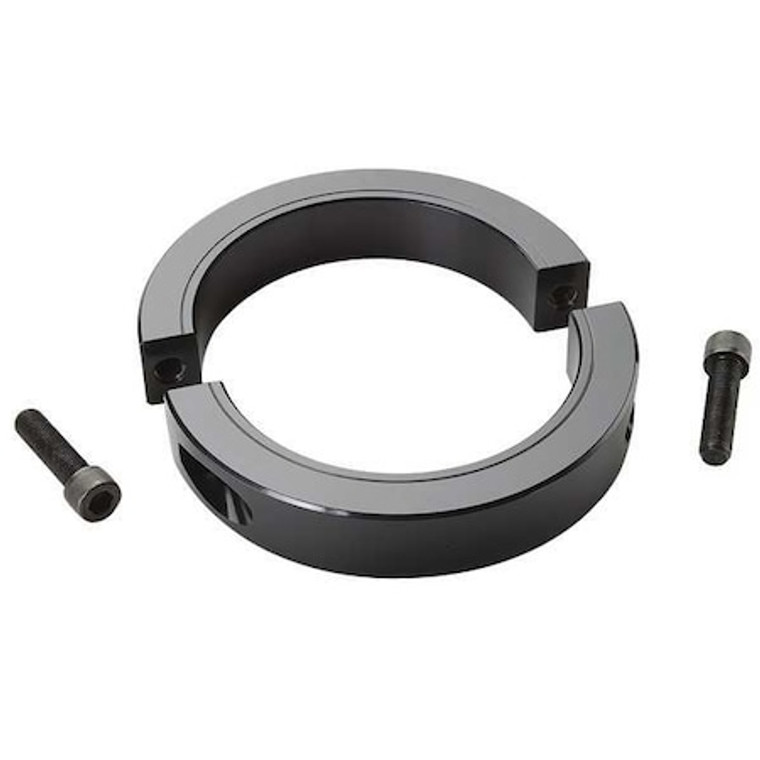

Shaft Collar, Clamp, 2Pc, 115mm, Steel - MSPH-115-F

Shaft Collar, Clamp, 2Pc, 115mm, Steel - MSPH-115-F

Ruland
SKU:
MSPH-115-F
|
UPC:
634529133309
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 115 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 160 mm, Inside Height to Flat Not Applicable, Clearance Diameter 168.5 mm, Collar Width 32 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
115 mm
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
160 mm
Dimension Type:
Metric
Width:
32 mm
Screw Size:
M12 x 40
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
168.5 mm
Screw Material:
Alloy Steel
System of Measurement:
Metric
Material - Collars:
Black Oxide 1215 Lead Free Steel
Item - Shaft Collars:
Shaft Collar
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Shaft Collar
Bore Type - Collars:
Plain Bore
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Bore Tolerance:
+0.102/-0.000 mm
Distance Across Flats:
Not Applicable
Screw Seating Torque:
135 N-m
Width Tolerance:
+0.076/-0.254 mm
Handle Color:
Not Applicable
Keyway Width:
Not Applicable
Bore Width:
Not Applicable
Screw Location from Center:
71.5 mm
Thread Direction:
Not Applicable
Clearance Diameter:
168.5 mm
Collar Material Grade:
1215
Collar Construction:
2-Piece
Center to Lever Top:
Not Applicable
Component Mount Type:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Screw Material Finish:
Black Oxide
Lever Length:
Not Applicable
Bore Type:
Round
Maximum Operating Temperature:
176 Degrees C
Bore Thread Size:
Not Applicable
Shaft Tolerance:
+0.000/-0.025 mm
Handle Material Finish:
Not Applicable
Handle Material:
Not Applicable
Flat to Bore:
Not Applicable
Keyway Depth:
Not Applicable
Minimum Operating Temperature:
-40 Degrees C
Bore Diameter:
115 mm
Included Screws:
(2) Hex Socket Cap Screw
Lever Part Number:
Not Applicable
Lever Height:
Not Applicable
Collar Material:
Carbon Steel
Collar Material Finish:
Black Oxide
For Shaft Diameter:
115 mm
Screw Thread Size:
M12x40
Resistance Properties:
Not Applicable
Collar Outside Diameter:
160 mm
Inside Height to Flat:
Not Applicable
Shaft Locking Type:
Clamp On
Collar Width:
32 mm
Package Quantity:
1
