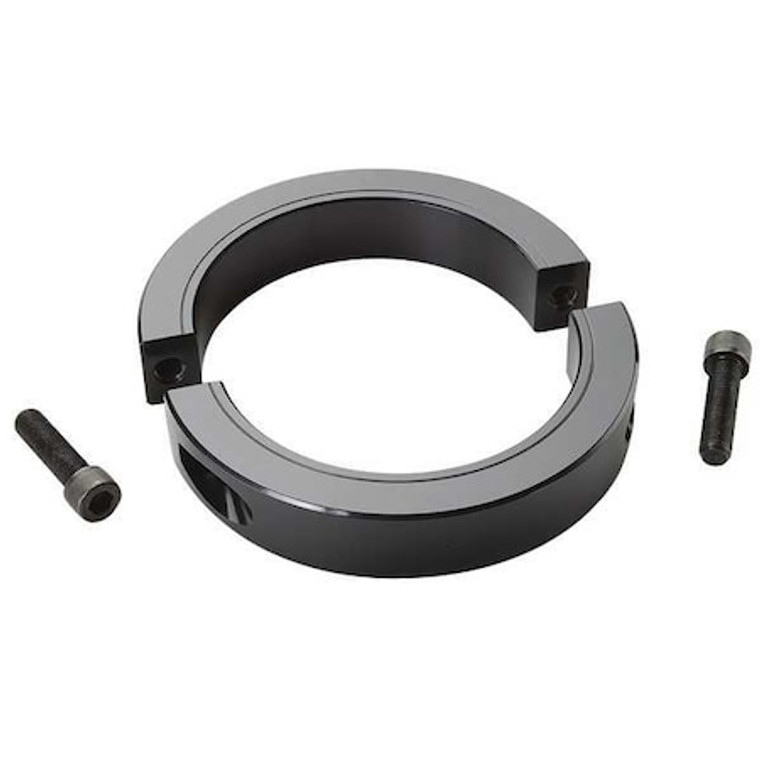

Shaft Collar, Clamp, 2Pc, 105mm, Steel - MSPH-105-F

Shaft Collar, Clamp, 2Pc, 105mm, Steel - MSPH-105-F

Ruland
SKU:
MSPH-105-F
|
UPC:
634529133286
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 105 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 150 mm, Inside Height to Flat Not Applicable, Clearance Diameter 159.2 mm, Collar Width 32 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
105 mm
Material:
Black Oxide 1215 Lead Free Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
150 mm
Dimension Type:
Metric
Width:
32 mm
Screw Size:
M12 x 40
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
159.2 mm
Screw Material:
Alloy Steel
Bore Type - Collars:
Plain Bore
System of Measurement:
Metric
Item:
Shaft Collar
Item - Shaft Collars:
Shaft Collar
Material - Collars:
Black Oxide 1215 Lead Free Steel
Shaft Locking Type - Couplings:
2 Piece Clamp
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Width Tolerance:
+0.076/-0.254 mm
Screw Seating Torque:
135 N-m
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.102/-0.000 mm
Screw Material Finish:
Black Oxide
Inside Height to Flat:
Not Applicable
Collar Construction:
2-Piece
Handle Material Finish:
Not Applicable
Center to Lever Top:
Not Applicable
For Shaft Diameter:
105 mm
Lever Length:
Not Applicable
Shaft Locking Type:
Clamp On
Clearance Diameter:
159.2 mm
Bore Width:
Not Applicable
Collar Material:
Carbon Steel
Collar Material Finish:
Black Oxide
Component Mount Type:
Not Applicable
Collar Material Grade:
1215
Keyway Width:
Not Applicable
Resistance Properties:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Lever Part Number:
Not Applicable
Handle Color:
Not Applicable
Screw Thread Size:
M12x40
Screw Location from Center:
66.5 mm
Handle Material:
Not Applicable
Flat to Bore:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Bore Type:
Round
Collar Width:
32 mm
Minimum Operating Temperature:
-40 Degrees C
Keyway Depth:
Not Applicable
Lever Height:
Not Applicable
Bore Thread Size:
Not Applicable
Shaft Tolerance:
+0.000/-0.025 mm
Thread Direction:
Not Applicable
Collar Outside Diameter:
150 mm
Bore Diameter:
105 mm
Maximum Operating Temperature:
176 Degrees C
Package Quantity:
1
