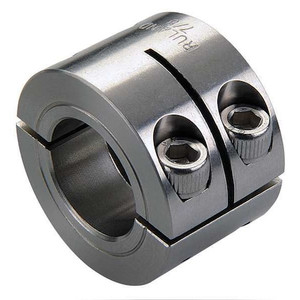

Shaft Collar, Clamp, 2Pc, 1/4 In, 303 SS - WSP-4-SS

Shaft Collar, Clamp, 2Pc, 1/4 In, 303 SS - WSP-4-SS

Ruland
SKU:
WSP-4-SS
|
UPC:
634529076163
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 1/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 5/8 in, Inside Height to Flat Not Applicable, Clearance Diameter 0.77 in, Collar Width 5/8 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
1/4 in
Material:
303 Stainless Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
5/8 in
Dimension Type:
Inch
Width:
20 mm
Screw Size:
#4-40
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
26.3 mm
Screw Material:
Stainless Steel
Bore Type - Collars:
Plain Bore
Item:
Shaft Collar
Item - Shaft Collars:
Shaft Collar
Material - Collars:
303 Stainless Steel
Shaft Locking Type - Couplings:
2 Piece Clamp
System of Measurement:
Inch
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Width Tolerance:
+0.003/-0.010 in
Screw Seating Torque:
8 lb-in
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.002/+0.0005 in
Lever Part Number:
Not Applicable
Bore Diameter:
1/4 in
Center to Lever Top:
Not Applicable
Keyway Width:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Shaft Locking Type:
Clamp On
Thread Direction:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Collar Material Grade:
303
Collar Width:
5/8 in
Included Screws:
(4) Hex Socket Cap Screw
Screw Material Grade:
304
Keyway Depth:
Not Applicable
Handle Material Finish:
Not Applicable
Component Mount Type:
Not Applicable
For Shaft Diameter:
1/4 in
Maximum Operating Temperature:
350 Degrees F
Collar Material:
Stainless Steel
Lever Height:
Not Applicable
Collar Outside Diameter:
5/8 in
Handle Color:
Not Applicable
Bore Type:
Round
Flat to Bore:
Not Applicable
Collar Material Finish:
Bright
Screw Location from Center:
0.21 in
Bore Width:
Not Applicable
Resistance Properties:
Corrosion Resistant
Bore Thread Size:
Not Applicable
Screw Thread Size:
#4-40
Screw Material Finish:
Bright
Handle Material:
Not Applicable
Inside Height to Flat:
Not Applicable
Collar Construction:
2-Piece
Clearance Diameter:
0.77 in
Shaft Tolerance:
+0.0000/-0.0005 in
Lever Length:
Not Applicable
Package Quantity:
1
