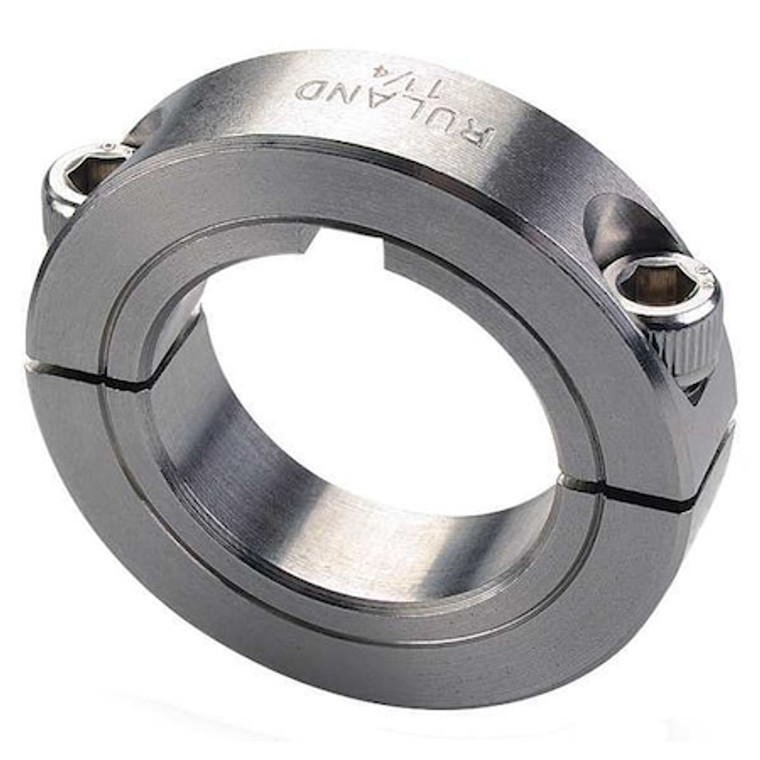

Shaft Collar, Clamp, 2Pc, 1-3/4 In, 303 SS - SPK-28-SS

Shaft Collar, Clamp, 2Pc, 1-3/4 In, 303 SS - SPK-28-SS

Ruland
SKU:
SPK-28-SS
|
UPC:
634529134986
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Round Keyed, Bore Diameter 1 3/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 2 3/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 3.05 in, Collar Width 11/16 in, Collar Material Stainless Steel, Keyway Width 3/8 in, Collar Material Grade 303, Keyway Depth 3/16 in, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
1 3/4 in
Material:
303 Stainless Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
2 3/4 in
Dimension Type:
Inch
Width:
11/16 in
Screw Size:
5/16-24"
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
3.046 in
Screw Material:
Stainless Steel
Shaft Locking Type - Couplings:
2 Piece Clamp with Keyway
Item - Shaft Collars:
Shaft Collar
Bore Type - Collars:
Plain Bore
Material - Collars:
303 Stainless Steel
System of Measurement:
Inch
Item:
Shaft Collar
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Width Tolerance:
+0.003/-0.010 in
Bore Tolerance:
+0.002/+0.0005 in
Screw Seating Torque:
190 lb-in
Distance Across Flats:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Bore Type:
Round Keyed
Mount Hole Thread Size:
Not Applicable
Collar Material Finish:
Bright
Flat to Bore:
Not Applicable
Bore Diameter:
1 3/4 in
Shaft Locking Type:
Clamp On
Screw Thread Size:
5/16-24"
Keyway Width:
3/8 in
Collar Width:
11/16 in
Thread Direction:
Not Applicable
Lever Height:
Not Applicable
Bore Width:
Not Applicable
Clearance Diameter:
3.05 in
Screw Location from Center:
1.13 in
Minimum Operating Temperature:
-40 Degrees F
Lever Part Number:
Not Applicable
Bore Thread Size:
Not Applicable
Collar Material Grade:
303
Maximum Operating Temperature:
350 Degrees F
For Shaft Diameter:
1 3/4 in
Resistance Properties:
Corrosion Resistant
Center to Lever Top:
Not Applicable
Handle Material Finish:
Not Applicable
Screw Material Grade:
304
Component Mount Type:
Not Applicable
Collar Construction:
2-Piece
Collar Material:
Stainless Steel
Shaft Tolerance:
+0.0000/-0.0005 in
Collar Outside Diameter:
2 3/4 in
Handle Material:
Not Applicable
Handle Color:
Not Applicable
Keyway Depth:
3/16 in
Inside Height to Flat:
Not Applicable
Screw Material Finish:
Bright
Lever Length:
Not Applicable
Package Quantity:
1
