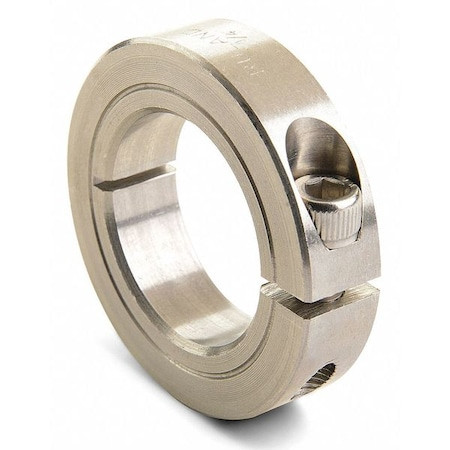

Shaft Collar, Clamp, 1Pc, 75mm, 303 SS - MCL-75-SS

Shaft Collar, Clamp, 1Pc, 75mm, 303 SS - MCL-75-SS

Ruland
SKU:
MCL-75-SS
|
UPC:
634529012857
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 75 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 103 mm, Inside Height to Flat Not Applicable, Clearance Diameter 109.1 mm, Collar Width 19 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
75 mm
Material:
303 Stainless Steel
Number of Pieces:
1
Collar Style:
Clamp
Outside Dia.:
103 mm
Dimension Type:
Metric
Width:
19 mm
Screw Size:
M8 x 25
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
109.1 mm
Screw Material:
Stainless Steel
Bore Type - Collars:
Plain Bore
Material - Collars:
303 Stainless Steel
System of Measurement:
Metric
Item:
Shaft Collar
Item - Shaft Collars:
Shaft Collar
Shaft Locking Type - Couplings:
1 Piece Clamp
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Width Tolerance:
+0.076/-0.254 mm
Distance Across Flats:
Not Applicable
Screw Seating Torque:
23 N-m
Bore Tolerance:
+0.050/+0.012 mm
Handle Color:
Not Applicable
Bore Type:
Round
Flat to Bore:
Not Applicable
Resistance Properties:
Corrosion Resistant
Shaft Locking Type:
Clamp On
Bore Width:
Not Applicable
Inside Height to Flat:
Not Applicable
Lever Height:
Not Applicable
Component Mount Type:
Not Applicable
For Shaft Diameter:
75 mm
Shaft Tolerance:
+0.000/-0.025 mm
Bore Diameter:
75 mm
Maximum Operating Temperature:
176 Degrees C
Lever Length:
Not Applicable
Screw Thread Size:
M8
Collar Outside Diameter:
103 mm
Collar Material Grade:
303
Thread Direction:
Not Applicable
Screw Length:
25 mm
Keyway Depth:
Not Applicable
Clearance Diameter:
109.1 mm
Minimum Operating Temperature:
-40 Degrees C
Screw Location from Center:
44.5 mm
Handle Material Finish:
Not Applicable
Included Screws:
(1) Hex Socket Cap Screw
Collar Construction:
1-Piece
Lever Part Number:
Not Applicable
Handle Material:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Center to Lever Top:
Not Applicable
Collar Material Finish:
Bright
Screw Material Grade:
304
Collar Material:
Stainless Steel
Bore Thread Size:
Not Applicable
Collar Width:
19 mm
Screw Material Finish:
Bright
Keyway Width:
Not Applicable
Package Quantity:
1
