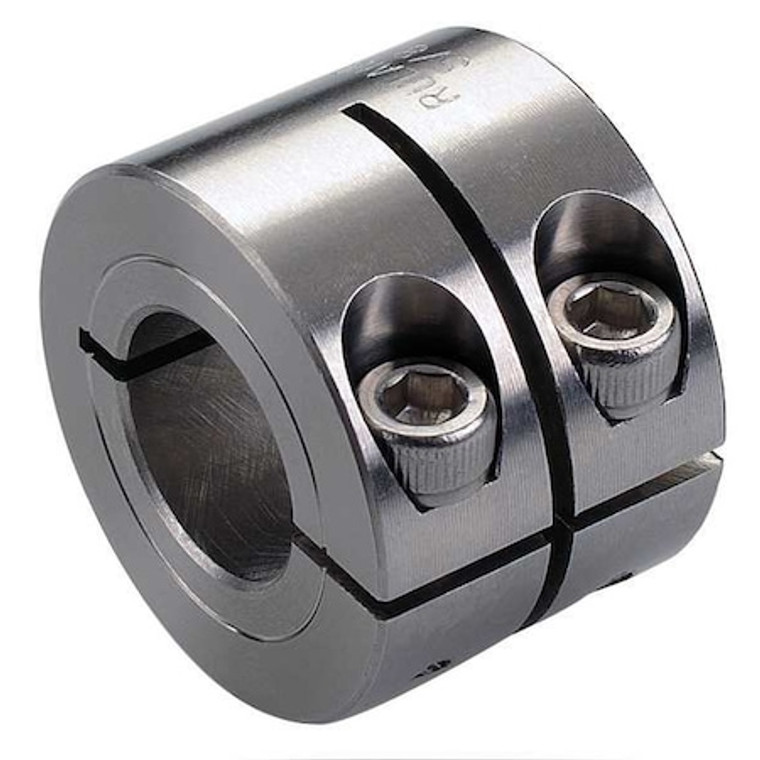

Shaft Collar, Clamp, 1Pc, 20mm, 303 SS - MWCL-20-SS

Shaft Collar, Clamp, 1Pc, 20mm, 303 SS - MWCL-20-SS

Ruland
SKU:
MWCL-20-SS
|
UPC:
634529107829
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Clearance Diameter 47.4 mm, Collar Width 31.6 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
20 mm
Material:
303 Stainless Steel
Number of Pieces:
1
Collar Style:
Clamp
Outside Dia.:
40 mm
Dimension Type:
Metric
Width:
33 mm
Screw Size:
M6
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
47.4 mm
Screw Material:
Stainless Steel
Bore Type - Collars:
Plain Bore
System of Measurement:
Metric
Item - Shaft Collars:
Shaft Collar
Shaft Locking Type - Couplings:
1 Piece Clamp
Material - Collars:
303 Stainless Steel
Item:
Shaft Collar
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Screw Seating Torque:
9.6 N-m
Distance Across Flats:
Not Applicable
Bore Tolerance:
+0.050/+0.012 mm
Width Tolerance:
+0.076/-0.254 mm
Collar Width:
31.6 mm
Lever Length:
Not Applicable
Keyway Depth:
Not Applicable
Shaft Locking Type:
Clamp On
Minimum Operating Temperature:
-40 Degrees C
Bore Thread Size:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Handle Material Finish:
Not Applicable
Collar Material:
Stainless Steel
Screw Material Grade:
304
Handle Material:
Not Applicable
Collar Construction:
1-Piece
Bore Diameter:
20 mm
Shaft Tolerance:
+0.000/-0.013 mm
Lever Part Number:
Not Applicable
Flat to Bore:
Not Applicable
Inside Height to Flat:
Not Applicable
For Shaft Diameter:
20 mm
Collar Material Grade:
303
Keyway Width:
Not Applicable
Resistance Properties:
Corrosion Resistant
Handle Color:
Not Applicable
Thread Direction:
Not Applicable
Screw Material Finish:
Bright
Collar Outside Diameter:
40 mm
Screw Location from Center:
14.73 mm
Lever Height:
Not Applicable
Screw Thread Size:
M6
Bore Width:
Not Applicable
Center to Lever Top:
Not Applicable
Clearance Diameter:
47.4 mm
Component Mount Type:
Not Applicable
Collar Material Finish:
Bright
Included Screws:
(2) Hex Socket Cap Screw
Maximum Operating Temperature:
176 Degrees C
Bore Type:
Round
Package Quantity:
1
