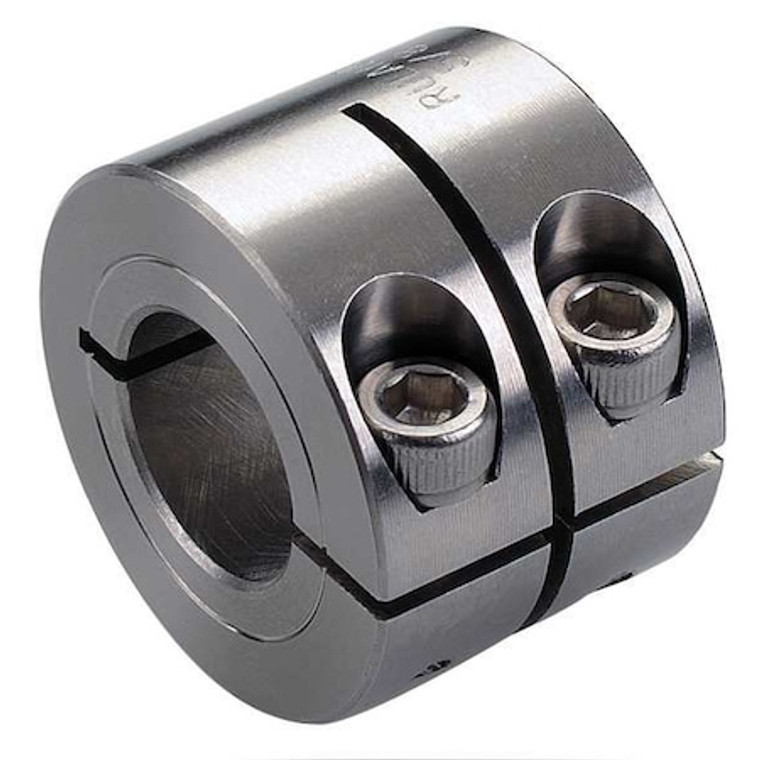

Shaft Collar, Clamp, 1Pc, 1 In, 303 SS - WCL-16-SS

Shaft Collar, Clamp, 1Pc, 1 In, 303 SS - WCL-16-SS

Ruland
SKU:
WCL-16-SS
|
UPC:
634529075937
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 1 in, Bore Thread Size Not Applicable, Collar Outside Diameter 1 3/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 2.03 in, Collar Width 1 1/16 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
1 in
Material:
303 Stainless Steel
Number of Pieces:
1
Collar Style:
Clamp
Outside Dia.:
1 3/4 in
Dimension Type:
Inch
Width:
9 mm
Screw Size:
1/4-28"
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
22.4 mm
Screw Material:
Stainless Steel
System of Measurement:
Inch
Bore Type - Collars:
Plain Bore
Shaft Locking Type - Couplings:
1 Piece Clamp
Material - Collars:
303 Stainless Steel
Item:
Shaft Collar
Item - Shaft Collars:
Shaft Collar
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Screw Seating Torque:
110 lb-in
Bore Tolerance:
+0.002/+0.0005 in
Width Tolerance:
+0.003/-0.010 in
Distance Across Flats:
Not Applicable
Resistance Properties:
Corrosion Resistant
Shaft Locking Type:
Clamp On
Screw Thread Size:
1/4-28"
Handle Material:
Not Applicable
Bore Diameter:
1 in
Mount Hole Thread Size:
Not Applicable
Clearance Diameter:
2.03 in
Screw Location from Center:
0.68 in
Handle Color:
Not Applicable
Maximum Operating Temperature:
350 Degrees F
Collar Construction:
1-Piece
For Shaft Diameter:
1 in
Collar Material Finish:
Bright
Center to Lever Top:
Not Applicable
Screw Material Finish:
Bright
Screw Material Grade:
304
Inside Height to Flat:
Not Applicable
Keyway Depth:
Not Applicable
Bore Thread Size:
Not Applicable
Flat to Bore:
Not Applicable
Collar Width:
1 1/16 in
Thread Direction:
Not Applicable
Lever Part Number:
Not Applicable
Collar Material Grade:
303
Collar Material:
Stainless Steel
Included Screws:
(2) Hex Socket Cap Screw
Keyway Width:
Not Applicable
Bore Width:
Not Applicable
Handle Material Finish:
Not Applicable
Component Mount Type:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Shaft Tolerance:
+0.0000/-0.0005 in
Lever Length:
Not Applicable
Collar Outside Diameter:
1 3/4 in
Bore Type:
Round
Lever Height:
Not Applicable
Package Quantity:
1
