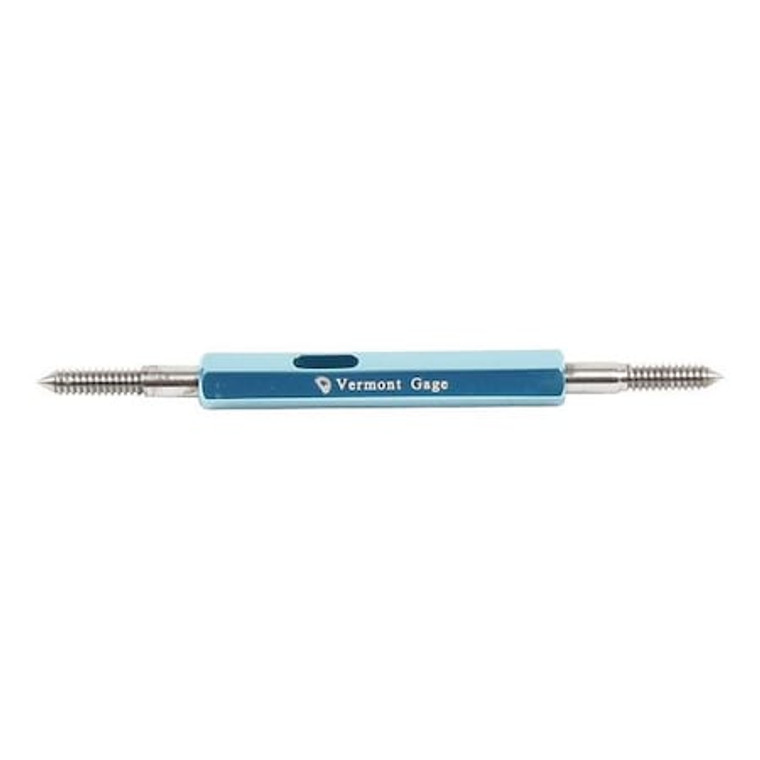

Screw Thread Insert Gage Go/NoGo, 3B - 321121050

Screw Thread Insert Gage Go/NoGo, 3B - 321121050

Vermont Gage
SKU:
321121050
|
UPC:
662631404253
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded STI Plug Gauge, Dimension Type Inch, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 0, Thread Class 3B, Thread Size #10-32, Thread Type UNF, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - Go Member 13/32 in, Gauge Length - No-Go Member 9/32 in, Gauge Material Tool Steel, Handle Color Blue, Handle Length 3 in, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability, Pitch Diameter - Go Member 0.2103 in
Additional Information
Country of Origin:
United States
Item:
Work Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
3B
Material:
Tool Steel - Rc 70/72
Finish:
Chrome Plated
Overall Length:
3-3/16";Thread Size=#10-32"
Thread Type:
UNF
Tolerance:
Class X
Handle Length:
3";Application=For Calibration of Measuring Equipment or to Gage Parts Directly"
Includes:
Certificate of Accuracy with NIST Traceable
Meets/Exceeds:
ASME B1.2 (Unified Inch Screw Threads); ISO 17025
Handle Color:
Blue
Gauge Material:
Tool Steel
Gauge Finish:
Chrome Plated
Gauge Length - Go Member:
13/32 in
Pitch Diameter - No-Go Member:
0.2123 in
Pitch Diameter - Go Member:
0.2103 in
Hardness:
RC 70-72
Thread Direction:
Right Hand
Handle Design:
Double End
Gauge Length - No-Go Member:
9/32 in
Standards:
ASME B18.29.1
Included Handle:
Taperlock 0
Included Certification:
Certificate of Accuracy with NIST Traceability
Thread Class:
3B
Dimension Type:
Inch
Gauge Type:
Go/No-Go (Plus/Minus)
Tolerance Class:
X
Package Quantity:
1
