- Country of Origin:
- United States
- Drill Bit Grouping:
- Drill Bit
- Item:

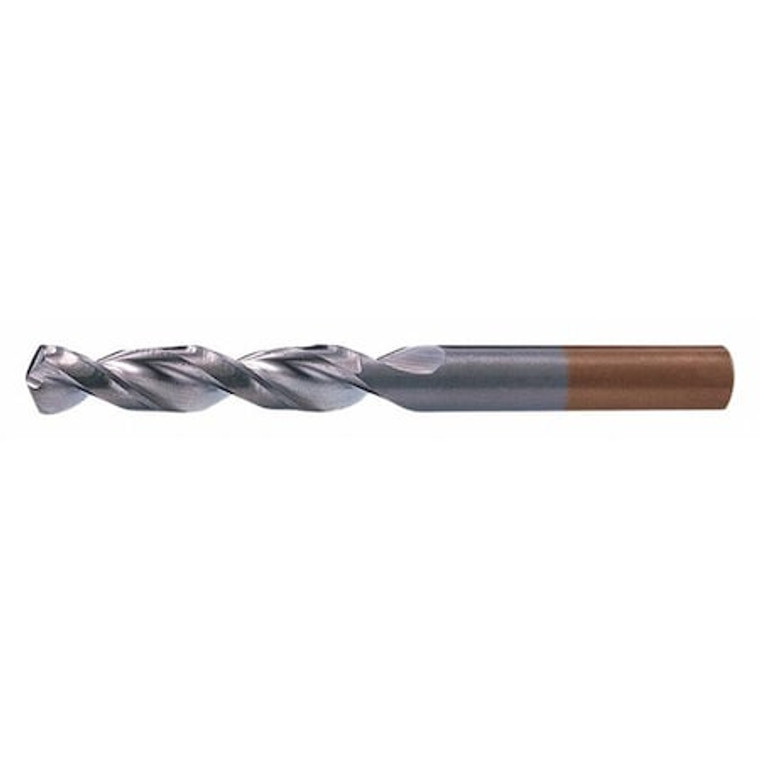

- Screw Machine Drill Bit
- Drill Bit Dimension Type:
- Fractional Inch
- Drill Bit Size:
- 9/16 in
- Decimal Equivalent:
- 0.5625
- Drill Bit Point Angle:
- 135 Degrees
- Drill Bit Material:
- Cobalt
- Drill Bit Finish:
- TiCN
- Shank Type:
- Straight
- Flute Type:
- Parabolic
- Shank Dia.:
- 9/16 in
- Overall Length:
- 4 in
- Cutting Direction:
- Right Hand
- Number of Flutes:
- 2
- Flute Length:
- 2 1/2 in
- Maximum Drilling Depth:
- 2 1/2 in
- Number of Pieces:
- 0
- Point Type:
- Split
- List Number:
- 2175-TC
- Coolant Through:
- No
- Shank Shape:
- Straight
- Bit Dia.:
- 9/16";Shank Size=9/16""
- Standards:
- ASME B94.11M-1993
- Drilling Length:
- 2-1/2";Sizes Included=9/16""
- Application:
- For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
- Grade:
- High Performance
- Depth x Dia. Ratio:
- 10xD
- Coolant Fed:
- Non-Coolant Through
- Depth:
- Dia. Ratio
- Series:
- 2175-TC
- Spiral Direction:
- Right Hand
- Secondary Material Application ISO Code:
- K, M
- Drill Length Class:
- Screw Machine Length
- Finish - Machining:
- TiCN
- Drill Point Length:
- 0.1165 in
- Secondary Material Application:
- Cast Iron, Stainless Steel
- Shank Length:
- 1 1/2 in
- Drill Bit Point Type:
- Split Point
- Shank Type - Machining:
- Straight
- Material Grade - Machining:
- M42
- Drill Diameter Tolerance:
- +0.0000 in /-0.0012 in
- Primary Material Application:
- Aluminum, Brass, Bronze, Copper, Steel
- Primary Material Application ISO Code:
- N, P
- Material - Machining:
- Cobalt
- Measurement System:
- Fractional Inch
- Helix Angle:
- 40 Degrees
- Package Quantity:
- 1
