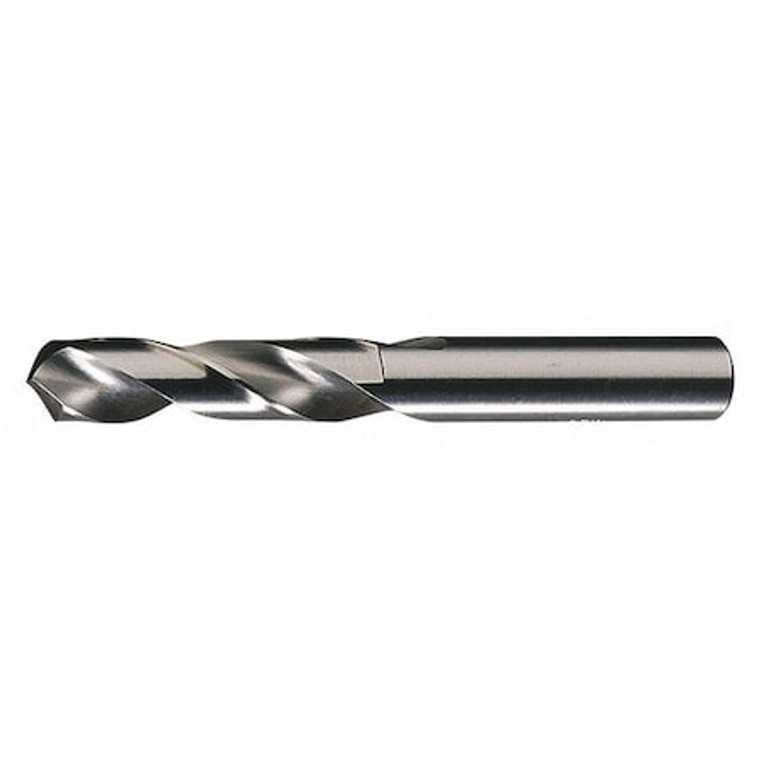

Screw Machine Drill Bit, 53/64 in Size, 118 Degrees Point Angle, High Speed Steel, Bright Finish - C04649

Screw Machine Drill Bit, 53/64 in Size, 118 Degrees Point Angle, High Speed Steel, Bright Finish - C04649

Cleveland
SKU:
C04649
|
UPC:
697334046493
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Screw Machine Drill Bit, Drill Bit Size 53/64 in, Drill Bit Point Angle 118 Degrees , Conventional Point, High Speed Steel, Bright (Uncoated), Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.8281
Additional Information
Country of Origin:
United States
Drill Bit Grouping:
Drill Bit
Item:
Screw Machine Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
53/64 in
Decimal Equivalent:
0.8281
Drill Bit Point Angle:
118 Degrees
Drill Bit Material:
High Speed Steel
Drill Bit Finish:
Bright
Shank Type:
Straight
Flute Type:
Spiral
Shank Dia.:
53/64 in
Overall Length:
5 3/8 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
3 1/2 in
Maximum Drilling Depth:
3 1/2 in
Number of Pieces:
0
Grade:
General Purpose
Drilling Length:
3-1/2";Bit Dia.=53/64""
Shank Size:
53/64";Point Type=Radial"
List Number:
2120
Shank Shape:
Straight
Coolant Through:
No
Application:
For Drilling Alloy Steel, Aluminum, Brass, Carbon Steel, Cast Iron, Copper Alloys
Standards:
ASME B94.11M-1993
Sizes Included:
53/64";Depth x Dia. Ratio=4xD"
Depth:
Dia. Ratio
Coolant Fed:
Non-Coolant Through
Series:
2120
Measurement System:
Fractional Inch
Shank Length:
1 7/8 in
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Secondary Material Application ISO Code:
P
Spiral Direction:
Right Hand
Secondary Material Application:
Alloy Steel, Low Carbon Steel
Drill Bit Point Type:
Conventional Point
Primary Material Application ISO Code:
N
Helix Angle:
28 Degrees
Material - Machining:
High Speed Steel
Finish - Machining:
Bright (Uncoated)
Shank Type - Machining:
Straight
Primary Material Application:
Aluminum, Brass, Bronze, Copper
Drill Point Length:
0.2488 in
Material Grade - Machining:
General Purpose
Drill Length Class:
Screw Machine Length
Package Quantity:
1
