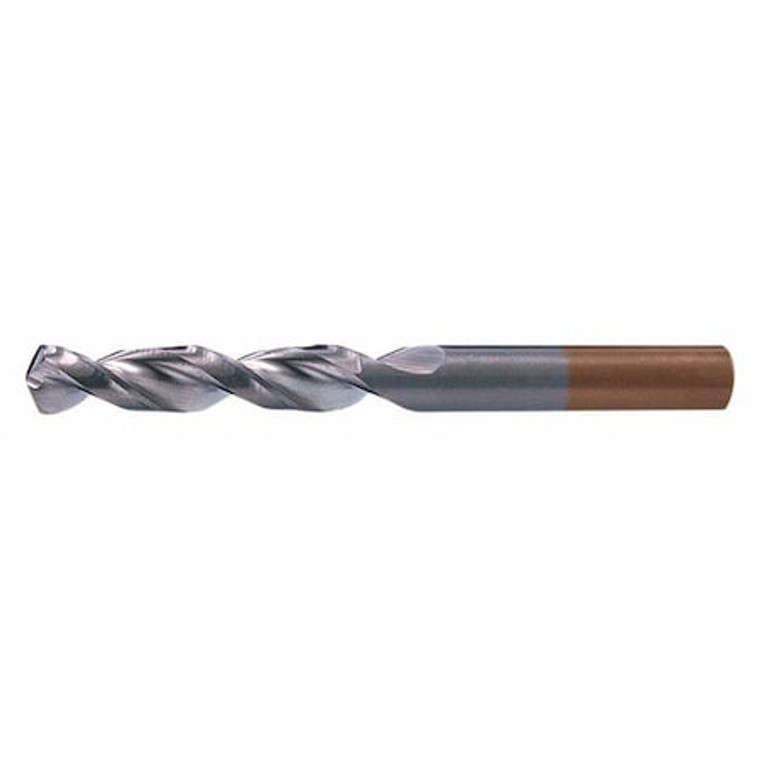

Screw Machine Drill Bit, 41/64 in Size, 135 Degrees Point Angle, Cobalt, TiCN Finish - C15287

Screw Machine Drill Bit, 41/64 in Size, 135 Degrees Point Angle, Cobalt, TiCN Finish - C15287

Cleveland
SKU:
C15287
|
UPC:
697334152873
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Screw Machine Drill Bit, Drill Bit Size 41/64 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiCN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.6406
Additional Information
Country of Origin:
United States
Drill Bit Grouping:
Drill Bit
Item:
Screw Machine Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
41/64 in
Decimal Equivalent:
0.6406
Drill Bit Point Angle:
135 Degrees
Drill Bit Material:
Cobalt
Drill Bit Finish:
TiCN
Shank Type:
Straight
Flute Type:
Parabolic
Shank Dia.:
41/64 in
Overall Length:
4 1/2 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
2 7/8 in
Maximum Drilling Depth:
2 7/8 in
Number of Pieces:
0
List Number:
2175-TC
Application:
For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
Shank Size:
41/64";Shank Shape=Straight"
Coolant Through:
No
Bit Dia.:
41/64";Sizes Included=41/64""
Grade:
High Performance
Point Type:
Split
Standards:
ASME B94.11M-1993
Drilling Length:
2-7/8";Depth x Dia. Ratio=10xD"
Depth:
Dia. Ratio
Coolant Fed:
Non-Coolant Through
Series:
2175-TC
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Primary Material Application:
Aluminum, Brass, Bronze, Copper, Steel
Shank Type - Machining:
Straight
Drill Bit Point Type:
Split Point
Drill Length Class:
Screw Machine Length
Finish - Machining:
TiCN
Material Grade - Machining:
M42
Drill Point Length:
0.1327 in
Shank Length:
1 5/8 in
Secondary Material Application:
Cast Iron, Stainless Steel
Helix Angle:
40 Degrees
Spiral Direction:
Right Hand
Material - Machining:
Cobalt
Primary Material Application ISO Code:
N, P
Measurement System:
Fractional Inch
Secondary Material Application ISO Code:
K, M
Package Quantity:
1
