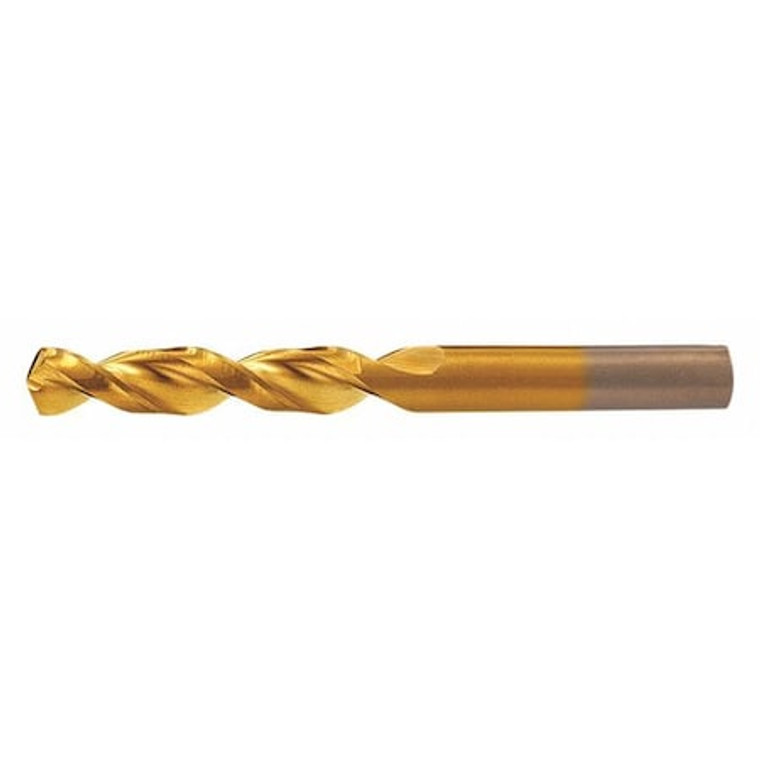

Screw Machine Drill Bit, 39/64 in Size, 135 Degrees Point Angle, Cobalt, TiN Finish - C14356

Screw Machine Drill Bit, 39/64 in Size, 135 Degrees Point Angle, Cobalt, TiN Finish - C14356

Cleveland
SKU:
C14356
|
UPC:
697334143567
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Screw Machine Drill Bit, Drill Bit Size 39/64 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.6094
Additional Information
Country of Origin:
United States
Drill Bit Grouping:
Drill Bit
Item:
Screw Machine Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
39/64 in
Decimal Equivalent:
0.6094
Drill Bit Point Angle:
135 Degrees
Drill Bit Material:
Cobalt
Drill Bit Finish:
TiN
Shank Type:
Straight
Flute Type:
Parabolic
Standards:
ASME B94.11M-1993
Coolant Through:
No
Application:
For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
Number of Flutes:
2
Number of Pieces:
0
Flute Length:
2 3/4 in
Grade:
High Performance
Drilling Length:
2-3/4";Shank Shape=Straight"
Sizes Included:
39/64";Bit Dia.=39/64""
Cutting Direction:
Right Hand
List Number:
2175-TN
Shank Size:
39/64";Point Type=Split"
Overall Length:
4 1/4 in
Shank Dia.:
39/64 in
Depth x Dia. Ratio:
10xD
Depth:
Dia. Ratio
Coolant Fed:
Non-Coolant Through
Series:
2175-TN
Material - Machining:
Cobalt
Spiral Direction:
Right Hand
Primary Material Application ISO Code:
P
Helix Angle:
40 Degrees
Drill Bit Point Type:
Split Point
Maximum Drilling Depth:
2 3/4 in
Drill Length Class:
Screw Machine Length
Finish - Machining:
TiN
Material Grade - Machining:
M42
Shank Length:
1 1/2 in
Shank Type - Machining:
Straight
Measurement System:
Fractional Inch
Drill Point Length:
0.1262 in
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Primary Material Application:
Steel
Package Quantity:
1
