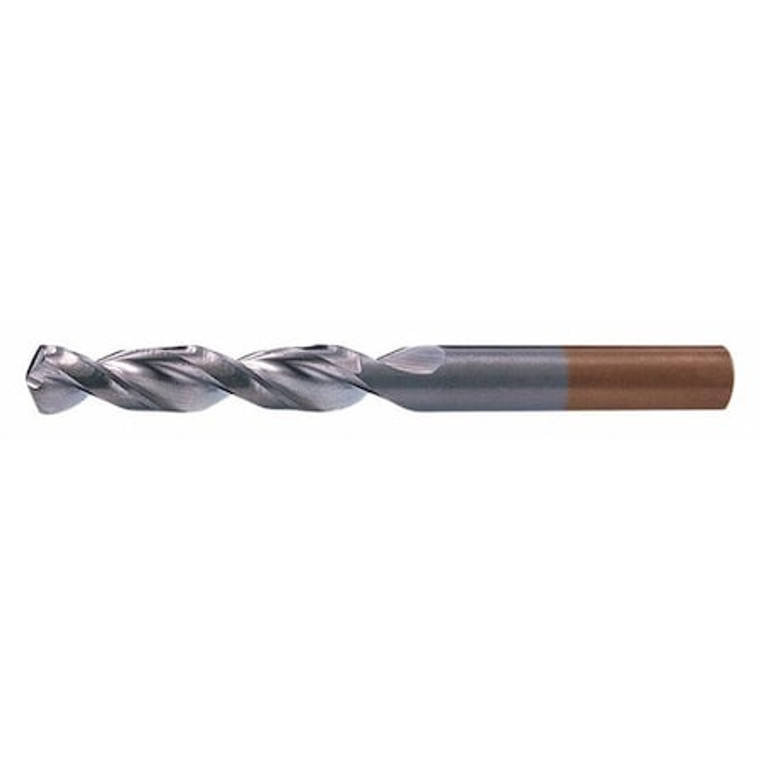

Screw Machine Drill Bit, 35/64 in Size, 135 Degrees Point Angle, Cobalt, TiCN Finish - C15281

Screw Machine Drill Bit, 35/64 in Size, 135 Degrees Point Angle, Cobalt, TiCN Finish - C15281

Cleveland
SKU:
C15281
|
UPC:
697334152811
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Screw Machine Drill Bit, Drill Bit Size 35/64 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiCN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.5469
Additional Information
Country of Origin:
United States
Item:
Screw Machine Drill Bit
Drill Bit Grouping:
Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
35/64 in
Decimal Equivalent:
0.5469
Drill Bit Point Angle:
135 Degrees
Drill Bit Material:
Cobalt
Drill Bit Finish:
TiCN
Shank Type:
Straight
Flute Type:
Parabolic
Shank Dia.:
35/64 in
Overall Length:
4 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
2 1/2 in
Maximum Drilling Depth:
2 1/2 in
Number of Pieces:
0
Bit Dia.:
35/64";Drilling Length=2-1/2""
Sizes Included:
35/64";Standards=ASME B94.11M-1993"
Coolant Through:
No
Shank Size:
35/64";Point Type=Split"
Application:
For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
Grade:
High Performance
List Number:
2175-TC
Shank Shape:
Straight
Depth x Dia. Ratio:
10xD
Coolant Fed:
Non-Coolant Through
Depth:
Dia. Ratio
Series:
2175-TC
Finish - Machining:
TiCN
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Helix Angle:
40 Degrees
Secondary Material Application ISO Code:
K, M
Primary Material Application ISO Code:
N, P
Shank Type - Machining:
Straight
Drill Bit Point Type:
Split Point
Shank Length:
1 1/2 in
Drill Length Class:
Screw Machine Length
Material - Machining:
Cobalt
Spiral Direction:
Right Hand
Measurement System:
Fractional Inch
Drill Point Length:
0.1133 in
Secondary Material Application:
Cast Iron, Stainless Steel
Material Grade - Machining:
M42
Primary Material Application:
Aluminum, Brass, Bronze, Copper, Steel
Package Quantity:
1
