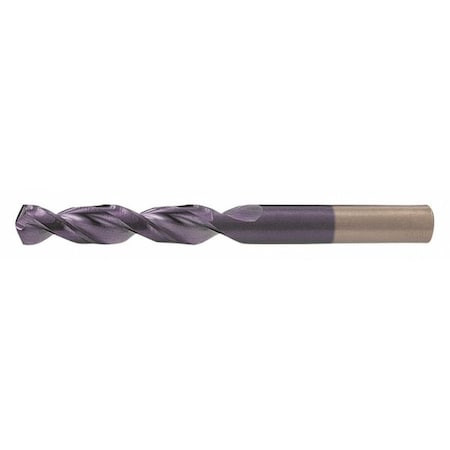

Screw Machine Drill Bit, 35/64 in Size, 135 Degrees Point Angle, Cobalt, TiAlN Finish - C15081

Screw Machine Drill Bit, 35/64 in Size, 135 Degrees Point Angle, Cobalt, TiAlN Finish - C15081

Cleveland
SKU:
C15081
|
UPC:
697334150817
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Screw Machine Drill Bit, Drill Bit Size 35/64 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiAlN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.5469
Additional Information
Country of Origin:
United States
Drill Bit Grouping:
Drill Bit
Item:
Screw Machine Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
35/64 in
Decimal Equivalent:
0.5469
Drill Bit Point Angle:
135 Degrees
Drill Bit Material:
Cobalt
Drill Bit Finish:
TiAlN
Shank Type:
Straight
Flute Type:
Parabolic
Shank Dia.:
35/64 in
Overall Length:
4 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
2 1/2 in
Maximum Drilling Depth:
2 1/2 in
Number of Pieces:
0
Shank Size:
35/64";Bit Dia.=35/64""
Grade:
High Performance
List Number:
2175-TA
Point Type:
Split
Application:
For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
Sizes Included:
35/64";Standards=ASME B94.11M-1993"
Shank Shape:
Straight
Coolant Through:
No
Drilling Length:
2-1/2";Depth x Dia. Ratio=10xD"
Coolant Fed:
Non-Coolant Through
Depth:
Dia. Ratio
Series:
2175-TA
Drill Length Class:
Screw Machine Length
Shank Type - Machining:
Straight
Measurement System:
Fractional Inch
Finish - Machining:
TiAlN
Spiral Direction:
Right Hand
Material - Machining:
Cobalt
Helix Angle:
40 Degrees
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Drill Bit Point Type:
Split Point
Material Grade - Machining:
M42
Shank Length:
1 1/2 in
Primary Material Application ISO Code:
K, M
Drill Point Length:
0.1133 in
Primary Material Application:
Cast Iron, Stainless Steel
Package Quantity:
1
