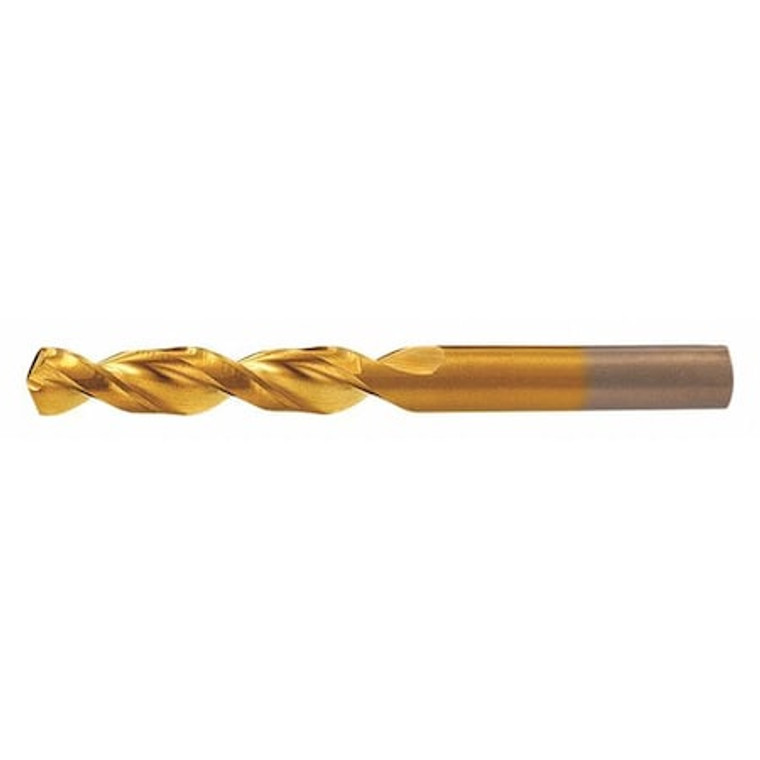

Screw Machine Drill Bit, 17/32 in Size, 135 Degrees Point Angle, Cobalt, TiN Finish - C14351

Screw Machine Drill Bit, 17/32 in Size, 135 Degrees Point Angle, Cobalt, TiN Finish - C14351

Cleveland
SKU:
C14351
|
UPC:
697334143512
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Screw Machine Drill Bit, Drill Bit Size 17/32 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.5312
Additional Information
Country of Origin:
United States
Item:
Screw Machine Drill Bit
Drill Bit Grouping:
Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
17/32 in
Decimal Equivalent:
0.5312
Drill Bit Point Angle:
135 Degrees
Drill Bit Material:
Cobalt
Drill Bit Finish:
TiN
Shank Type:
Straight
Flute Type:
Parabolic
Shank Dia.:
17/32 in
Overall Length:
3 7/8 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
2 3/8 in
Maximum Drilling Depth:
2 3/8 in
Number of Pieces:
0
List Number:
2175-TN
Point Type:
Split
Grade:
High Performance
Shank Shape:
Straight
Drilling Length:
2-3/8";Application=For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy"
Shank Size:
17/32";Coolant Through=No"
Sizes Included:
17/32";Standards=ASME B94.11M-1993"
Bit Dia.:
17/32";Depth x Dia. Ratio=10xD"
Depth:
Dia. Ratio
Coolant Fed:
Non-Coolant Through
Series:
2175-TN
Spiral Direction:
Right Hand
Drill Point Length:
0.11 in
Drill Bit Point Type:
Split Point
Shank Type - Machining:
Straight
Measurement System:
Fractional Inch
Helix Angle:
40 Degrees
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Material Grade - Machining:
M42
Primary Material Application ISO Code:
P
Finish - Machining:
TiN
Shank Length:
1 1/2 in
Primary Material Application:
Steel
Drill Length Class:
Screw Machine Length
Material - Machining:
Cobalt
Package Quantity:
1
