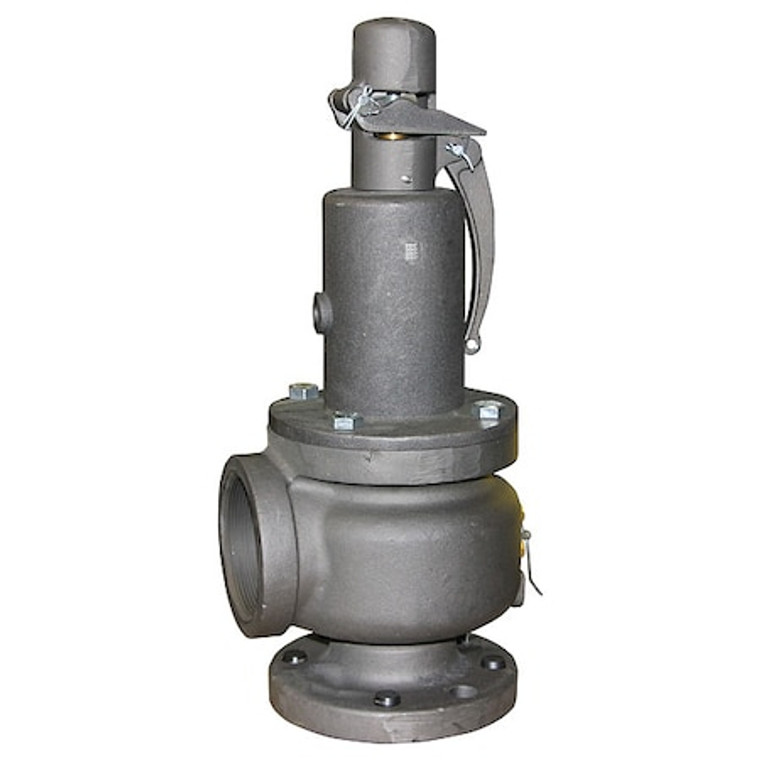

Safety Relief Valve, 1In, 5psi, Cast Bronze - 13202B05

Safety Relief Valve, 1In, 5psi, Cast Bronze - 13202B05

Apollo Valves
SKU:
13202B05
|
UPC:
670750220258
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Safety Relief Valve, Body Material Cast Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1 in, Outlet Size 1 in, Factory Set Pressure 5 psi, Pressure Range 5 to 15 psi, Steam Capacity (Lb./Hr.) 374 lb/hr, Disc Material EPDM, Overall Height 2 1/16 in, Application Low Pressure Steam Heating and Supply Boilers, Overall Length 5 3/8 in, Seat Material EPDM, Spring Material Stainless Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Test Lever Included, Standards CRN
Additional Information
Country of Origin:
United States
Inlet Size:
1";Outlet Size=1""
Body Material:
Cast Bronze
Item:
Safety Relief Valve
Outlet Type:
FNPT
Inlet Type:
MNPT
Overall Height:
2 1/16 in
Steam Capacity (Lb./Hr.):
374
Spring Material:
Stainless Steel
Test Lever:
Yes
Application:
Low Pressure Steam Heating and Supply Boilers
Disc Material:
EPDM
Temp. Range:
0 Degrees to 250 Degrees F
Factory Set Pressure:
5 psi
Pressure Range:
5 to 15 psi
Seat Material:
EPDM
Standards:
CRN
Overall Length:
5 3/8 in
Product Type:
Safety Relief Valve
Operating Pressure - Minimum:
5 psi
Inlet Connection Size:
1 in
ASME Section Code:
Section IV
Inlet Connection Gender:
Male
For Media:
Steam
Inlet Connection Type:
NPT
Outlet Connection Size:
1 in
Operating Pressure - Maximum:
15 psi
Operating Temperature - Minimum:
0 Degrees F
Outlet Connection Type:
NPT
Outlet Connection Gender:
Female
Operating Temperature - Maximum:
250 Degrees F
Package Quantity:
1
