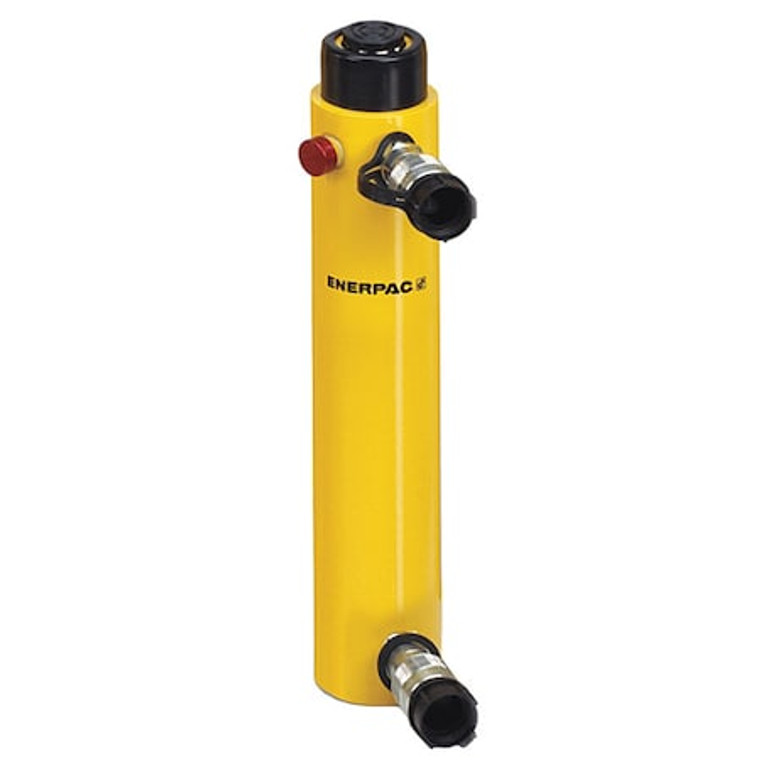

RR1010, 11.1 ton Capacity, 10.00 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder - RR1010

RR1010, 11.1 ton Capacity, 10.00 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder - RR1010

Enerpac
SKU:
RR1010
|
UPC:
662005303298
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Hydraulic Ram, Double Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 10 in, Nominal Stroke Length 10 in, Effective Push Area 2.23 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 22.33 cu in, Retracted Height 16.13 in, Extended Height 26.13 in, Outside Dia. 2.88 in, Plunger Dia. 1.38 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-3/4 In.-14, Base Bolt Circle Dia. 2.05 in, Center Hole Dia. 5 1/8 in, Series RR
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Hydraulic Ram
Bore Dia.:
1.69 in
Stroke Length:
10 in
Max. Pressure:
10,000 psi
Outside Dia.:
2.88 in
Center Hole Dia.:
5 1/8 in
Plunger Dia.:
1.38 in
Body Material:
Steel
Single Acting/Double Acting:
Double Acting
Bolt Circle Dia.:
2.05";Retracted Height=16.13 in"
Includes:
Dust Cap, Female Coupler
Weight Capacity:
10 tons
Collar Thread Size:
2-3/4-14"
Thread Size:
2-12"
Plunger Thread Size:
1-8"
Effective Area:
2.23 sq. in.
Handle:
No
Oil Capacity:
22.33 pulg. cub.
Cylinder Type:
General Purpose
Extended Height:
26.13 in
Oil Capacity Push:
22.33 cu in
Effective Push Area:
2.23 sq in
Base Bolt Circle Dia.:
2.05 in
Series:
RR
Nominal Capacity:
10 ton
Nominal Stroke Length:
10 in
Max. Push Capacity:
10 ton
Type:
Double-Acting
Finish:
Paint
Package Quantity:
1
