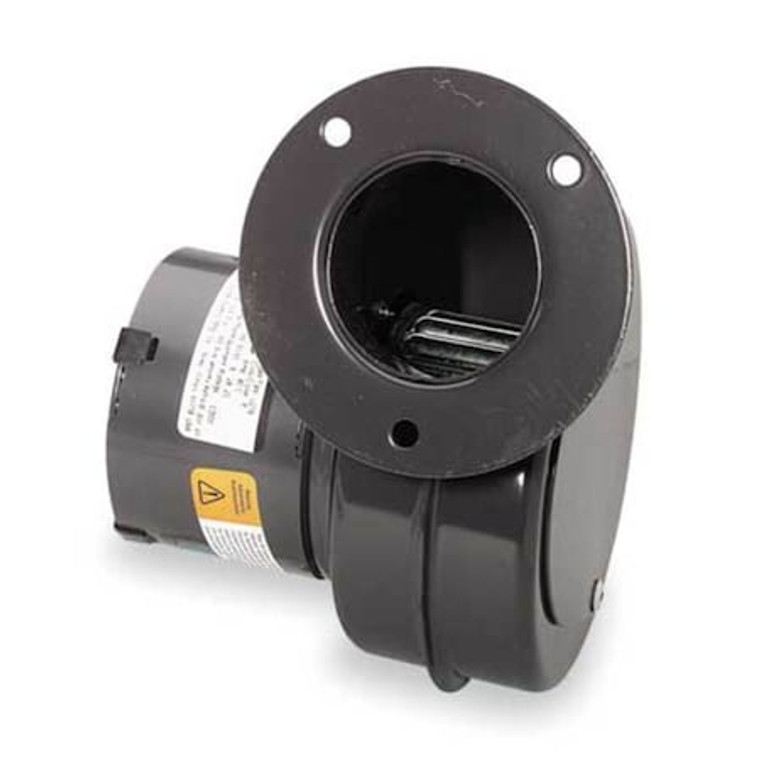

Round OEM Blower, 3020 RPM, 1 Phase, Direct, Steel - 70213482X

Round OEM Blower, 3020 RPM, 1 Phase, Direct, Steel - 70213482X

Dayton
SKU:
70213482X
|
UPC:
190735362457
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 in, Airflow @ 0.000 in SP 60 cfm, Airflow @ 0.100 in SP 57 cfm, Airflow @ 0.400 in SP 39 cfm, Airflow @ 0.500 in SP 23 cfm
Additional Information
Country of Origin:
United States
CFM @ 0.100-In. SP:
57
Drive Type:
Direct Drive
Full Load Amps:
0.28/0.23
Housing Material:
Steel
Inlet Dia.:
2 3/8 in
Number of Speeds:
1
Overall Height:
5 3/4 in
Overall Width:
5 3/16 in
Phase:
1
Blower Item:
OEM Specialty Blower
Blower Outlet Shape:
Round
With Flange:
Yes
Blower Wheel Diameter:
3 in
Blower Motor Type:
Shaded Pole
Blower Voltage:
230V AC
Blower Thermal Protection:
Auto
Blower Conduit Box:
Yes
Mounting Position:
All Position
Dimension A:
6 5/16 in
Outlet Width:
4 in
Dimension F:
3 5/16 in
CFM @ 0.200-In. SP:
54
Dimension L:
2 3/8 in
CFM @ 0.150-In. SP:
55 cfm
Dimension E:
7 in
CFM @ 0.400-In. SP:
39
Agency Compliance:
CSA Certified, UL Component Recognized
CFM @ 0.300-In. SP:
49
Wheel Type:
Forward-Curved
Outlet Height:
2 5/8 in
Housing Color:
Gray
Motor Enclosure:
Open Dripproof
Motor Insulation:
Class B
Dimension J:
4 in
Dimension B:
5 13/16 in
CFM @ 0.500-In. SP:
23
Dimension D:
2 7/32 in
Lead Length:
6 in
CFM @ 0.000-In. SP:
60
Housing Finish:
Baked Enamel
Max. Inlet Temp.:
104 Degrees F
Not For Use With:
Not Intended For Use As Inline Blowers For Wood Burners
RPM:
3020
Item:
OEM Blower
Blower Wheel Width:
1 7/8 in
Dimension C:
5 7/32 in
Bearing Type:
Sleeve
Overall Depth:
6 1/4 in
Replaces:
2C914
Hz:
50/60
Max. Ambient Temp.:
104 Degrees F
Dimension M:
2 13/16 in
Motor Type:
Shaded Pole
Current:
0.28/0.23 A
Frequency:
50/60 Hz
Inlet Diameter:
2 3/8 in
Flange Type:
Flanged
Airflow @ 0.400 in SP:
39 cfm
Includes Drive Package:
Yes
Housing Material Finish:
Baked Enamel
Replacement For:
2C914
Flange Size:
4 in Dia.
Motor Insulation Class:
B
Motor Speed:
3,030 RPM
Includes Motor:
Yes
Wheel Diameter:
3 in
Mount Type:
All Position
Maximum Ambient Temperature:
104 Degrees F
Airflow @ 0.500 in SP:
23 cfm
Outlet Diameter:
2 1/8 in
Discharge Position:
All
Nameplate Voltage:
230V AC
Number of Discharge Positions:
4
Thermal Overload Protection:
Yes
Minimum Ambient Temperature:
40 Degrees C
Maximum Inlet Air Temperature:
104 Degrees F
Electrical Connection:
Wire Leads
Outlet Shape:
Round
Number of Inlets:
1
Mounting Orientation:
Multiposition
Maximum Fan Speed:
3,020 RPM
Assembly:
Assembled
Manufacturer Warranty Length:
1 yr Limited
Airflow @ 0.000 in SP:
60 cfm
Rotation:
CCW
Wheel Material:
Steel
Motor Horsepower:
1/125 hp
Wheel Width:
1 7/8 in
Standards:
CSA Certified, UL Listed
Airflow @ 0.100 in SP:
57 cfm
For Air Type:
Clean Air
OEM Replacement:
No
Package Quantity:
1
