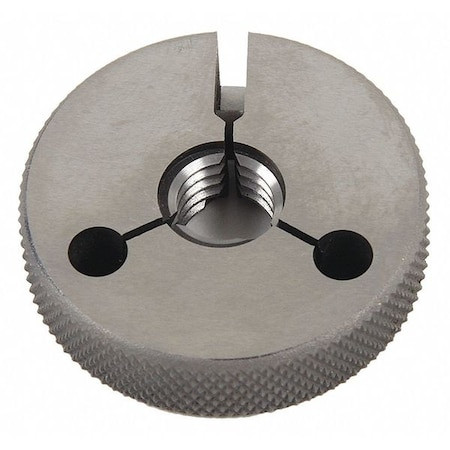

Ring Gage, Go/NoGo, 2A, 5/8-11 - 361147050

Ring Gage, Go/NoGo, 2A, 5/8-11 - 361147050

Vermont Gage
SKU:
361147050
|
UPC:
662631439453
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type Go/No-Go (Plus/Minus), Pitch Diameter 0.5644 (Go), 0.5589 (No-Go), Pitch Diameter - Go Member 0.5644 in, Pitch Diameter - No-Go Member 0.5589 in, Thread Class 2A, Thread Length 3/4 in; 9/16 in, Thread Size 5/8 In.-11, Thread Type UNC, Compatible Holder Size 4T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62
Additional Information
Country of Origin:
United States
Item:
Threaded Ring Gauge
Type:
Go/No Go
Class:
2A
Thread Size:
5/8-11"
Thread Type:
UNC
Includes:
Certificate of Accuracy
Application:
For inspecting the pitch diameter and functional threads.
Tolerance:
Class X
Meets/Exceeds:
ANSI B1.2
Material:
Tool Steel
Finish:
Uncoated
Included Certification:
Certificate of Accuracy with NIST Traceability
Long Form Calibration Certificate:
No
Pitch Diameter - No-Go Member:
0.5589 in
Thread Length:
3/4 in; 9/16 in
Hardness:
RC 60-62
Pitch Diameter:
0.5644 (Go), 0.5589 (No-Go)
Thread Class:
2A
Tolerance Class:
X
Gauge Type:
Go/No-Go (Plus/Minus)
Compatible Holder Size:
4T
Standards:
ASME B1.2
Gauge Design:
Adjustable
Pitch Diameter - Go Member:
0.5644 in
Dimension Type:
Inch
Package Quantity:
1
