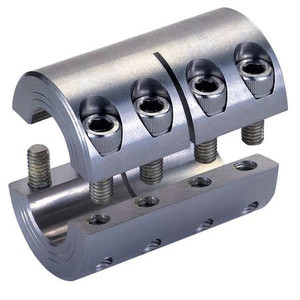

Rigid Shaft Coupling, Two Piece, 1-15/16in - SPX-31-31-SS

Rigid Shaft Coupling, Two Piece, 1-15/16in - SPX-31-31-SS

Ruland
SKU:
SPX-31-31-SS
|
UPC:
634529119600
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 15/16 in, Bore Diameter 2 1 15/16 in, Bore Type Round, Clearance Diameter 3.66 in, Coupling Construction Two-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 3 3/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 15/16 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 15/16 in, Maximum Speed 4,000 RPM, Maximum Torque 6,100 in-lb
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
2 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
1 15/16 in
Material - Couplings:
303 Stainless Steel
Outside Dia.:
3 3/8 in
Overall Length:
4 7/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
Bright
Clearance Dia. (In.):
3.657
Max. RPM:
4,000 RPM
Clearance Dia.:
3.657 in
Screw Size (In.):
3/8-24
Type:
Two Piece Clamp Type
Design:
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Bore Tolerance of +.002/.0005" (+.050mm/+.012mm), Machined From Solid Bar Stock and Sourced Exclusively from North American Mills"
Screw Size:
3/8-24"
Provides:
High Torque with No Misalignment Capabilities
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Material:
303 Stainless Steel
Application:
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Machined From:
Bar Stock
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material:
Stainless Steel
Keyway Width 2:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Coupling Material Grade:
303
Bore Type:
Round
Recommended Gap:
0.094 in
Screw Location from Center:
1.391 in
Coupling Material Finish:
Bright
Shaft Tolerance:
+0.0000 in / -0.0005 in
Bore Diameter 1:
1 15/16 in
Screw Material Finish:
Bright
Keyway Depth 2:
Not Applicable
Coupling Construction:
Two-Piece
Fastener Tightening Torque:
345 lb-in
Resistance Properties:
Corrosion Resistant
Keyway Width 1:
Not Applicable
Coupling Outside Diameter:
3 3/8 in
Maximum Speed:
4,000 RPM
Zero Backlash:
Yes
Minimum Bore Diameter:
1 15/16 in
Bore Diameter 2:
1 15/16 in
Screw Material Grade:
18-8 300 Series
Keyway Depth 1:
Not Applicable
Maximum Bore Diameter:
1 15/16 in
Included Screws:
(8) Clamp Screws
Coupling Material:
Stainless Steel
Number of Locking Screws:
8
Clearance Diameter:
3.66 in
Maximum Torque:
6,100 in-lb
Screw Thread Size:
3/8-24"
Features:
Precision Honed Bores, Vibration-Resistant Screws
Different Bore Sizes:
No
Maximum Operating Temperature:
350 Degrees F
Shaft Locking Type:
Clamp On
Package Quantity:
1
