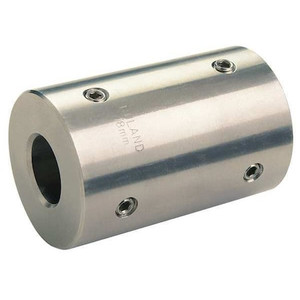

Rigid Shaft Coupling, Set Screw, 1in. - SCC-16-16-SS

Rigid Shaft Coupling, Set Screw, 1in. - SCC-16-16-SS

Ruland
SKU:
SCC-16-16-SS
|
UPC:
634529076729
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 in, Bore Diameter 2 1 in, Bore Type Round Keyed, Clearance Diameter 1.75 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 3/4 in, Different Bore Sizes No, Keyway Depth 1 1/8 in, Keyway Depth 2 1/8 in, Minimum Bore Diameter 1 in, Keyway Width 1 1/4 in, Keyway Width 2 1/4 in, Maximum Bore Diameter 1 in, Maximum Speed 4,000 RPM, Maximum Torque 1,200 in-lb, Overall Length 3 in, Shaft Locking Type Set Screw
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1 in
Material - Couplings:
303 Stainless Steel
Outside Dia.:
1 3/4 in
Overall Length:
3 in
With Keyway / Without Keyway:
With Keyway
Finish:
Bright
Screw Size (In.):
5/16-18
Screw Size:
5/16-18"
Design:
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Bore Tolerance of +.002/.0005" (+.050mm/+.012mm), Machined From Solid Bar Stock and Sourced Exclusively from North American Mills"
Type:
Set Screw Type, with Keyway
Application:
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Keyway Width (In.):
1/4";Keyway Width=1/4 in"
Material:
303 Stainless Steel
Machined From:
Bar Stock
Max. RPM:
4,000 RPM
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Provides:
High Torque with No Misalignment Capabilities
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material:
Stainless Steel
Coupling Outside Diameter:
1 3/4 in
Keyway Width 1:
1/4 in
Keyway Depth 1:
1/8 in
Fastener Tightening Torque:
130 lb-in
Maximum Speed:
4,000 RPM
Keyway Depth 2:
1/8 in
Screw Location from Center:
Not Applicable
Resistance Properties:
Corrosion Resistant
Coupling Construction:
One-Piece
Keyway Width 2:
1/4 in
Maximum Bore Diameter:
1 in
Coupling Material Grade:
303
Screw Thread Size:
5/16-18"
Maximum Torque:
1,200 in-lb
Bore Diameter 1:
1 in
Screw Material Grade:
18-8 300 Series
Minimum Bore Diameter:
1 in
Screw Material Finish:
Bright
Bore Diameter 2:
1 in
Shaft Locking Type:
Set Screw
Bore Type:
Round Keyed
Shaft Tolerance:
+0.0000 in / -0.0005 in
Maximum Operating Temperature:
350 Degrees F
Number of Locking Screws:
4
Different Bore Sizes:
No
Zero Backlash:
Yes
Recommended Gap:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Features:
Precision Honed Bores, Vibration-Resistant Screws
Clearance Diameter:
1.75 in
Coupling Material:
Stainless Steel
Coupling Material Finish:
Bright
Included Screws:
(4) Set Screws
Package Quantity:
1
