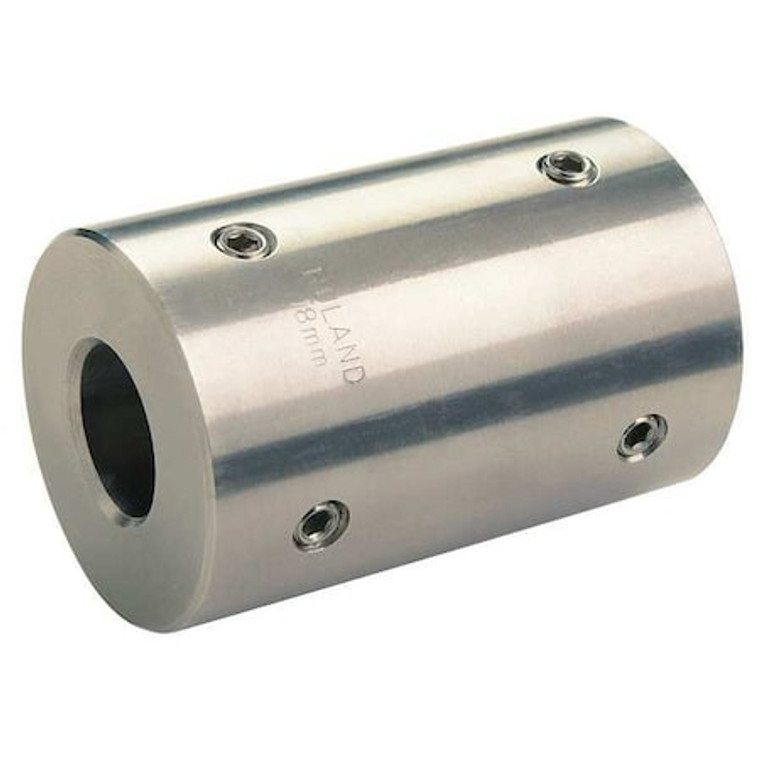

Rigid Shaft Coupling, Set Screw, 1-1/8in. - SCX-18-18-SS

Rigid Shaft Coupling, Set Screw, 1-1/8in. - SCX-18-18-SS

Ruland
SKU:
SCX-18-18-SS
|
UPC:
634529076651
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 1/8 in, Bore Diameter 2 1 1/8 in, Bore Type Round, Clearance Diameter 1.88 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 7/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 1/8 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 1/8 in, Maximum Speed 4,000 RPM, Maximum Torque 1,325 in-lb
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
1 Piece Set Screw
System of Measurement:
Inch
Bore Dia.:
1 1/8 in
Material - Couplings:
303 Stainless Steel
Outside Dia.:
1 7/8 in
Overall Length:
3 1/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
Bright
Application:
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Machined From:
Bar Stock
Material:
303 Stainless Steel
Type:
Set Screw Type
Max. RPM:
4,000 RPM
Screw Size (In.):
3/8-16
Provides:
High Torque with No Misalignment Capabilities
Screw Size:
3/8-16"
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Design:
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Bore Tolerance of +.002/.0005" (+.050mm/+.012mm), Machined From Solid Bar Stock and Sourced Exclusively from North American Mills"
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material:
Stainless Steel
Screw Material Finish:
Bright
Minimum Bore Diameter:
1 1/8 in
Coupling Construction:
One-Piece
Coupling Material Finish:
Bright
Maximum Bore Diameter:
1 1/8 in
Maximum Speed:
4,000 RPM
Coupling Material:
Stainless Steel
Resistance Properties:
Corrosion Resistant
Bore Diameter 2:
1 1/8 in
Clearance Diameter:
1.88 in
Number of Locking Screws:
4
Recommended Gap:
Not Applicable
Different Bore Sizes:
No
Screw Location from Center:
Not Applicable
Features:
Precision Honed Bores, Vibration-Resistant Screws
Maximum Operating Temperature:
350 Degrees F
Coupling Outside Diameter:
1 7/8 in
Keyway Width 1:
Not Applicable
Included Screws:
(4) Set Screws
Maximum Torque:
1,325 in-lb
Bore Type:
Round
Keyway Depth 1:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Screw Material Grade:
18-8 300 Series
Screw Thread Size:
3/8-16"
Fastener Tightening Torque:
230 lb-in
Coupling Material Grade:
303
Shaft Locking Type:
Set Screw
Keyway Width 2:
Not Applicable
Keyway Depth 2:
Not Applicable
Zero Backlash:
Yes
Bore Diameter 1:
1 1/8 in
Shaft Tolerance:
+0.0000 in / -0.0005 in
Package Quantity:
1
