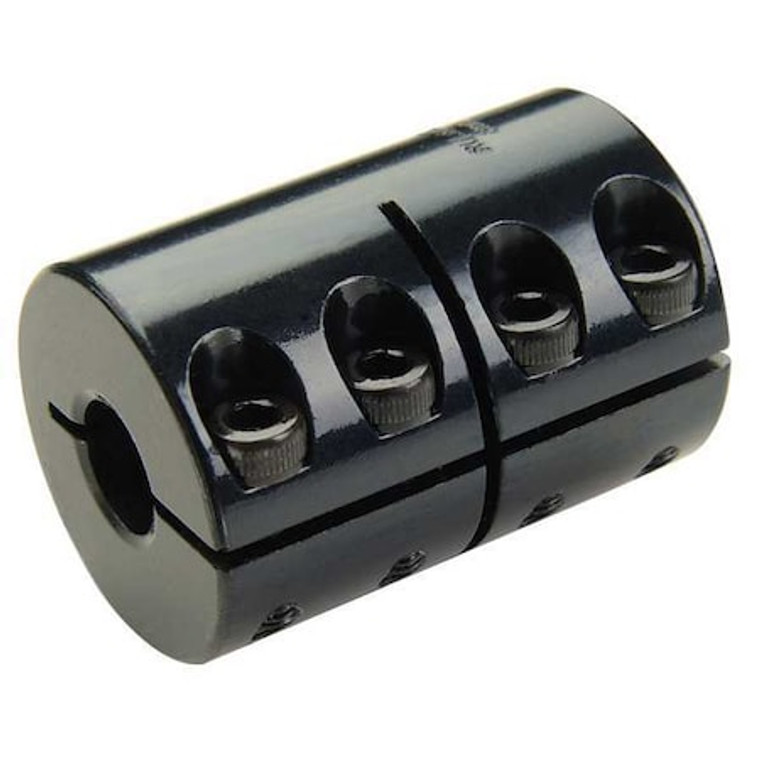

Rigid Shaft Coupling, One Piece, 1-7/16in. - CLX-23-23-F

Rigid Shaft Coupling, One Piece, 1-7/16in. - CLX-23-23-F

Ruland
SKU:
CLX-23-23-F
|
UPC:
634529112328
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 7/16 in, Bore Diameter 2 1 7/16 in, Bore Type Round, Clearance Diameter 2.84 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 2 5/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 7/16 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 7/16 in, Maximum Speed 4,000 RPM, Maximum Torque 10,250 in-lb
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1 7/16 in
Material - Couplings:
1215 Lead Free Steel
Outside Dia.:
2 5/8 in
Overall Length:
3 7/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Screw Size:
5/16-24"
Max. RPM:
4,000 RPM
Machined From:
Bar Stock
Clearance Dia.:
2.84 in
Screw Size (In.):
5/16-24
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Material:
1215 Lead Free Steel
Design:
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Bore Tolerance of +.002/.0005" (+.050mm/+.012mm), Machined From Solid Bar Stock and Sourced Exclusively from North American Mills"
Clearance Dia. (In.):
2.840
Application:
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Provides:
High Torque with No Misalignment Capabilities
Type:
One Piece Clamp Type
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material:
Alloy Steel
Screw Thread Size:
5/16-24"
Coupling Material Finish:
Black Oxide
Zero Backlash:
Yes
Maximum Torque:
10,250 in-lb
Recommended Gap:
Not Applicable
Clearance Diameter:
2.84 in
Coupling Material:
Carbon Steel
Minimum Operating Temperature:
-40 Degrees F
Shaft Locking Type:
Clamp On
Bore Type:
Round
Keyway Width 1:
Not Applicable
Coupling Construction:
One-Piece
Features:
Precision Honed Bores, Vibration-Resistant Screws
Coupling Outside Diameter:
2 5/8 in
Maximum Bore Diameter:
1 7/16 in
Keyway Width 2:
Not Applicable
Minimum Bore Diameter:
1 7/16 in
Screw Location from Center:
1.05 in
Number of Locking Screws:
4
Bore Diameter 2:
1 7/16 in
Resistance Properties:
Corrosion Resistant
Fastener Tightening Torque:
325 lb-in
Keyway Depth 1:
Not Applicable
Shaft Tolerance:
+0.0000 in / -0.0005 in
Maximum Speed:
4,000 RPM
Screw Material Finish:
Black Oxide
Keyway Depth 2:
Not Applicable
Maximum Operating Temperature:
350 Degrees F
Included Screws:
(4) Clamp Screws
Different Bore Sizes:
No
Bore Diameter 1:
1 7/16 in
Coupling Material Grade:
1215
Package Quantity:
1
