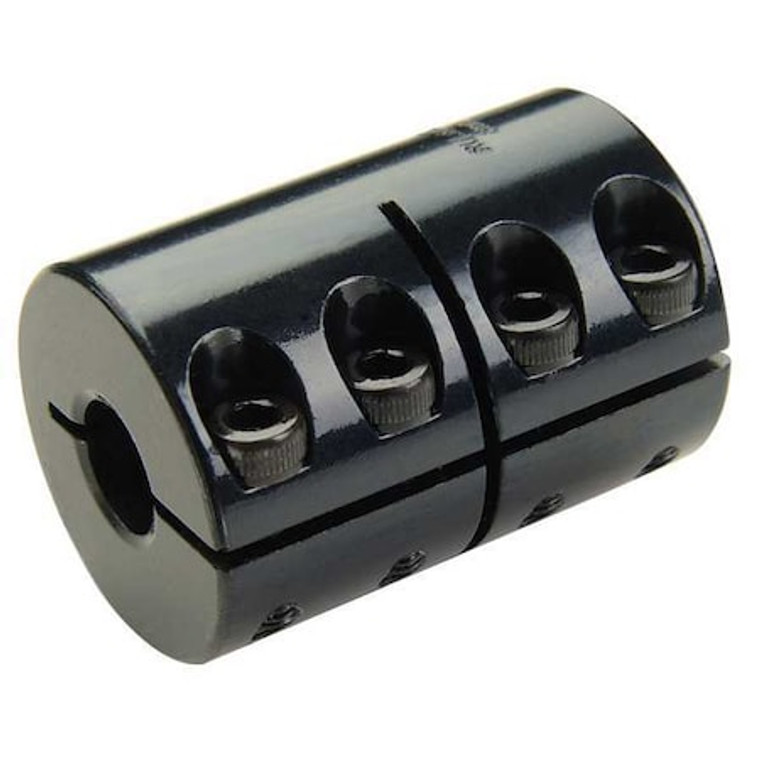

Rigid Shaft Coupling, One Piece, 1-3/16in. - CLX-19-19-F

Rigid Shaft Coupling, One Piece, 1-3/16in. - CLX-19-19-F

Ruland
SKU:
CLX-19-19-F
|
UPC:
634529004173
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 3/16 in, Bore Diameter 2 1 3/16 in, Bore Type Round, Clearance Diameter 2.24 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 2 1/16 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 3/16 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 3/16 in, Maximum Speed 4,000 RPM, Maximum Torque 5,000 in-lb
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
1 3/16 in
Material - Couplings:
1215 Lead Free Steel
Outside Dia.:
2 1/16 in
Overall Length:
3 1/4 in
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Screw Size (In.):
1/4-28
Type:
One Piece Clamp Type
Clearance Dia.:
2.242 in
Machined From:
Bar Stock
Design:
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Bore Tolerance of +.002/.0005" (+.050mm/+.012mm), Machined From Solid Bar Stock and Sourced Exclusively from North American Mills"
Provides:
High Torque with No Misalignment Capabilities
Max. RPM:
4,000 RPM
Clearance Dia. (In.):
2.242
Application:
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Screw Size:
1/4-28"
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Material:
1215 Lead Free Steel
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material:
Alloy Steel
Fastener Tightening Torque:
170 lb-in
Shaft Locking Type:
Clamp On
Number of Locking Screws:
4
Shaft Tolerance:
+0.0000 in / -0.0005 in
Bore Diameter 2:
1 3/16 in
Screw Location from Center:
0.807 in
Keyway Width 2:
Not Applicable
Coupling Outside Diameter:
2 1/16 in
Keyway Depth 1:
Not Applicable
Coupling Material Finish:
Black Oxide
Clearance Diameter:
2.24 in
Keyway Width 1:
Not Applicable
Resistance Properties:
Corrosion Resistant
Recommended Gap:
Not Applicable
Keyway Depth 2:
Not Applicable
Minimum Bore Diameter:
1 3/16 in
Maximum Torque:
5,000 in-lb
Coupling Construction:
One-Piece
Screw Material Finish:
Black Oxide
Minimum Operating Temperature:
-40 Degrees F
Bore Type:
Round
Zero Backlash:
Yes
Maximum Operating Temperature:
350 Degrees F
Maximum Speed:
4,000 RPM
Features:
Precision Honed Bores, Vibration-Resistant Screws
Coupling Material:
Carbon Steel
Bore Diameter 1:
1 3/16 in
Included Screws:
(4) Clamp Screws
Different Bore Sizes:
No
Maximum Bore Diameter:
1 3/16 in
Coupling Material Grade:
1215
Screw Thread Size:
1/4-28"
Package Quantity:
1
