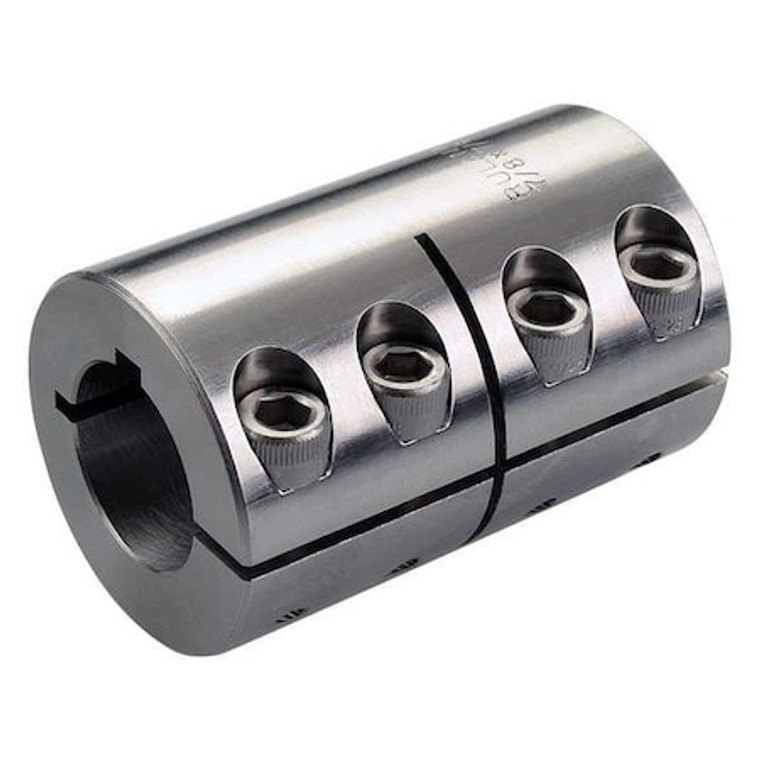

Rigid Shaft Coupling, One Piece, 1-15/16in - CLC-31-31-SS

Rigid Shaft Coupling, One Piece, 1-15/16in - CLC-31-31-SS

Ruland
SKU:
CLC-31-31-SS
|
UPC:
634529112267
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 15/16 in, Bore Diameter 2 1 15/16 in, Bore Type Round Keyed, Clearance Diameter 3.66 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 3 3/8 in, Different Bore Sizes No, Keyway Depth 1 1/4 in, Keyway Depth 2 1/4 in, Minimum Bore Diameter 1 15/16 in, Keyway Width 1 1/2 in, Keyway Width 2 1/2 in, Maximum Bore Diameter 1 15/16 in, Maximum Speed 4,000 RPM, Maximum Torque 6,100 in-lb, Overall Length 4 7/8 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1 15/16 in
Material - Couplings:
303 Stainless Steel
Outside Dia.:
3 3/8 in
Overall Length:
4 7/8 in
With Keyway / Without Keyway:
With Keyway
Finish:
Bright
Provides:
High Torque with No Misalignment Capabilities
Type:
One Piece Clamp Type, with Keyway
Screw Size (In.):
3/8-24
Keyway Width (In.):
1/2";Clearance Dia. (In.)=3.657"
Keyway Width:
1/2 in
Machined From:
Bar Stock
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Screw Size:
3/8-24"
Design:
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Opposing Screws Used On Two-Piece Couplings for Reduced Vibration and Higher Speed Capabilities, Bore Tolerance of +.002/.0005" (+.050mm/+.012mm), Machi
Application:
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Clearance Dia.:
3.657 in
Max. RPM:
4,000 RPM
Material:
303 Stainless Steel
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Stainless Steel
Bore Tolerance:
+0.0020 in / +0.0005 in
Number of Locking Screws:
4
Keyway Width 1:
1/2 in
Shaft Tolerance:
+0.0000 in / -0.0005 in
Shaft Locking Type:
Clamp On
Coupling Material Finish:
Bright
Coupling Material Grade:
303
Keyway Depth 1:
1/4 in
Screw Location from Center:
1.391 in
Recommended Gap:
Not Applicable
Screw Thread Size:
3/8-24"
Maximum Torque:
6,100 in-lb
Bore Type:
Round Keyed
Maximum Operating Temperature:
350 Degrees F
Bore Diameter 1:
1 15/16 in
Screw Material Finish:
Bright
Different Bore Sizes:
No
Maximum Speed:
4,000 RPM
Included Screws:
(4) Clamp Screws
Coupling Outside Diameter:
3 3/8 in
Bore Diameter 2:
1 15/16 in
Fastener Tightening Torque:
345 lb-in
Keyway Depth 2:
1/4 in
Coupling Construction:
One-Piece
Clearance Diameter:
3.66 in
Coupling Material:
Stainless Steel
Minimum Operating Temperature:
-40 Degrees F
Zero Backlash:
Yes
Keyway Width 2:
1/2 in
Maximum Bore Diameter:
1 15/16 in
Minimum Bore Diameter:
1 15/16 in
Features:
Precision Honed Bores, Vibration-Resistant Screws
Resistance Properties:
Corrosion Resistant
Screw Material Grade:
18-8 300 Series
Package Quantity:
1
