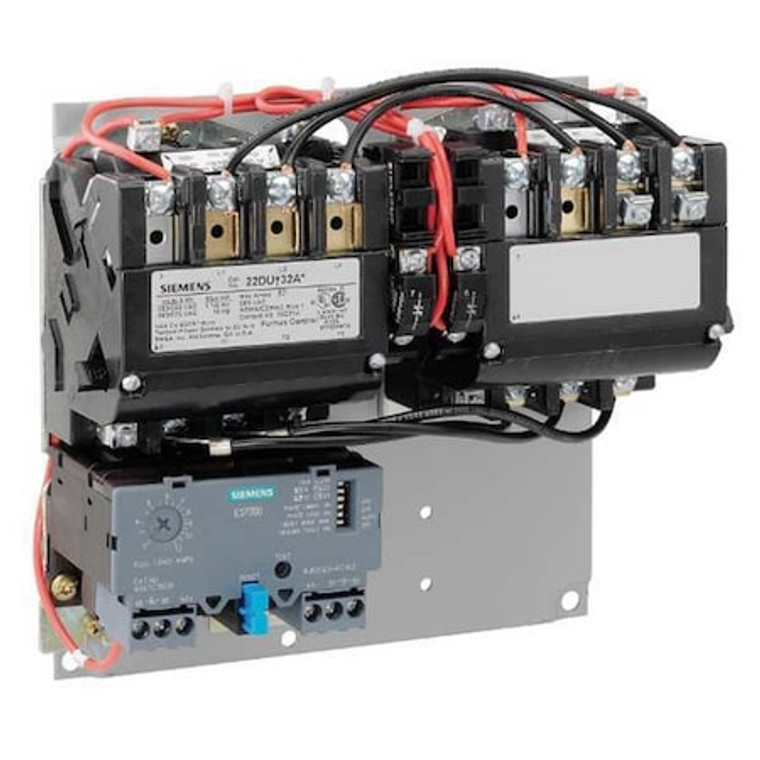

Reversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO - 22CUB32AF

Reversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO - 22CUB32AF

Siemens
SKU:
22CUB32AF
|
UPC:
783087964075
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 3.4 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.75 A, Trip Class 5/10/20/30, Series FVR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC, Horsepower @ Three Phase - 600V AC 2 hp
Additional Information
Country of Origin:
Mexico
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
0.75 to 3.4A
Coil Volts:
120V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
3/4 hp
Starter Type:
NEMA Style
Action:
Reversing
Amps AC:
18
NEMA Size:
0
Number of Poles:
3
HP @ 3 Phase - 480V:
1 1/2 hp
Hz:
50/60
HP @ 3 Phase - 575V:
2 hp
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
HP @ 3 Phase - 208V:
1/2 hp
Depth:
3.92 in
Width:
10.5 in
Height:
7.69 in
Thermal Unit Code:
Not Applicable
Horsepower @ Three Phase - 240V AC:
3/4 hp
Overall Depth:
3.92 in
Maximum Overload Relay Current Setting:
3.4 A
Mounting Style:
Surface
Overload Protection Type:
Electronic
Number of Auxillary Contacts:
1
Mechanical Operating Durability:
10,000,000
Horsepower @ Three Phase - 480V AC:
1 1/2 hp
Overall Width:
10.5 in
Auxiliary Contact Module Capacity:
8
Phase:
Three
Terminal Connection Type:
Screw Terminals
Horsepower @ Three Phase - 600V AC:
2 hp
NEMA Enclosure Rating:
No Enclosure
Series:
FVR
Coil Voltage:
110/120V AC
Maximum Voltage Rating:
600V AC
Starter Style:
NEMA
Trip Class:
5/10/20/30
Mounting Postion:
Vertical
Frequency:
50/60 Hz
Minimum Operating Temperature:
-4 Degrees F
Horsepower @ Three Phase - 208V AC:
1/2 hp
Response Time:
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Current AC:
18 A
Maximum Operating Temperature:
104 Degrees F
Overall Height:
7.69 in
Includes Auxiliary Contacts:
Yes
Minimum Overload Relay Current Setting:
0.75 A
Reversing Capability:
Reversing
Package Quantity:
1
