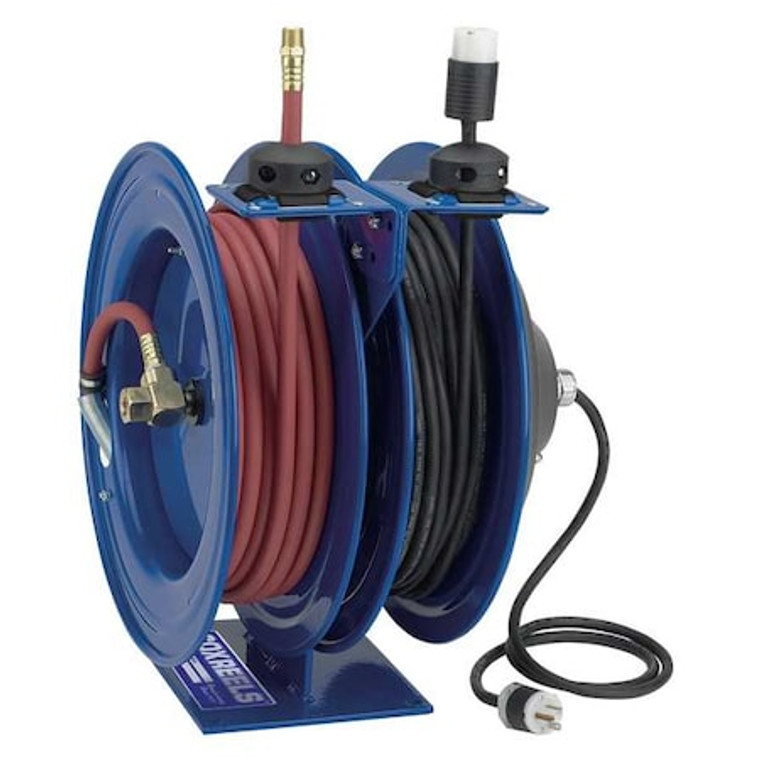

Reel, Combination, Spring Driven, 3/8x50 Ft - C-L350-5012-F

Reel, Combination, Spring Driven, 3/8x50 Ft - C-L350-5012-F

Coxreels
SKU:
C-L350-5012-F
|
UPC:
674255726390
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Dual Reel Spring Return Hose Reel, Air, Electric, 0 psi, 300 psi, Combination Type Air/Electric, Hose Capacity 50 ft (3/8 in ID), Includes Hose Yes, Mounting Location Bench, Floor, Truck, Wall, Overall Height 18 5/8 in, Overall Length 17 in, Overall Width 16 in, Feeder Cord Ending Configuration NEMA 5-20P, Retractable Cord Ending Configuration NEMA 5-20P, Drive Type Spring Return, Enclosed No, Cord Color Black, Cord Current 20 A, Cord Gauge 12 AWG, Voltage 115 V AC, Seal Material Nitrile
Additional Information
Country of Origin:
United States
Voltage:
115 V AC
Amps:
13 A
Wire Gauge (AWG):
12
Plug Type:
NEMA 5-20P
Receptacle Type:
Duplex G.F.C.I. Receptacle
AC Cord Length:
50 ft
Max. Pressure:
300 psi
Hose Inside Dia.:
3/8 in
Hose Length:
50 ft
Max. Pressure (PSI):
300
Max. Temp. (F):
150 Degrees F
Drive Type:
Spring Return
Hose Included:
Yes
Reel Inlet:
3/8 in (F)NPT
Overall Length:
17 in
Bearings:
Permanently Lubricated
Mounting:
Bench and Vehicle, Ceiling, Floor, Wall
Finish:
Powder Coated
Phase:
Single Phase
Hose Ends:
3/8 in MNPT x 3/8 in MNPT
Overall Height:
18 5/8 in
Includes:
Cord, Duplex GFCI Metal Industrial Receptacle, Hose
Number of Conductors:
2
Item:
Dual Reel Spring Return Hose Reel
Seal Type:
Nitrile
Latch:
Locking
Hose Material:
PVC
Overall Width:
16 in
Swivel Material:
Brass
Standards:
CE
Features:
1 in Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates Independently, Heavy Gauge 1/4 in Steel Base & Support Post For Maximum Stability, Single Pedestal Reel, Solid One Pie
Weight:
84 lb
Maximum Operating Temperature:
150 Degrees F
Includes Hose:
Yes
For Dual Hose:
No
Swivel Outlet Size:
3/8 in
Swivel Inlet Type:
NPT
Maximum Operating Pressure:
300 psi
Latch Type:
Locking
Swivel Outlet Gender:
Female
Hose 1 Tube Material:
PVC
Hose 1 Fitting A Type:
NPT
Hose Return Speed Control:
No
Spiral Hose Guard:
No
Mount Hole Diameter:
1/2 in
Swivel Inlet Size:
3/8 in
Mount Base Height:
9 in
Fitting Size:
3/8 in x 3/8 in
Hose 1 Fitting B Type:
NPT
Hose Reel Type:
Wall Mount Hose Reel
Reel Material:
Steel
Mounting Hole Center to Center Width:
7 in
Speed Limited Retraction:
No
Swivel Outlet Type:
NPT
Fitting Type:
Cord x Cord, NPT x NPT
Cord Current:
20 A
Hose 1 Color:
Red
Pedestal Type:
Single Pedestal
Hose 1 Fitting A Material:
Brass
Feeder Cord Length:
5 ft
Enclosed:
No
Includes Leader Hose:
No
Hose 1 Fitting A Gender:
Male
Reel Finish:
Powder Coated
Feeder Cord Ending Configuration:
NEMA 5-20P
Hose Capacity:
50 ft (3/8 in ID)
Mount Base Width:
8 in
Hose Reel Primary Application:
Air, Electric
Combination Type:
Air/Electric
Seal Material:
Nitrile
Mounting Hole Center to Center Height:
8 in
Hose 1 Fitting B Gender:
Male
Minimum Operating Temperature:
-15 Degrees F
Hose 1 Fitting A Size:
3/8 in
Fasteners Included:
No
Retractable Cord Length:
50 ft
Cord Color:
Black
Bearing Construction:
Permanently Lubricated
Includes Cord:
Yes
Number of Outlets:
2
Hose 1 Fitting B Size:
3/8 in
Reel Diameter:
17 in
Number of Guide Arms:
Single Arm
Base Motion Type:
Stationary
Hose 1 Length:
50 ft
Hose 1 Outside Diameter:
5/8 in
Swivel Inlet Thread Size:
3/8 in - 18
Hose 1 Cover Material:
PVC
Hose 1 Fitting B Material:
Brass
Hose 1 Inside Diameter:
3/8 in
Number of Mount Holes:
4
Reel Color:
Blue
Retractable Cord Ending Configuration:
NEMA 5-20P
Swivel Inlet Gender:
Female
Swivel Outlet Thread Size:
3/8 in - 18
Minimum Operating Pressure:
0 psi
Reel Width:
16 in
Include Hose Stop:
Yes
Overall Dimensions:
17 in L x 16 in W x 18 5/8 in H
Retractable Cord Ending:
Single Plug
Cord Gauge:
12 AWG
Hose End Configuration:
3/8 in MNPT x 3/8 in MNPT
Feeder Cord Ending:
Grounding Plug
Duty Rating:
Heavy Duty
Package Quantity:
1
