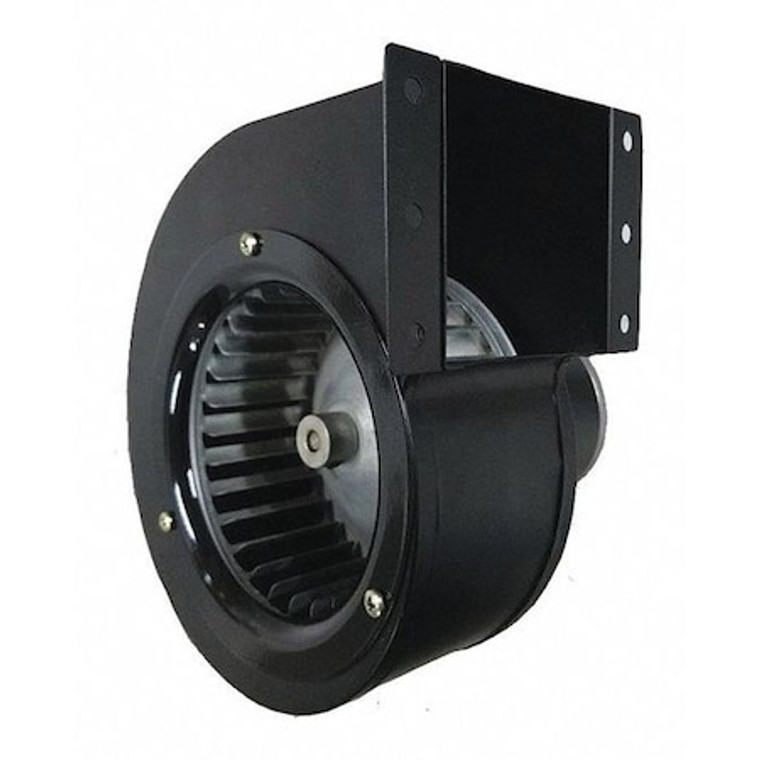

Rectangular OEM Blower, 1875 RPM, 1 Phase, Direct, Steel - 2C646

Name: Rectangular OEM Blower, 1875 RPM, 1 Phase, Direct, Steel - 2C646
Brand: Dayton
SKU: 2C646
Price: 131.09 USD
Availability: InStock

Dayton

SKU:

2C646

UPC:

190735217009

Availability:

In Stock

(No reviews yet)

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 5 1/4 in, Airflow @ 0.000 in SP 176 cfm, Airflow @ 0.100 in SP 170 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 187 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 153 cfm, Airflow @ 0.500 in SP 148 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable

Country of Origin:: Multiple
CFM @ 0.100-In. SP:: 170
Drive Type:: Direct Drive
Full Load Amps:: 5.10
Housing Material:: Steel
Includes:: Not Applicable
Inlet Dia.:: 4 1/2 in
Number of Speeds:: 1
Overall Height:: 8 in
Overall Width:: 6 3/16 in
Phase:: 1
Blower Item:: OEM Specialty Blower
Blower Outlet Shape:: Rectangular
With Flange:: Yes
Blower Wheel Diameter:: 5 1/4 in
Blower Motor Type:: DC
Blower Voltage:: 12V DC
Blower Thermal Protection:: No Thermal Protection
Blower Conduit Box:: No
Dimension B:: 8 in
Dimension F:: 3 in
CFM @ 0.200-In. SP:: 165
Motor Enclosure:: Totally Enclosed
Outlet Width:: 3 in
Dimension M:: 2 3/8 in
Dimension C:: 5 11/16 in
Dimension K:: 3 1/8 in
Housing Finish:: Baked Enamel
RPM:: 1875
Bearing Type:: Ball
Dimension J:: 4 5/8 in
Max. Ambient Temp.:: 104 Degrees F
Dimension L:: 3 15/16 in
Dimension D:: 3 1/8 in
Wheel Type:: Forward-Curved
CFM @ 0.000-In. SP:: 176
Housing Color:: Black
Mounting Position:: All Position
Overall Depth:: 7 7/16 in
Lead Length:: 37 in Black - 10 in Red
Motor Insulation:: Class B
Item:: OEM Blower
Max. Inlet Temp.:: 104 Degrees F
Dimension A:: 7 7/16 in
Blower Wheel Width:: 2 1/2 in
Outlet Height:: 3 1/8 in
CFM @ 0.400-In. SP:: 153
Agency Compliance:: CE and RoHS Compliance
CFM @ 0.300-In. SP:: 159
CFM @ 0.500-In. SP:: 148
Features:: Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced B
Standards:: CE Compliant, RoHS Compliant
Application:: Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
For Location:: Indoor
Wheel Diameter:: 5 1/4 in
Airflow @ 2.000 in SP:: Not Applicable
Outlet Shape:: Rectangular
Mounting Orientation:: Multiposition
Airflow @ 8.000 in SP:: Not Applicable
Brake Horsepower:: 1/35 hp
Airflow @ 12.00 in SP:: Not Applicable
Housing Height:: 8 in
Rotation:: CW
Airflow @ 5.000 in SP:: Not Applicable
Current:: 5.4 A
Maximum Ambient Temperature:: 104 Degrees F
Discharge Position:: Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Resistance Properties:: Corrosion Resistant
Airflow @ 10.00 in SP:: Not Applicable
Housing Material Grade:: SPCC
Airflow @ 3.500 in SP:: Not Applicable
Airflow @ 0.500 in SP:: 148 cfm
Electrical Connection:: Wire Leads
Wheel Bore Diameter:: 8 mm
Maximum Inlet Air Temperature:: 104 Degrees F
Wheel Width:: 2 1/2 in
OEM Replacement:: Yes
Airflow @ 9.000 in SP:: Not Applicable
Airflow @ 6.000 in SP:: Not Applicable
Airflow @ 0.375 in SP:: Not Applicable
Wheel Material Finish:: Galvanized
AMCA Fan Class:: Not Rated
Market:: Commercial, Industrial, Residential
Airflow @ 3.000 in SP:: Not Applicable
For Air Type:: Clean Air
Mount Type:: All Position
Airflow @ 13.00 in SP:: Not Applicable
Motor Duty Class:: Continuous
Airflow @ 0.000 in SP:: 176 cfm
Hazardous Location Application:: No
Airflow @ 11.00 in SP:: Not Applicable
Chemical Resistant:: No
Airflow @ 0.125 in SP:: Not Applicable
For Ventilation Type:: Exhaust, Make-Up, Return, Supply
Housing Material Gauge:: 0.8 mm
Airflow @ 7.000 in SP:: Not Applicable
Manufacturer Warranty Length:: 1 yr Limited
Airflow @ 1.250 in SP:: Not Applicable
Includes Motor:: Yes
Outlet Diameter:: Not Applicable
Housing Material Finish:: Baked Enamel
Minimum Ambient Temperature:: 14 Degrees F
Maximum Fan Speed:: 1,875 RPM
Nameplate Voltage:: 12V DC
Includes Drive Package:: Not Applicable
Shaft Diameter:: 8 mm
Inlet Diameter:: 4 1/2 in
Airflow @ 1.000 in SP:: Not Applicable
Sound Level:: Not Rated
Airflow @ 0.100 in SP:: 170 cfm
Airflow @ 1.500 in SP:: Not Applicable
Airflow @ 4.500 in SP:: Not Applicable
Motor IP Rating:: IP20
Thermal Overload Protection:: No
Number of Inlets:: 1
Airflow @ 2.500 in SP:: Not Applicable
Hazardous Location Specification:: Not Applicable
Motor Horsepower:: 1/35 hp
Spark Resistant Construction Type:: Not Rated
Airflow @ 0.750 in SP:: Not Applicable
Housing Depth:: 7 7/16 in
Minimum Fan Speed:: 0 RPM
Frequency:: Not Applicable
Flange Size:: 4 5/8 in W x 3 1/8 in H
Flange Type:: Flanged
Housing Width:: 6 3/16 in
Corrosion Resistant:: No
Assembly:: Assembled
Motor Insulation Class:: B
Motor Frame Designation:: 12 VDC motor
Airflow @ 0.250 in SP:: 187 cfm
Maximum Static Pressure:: 1 1/2 in wc
Compatible Speed Control:: No
Includes Mounting Hardware:: No
Motor Speed:: 1,875 RPM
Motor Location:: Out of Airstream
High-Efficiency Motor:: No
Speed Controllable:: No
Airflow @ 0.400 in SP:: 153 cfm
Airflow @ 4.000 in SP:: Not Applicable
Replacement For:: Not Applicable
For High-Static Pressure Applications:: No
Wheel Material:: Steel
Package Quantity:: 1
