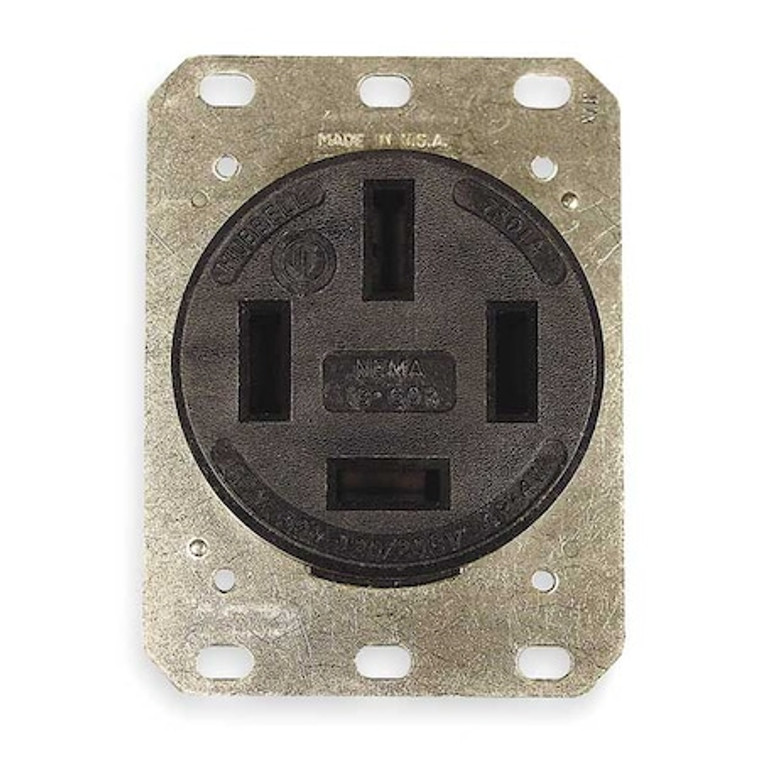

Receptacle, 60 A Amps, 120/208V AC, Flush Mount, Single Outlet, 18-60R, Black - HBL7301A

Receptacle, 60 A Amps, 120/208V AC, Flush Mount, Single Outlet, 18-60R, Black - HBL7301A

Hubbell
SKU:
HBL7301A
|
UPC:
783585015095
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 60 A, GFCI No, Grounding Non-Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 18-60R, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
Additional Information
Country of Origin:
United States
Item:
Receptacle
Outlet Type - Plugs and Receptacles:
Single
Application Environment:
Industrial
Mounting Type - Plugs and Receptacles:
Flush
Amps - Plugs and Receptacles:
60 A
Voltage - Plugs and Receptacles:
120/208V AC
NEMA Receptacle Configuration - Plugs and Receptacles:
18-60R
Surge Suppression:
No
Tamper Resistant:
No
Weather Resistant - Plugs and Receptacles:
No
Color - Plugs and Receptacles:
Black
Wiring Method - Plugs and Receptacles:
Back and Side
Number of Poles:
4
Number of Wires:
4
Power Indicator:
No
Standards:
CSA Certified, NEMA WD-6, UL E2186
Number of Gangs:
1
Accessory Group:
D
Item - Plugs and Receptacles:
Receptacle
NEMA Configuration:
18-60
Corrosion Resistant:
No
HP:
7 1/2 hp
Outlet Type:
Single
Boot Code:
D
Voltage:
120/208VAC
Color:
Black
Mounting Type:
Flush
Description:
Finder Groove, Non Grounding
Amps:
60
Weather Resistant:
No
Amps - Plugs and Receptacles:
60
Phase:
Three
IP Rating:
IP20
Material:
Reinforced Thermoplastic Polyester/Glass Reinforced PET
Sub-Category:
Single Receptacles
Wiring Method:
Back, Side
Width:
1.81 in
Additional Electrical Protection:
Standard Protection
Connection Orientation:
Straight
Housing Material:
Thermoplastic
Contact Material:
Brass
NEMA Enclosure Rating:
1
Horsepower Rating:
7 1/2 hp
Mount Hole Center-to-Center Height:
3.3 in
Wire Connection Types:
Screw Terminals
Flange Type:
Non-Flanged
For Location:
Indoor
Maximum Operating Temperature:
167 Degrees F
Voltage Rating:
120/208V AC
Face Diameter:
2.4 in
Additional Electrical Protections:
Standard Protection
Minimum Wire Size:
12 AWG
UL 94 Flammability Rating:
HB
Overall Depth:
2.4 in
Market:
Industrial
Cover Type:
No Cover
Maximum Wire Size:
4 AWG
Key Resistance Properties:
Standard Resistance
Surge Protection:
No
GFCI:
No
Number of Poles & Wires:
4 Pole / 4 Wire
Grounding:
Non-Grounded
Includes:
Weatherproof Cover
Shrouded:
No
Receptacle Type:
Single
Wire Connection Type:
Screw Terminals
AFCI:
No
Minimum Operating Temperature:
-40 Degrees F
Housing Color:
Black
Grade:
Federal Specification
NEMA Receptacle Configuration:
18-60R
Polarized:
Yes
Current Rating:
60 A
Mount Type:
Flush
Certification:
UL Listed, File E2186, Listed to UL Standard 498
Mounting Strap Material:
.062 (1.5) Plated Steel"
Power Contacts Material:
.040 (1.0) Brass"
Amperage:
60A
Face Shape:
Traditional
Terminal Identification:
Terminals identified in accordance with UL 498 and CSA
Receptacle Style:
Single
NEMA No.:
18-60R
Base Material:
Glass Reinforced PET
Top Material:
RTP
Rating:
60A, 3ph 120/208VACV
Box Terminals Material:
Copper
Device Color:
Black
Dielectric Voltage:
Withstands 2,000V minimum
Mounting Screw Material:
Steel-Zinc Plated
Terminal Screw Material:
3/8 Allen Head, Plated Steel"
Horsepower:
7.5
Current Interrupting:
Certified for current interrupting at full rated current
Operating Temperatures:
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires:
4 Pole, 4 Wire Non-Grounding
Type:
4 Pole, 4 Wire, Non Grounding
Face Style:
Finder Groove
Receptacle Grade:
Heavy Duty Spec Grade
Standard:
NEMA
Terminal Accommodation:
#12 AWG through #4 AWG copper wire only
Flammability:
UL 94 HB, UL 94 V0.
Temperature Rise:
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
IP Suitability:
IP20
Wattage:
12480 W
Item Type:
Single
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Current / Amperage Rating:
60 A
Dielectric Strength:
Withstands 2,000V minimum
Nema Rating:
18-60R
Display Size:
Standard Sized Product
Wire Size:
#12 AWG to #4 AWG
Industry Standard(s):
CSA Certified NEMA® WD-6 Compliant UL Listed File E2186
OEM Brand Name:
Hubbell Wiring Device-Kellems
Amperage Rating:
60 A
Application:
Heavy Duty
Length:
3.28 in
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Ope
Material - Mounting Hardware:
Screw Mounting
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum:
7.5
Connectivity:
Back and Side Wired Screw Terminals
Voltage Rating Description:
120/208 V AC
Package Quantity:
1
