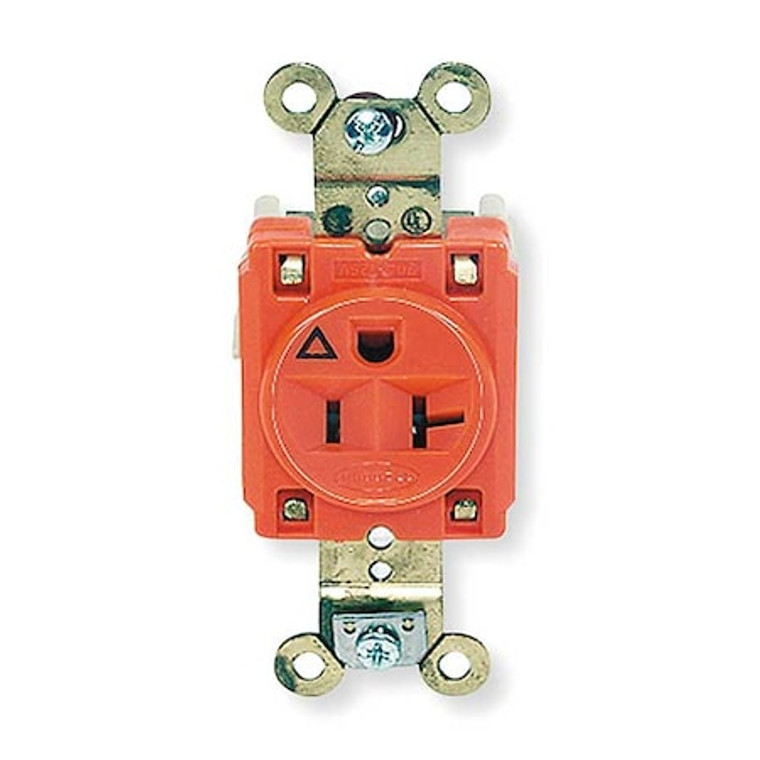

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, Orange - IG5361

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, Orange - IG5361

Hubbell
SKU:
IG5361
|
UPC:
783585876856
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Housing Color Orange, Housing Material Nylon (Face), Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
Additional Information
Country of Origin:
United States
Item:
Receptacle
Outlet Type - Plugs and Receptacles:
Single
Application Environment:
Industrial
Mounting Type - Plugs and Receptacles:
Flush
Amps - Plugs and Receptacles:
20 A
Voltage - Plugs and Receptacles:
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles:
5-20R
Surge Suppression:
No
Tamper Resistant:
No
Weather Resistant - Plugs and Receptacles:
No
Color - Plugs and Receptacles:
Orange
Wiring Method - Plugs and Receptacles:
Back and Side
Number of Poles:
2
Number of Wires:
3
Power Indicator:
No
Amps - Plugs and Receptacles:
20
Mounting Type:
Flush
Special Features:
Isolated Ground
Phase:
Single
Corrosion Resistant:
No
Sub-Category:
Single Receptacles
Amps:
20
Color:
Orange
Standards:
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Outlet Type:
Single
NEMA Configuration:
5-20
Number of Gangs:
1
Weather Resistant:
No
Item - Plugs and Receptacles:
Isolated Ground Receptacle
HP:
1 hp
Voltage:
125VAC
Material:
Nylon/Reinforced PET
Wiring Method:
Back, Side
Width:
1.63 in
Height:
1.19 in
Type:
Single
Receptacle Type:
Single
Current Rating:
20 A
Polarized:
Yes
Housing Color:
Orange
Overall Depth:
1.2 in
Flange Type:
Non-Flanged
Mount Hole Center-to-Center Height:
3.3 in
Connection Orientation:
Straight
NEMA Enclosure Rating:
1
Grade:
Federal Specification
Mount Type:
Flush
Minimum Wire Size:
14 AWG
For Location:
Indoor
Maximum Operating Temperature:
167 Degrees F
Voltage Rating:
125V AC
Includes Mounting Hardware:
Yes
Shrouded:
No
Includes:
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material:
Nickel-Plated Brass
Face Plate Height:
1.9 in
Surge Protection:
No
Maximum Wire Size:
10 AWG
Cover Type:
No Cover
Horsepower Rating:
1 hp
Wire Connection Type:
Screw Terminals
Housing Material:
Nylon (Face)
UL 94 Flammability Rating:
V-0, V-2
Minimum Operating Temperature:
-40 Degrees F
Market:
Commercial, Industrial
NEMA Receptacle Configuration:
5-20R
Face Plate Width:
1.6 in
Grounding:
Isolated Ground
GFCI:
No
AFCI:
No
Top Material:
Nylon
Device Color:
Orange
Rating:
15A, 125V
Operating Temperatures:
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower:
1
Terminal Screw Material:
#8-32 Brass /Ni plated for neutral
Poles and Wires:
2 Pole, 3-Wire Grounding
Mounting Screw Material:
Steel-Zinc Plated
Power Contacts Material:
.032 (.8) Brass"
Base Material:
Reinforced PET
Current Interrupting:
Certified for current interrupting at full rated current
Auto Ground Clip Material:
Stainless Steel
Temperature Rise:
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
NEMA No.:
5-20R
Amperage:
20A
Certification:
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Flammability:
UL 94 V2 or better., Top
Face Shape:
Traditional
Face Style:
Finder Groove
Receptacle Grade:
Heavy Duty Spec Grade
Ground Screw Material:
#8-32 Brass, Multiple Drive (Green)
Terminal Accommodation:
#14-#10 AWG copper stranded or solid conductor only
Receptacle Style:
Single
Terminal Identification:
Terminals identified in accordance with UL 498 and CSA
Enhancement:
Isolated Ground
Mounting Strap Material:
.050 (1.3) Brass"
Dielectric Voltage:
Withstands 2,000V minimum
Standard:
NEMA
Material - Mounting Hardware:
Screw Mounting
Horsepower - Maximum:
1
Length:
3.28 in
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Display Size:
Standard Sized Product
Current / Amperage Rating:
20 A
Dimensions:
3.28 in x 1.63 in x 1.19 in
Application:
Extra Heavy Duty Specification Grade
Wire Size:
#14 AWG to #10 AWG
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top
Amperage Rating:
20 A
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Voltage Rating Description:
125 V
Series:
Heavy Duty
OEM Brand Name:
Hubbell Wiring Device-Kellems
Style:
Finder Groove Face
Item Type:
Single
Wattage:
2500 W
Connectivity:
Back and Side Wired Screw Terminals
Industry Standard(s):
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Nema Rating:
5-20R
Package Quantity:
1
