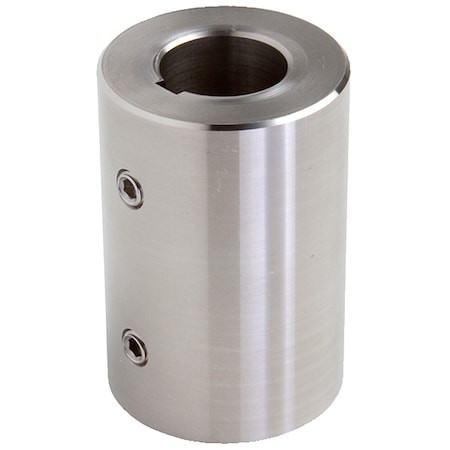

RC-075-S-KW Set Screw Coupling with Keyway - RC-075-S-KW

RC-075-S-KW Set Screw Coupling with Keyway - RC-075-S-KW

Climax Metal Products
SKU:
RC-075-S-KW
|
UPC:
44861352700
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 3/4 in, Bore Type Round Keyed, Clearance Diameter 1.5 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 2 1/4 in, Different Bore Sizes No, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 5/8 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 5/8 in, Maximum Speed 3,500 RPM, Maximum Torque 338 in-lb, Overall Length 2 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
3/4 in
Material - Couplings:
Stainless Steel
Outside Dia.:
2 1/4 in
Overall Length:
2 in
With Keyway / Without Keyway:
With Keyway
Finish:
Plain
Machined From:
Bar Stock
Keyway Width (In.):
3/16
Design:
Locks Securely to Shafting with (2) Socket Setscrews
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Keyway Width:
3/16 in
Screw Size (In.):
5/16-18 x 1/4
Max. RPM:
3,500 RPM
Max. Torque:
338 in-lb
Type:
One Piece Set Screw, with Keyway
Material:
Stainless Steel
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Clearance Dia.:
1.5 in
Max. Torque (In.-Lbs.):
338
Clearance Dia. (In.):
1-1/2
Screw Size:
5/16-18"
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Stainless Steel
Bore Tolerance:
+0.003 in / +0.0005 in
Number of Locking Screws:
2
Different Bore Sizes:
No
Keyway Depth 2:
3/32 in
Maximum Speed:
3,500 RPM
Bore Type:
Round Keyed
Bore Diameter 2:
3/4 in
Maximum Torque:
338 in-lb
Coupling Material Grade:
303
Clearance Diameter:
1.5 in
Maximum Bore Diameter:
5/8 in
Keyway Depth 1:
3/32 in
Keyway Width 1:
3/16 in
Screw Thread Size:
5/16-18"
Included Screws:
(2) Hex Socket Set Screw
Coupling Construction:
One-Piece
Shaft Locking Type:
Set Screw
Screw Material Finish:
Plain
Coupling Outside Diameter:
2 1/4 in
Coupling Material Finish:
Plain
Screw Material Grade:
18-8
Zero Backlash:
Yes
Coupling Material:
Stainless Steel
Keyway Width 2:
3/16 in
Bore Diameter 1:
3/4 in
Minimum Bore Diameter:
5/8 in
Package Quantity:
1
