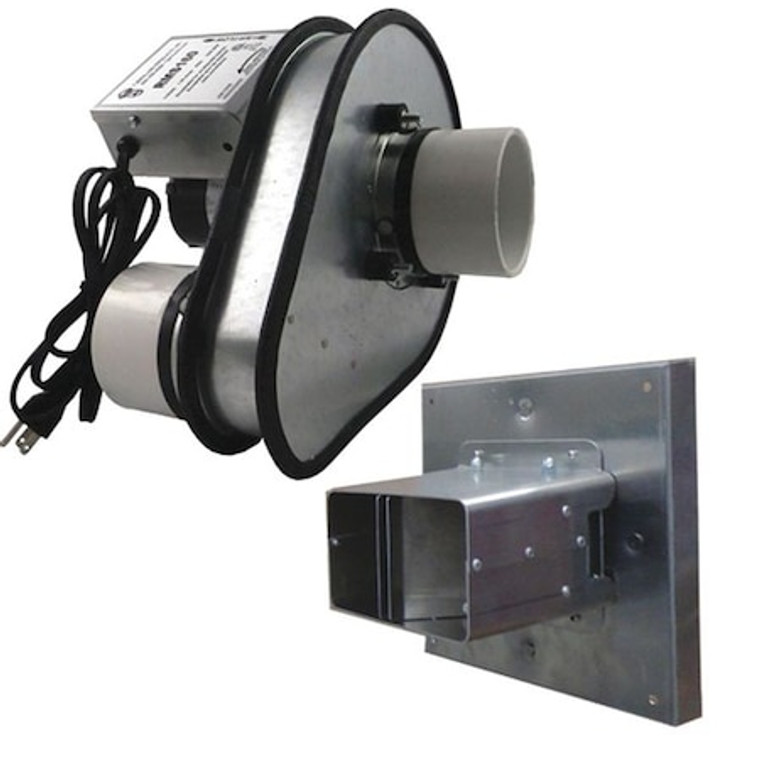

Radon Fan, First Duct Dia 3In., 120V - RMS160

Radon Fan, First Duct Dia 3In., 120V - RMS160

Tjernlund Products
SKU:
RMS160
|
UPC:
80956957436
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
In-Line Duct Fan, Airflow @ 0.000 in SP 160 cfm, Duct Diameter 3 in, Motor Output Power 7.5 W, Motor IP Rating Not Applicable, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 10 1/2 in, Overall Height 14 1/8 in, Overall Width 11 1/8 in, Application Radon, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 1,600 RPM, Includes Aluminum Variable Exhaust Hood, Maximum Inlet Air Temperature 140 Degrees F, Speed Control Included No, Speed Controllable No
Additional Information
Country of Origin:
United States
Item:
In-Line Duct Fan
CFM @ 0.750-In. SP:
110 cfm
Inlet and Outlet Dia.:
3 1/2 in
Standards:
ETL
Max. Wattage:
50
Max. Static Pressure:
2.1 in
Depth:
14 in
Includes:
Aluminum Variable Exhaust Hood
Voltage:
120 V
Manufacturers Warranty Length:
10 yr
Fits Duct Dia.:
3 in
Max. Amps:
0.8 A
CFM @ 1.500-In. SP:
60
CFM @ 0.000-In. SP:
160 cfm
Maximum Inlet Temp.:
140 Degrees F
CFM @ 1.000-In. SP:
90
Length:
11 1/8 in
Height:
14 1/8 in
Flange Width:
5 3/8 in
Hz:
60
Housing Material:
Galvanized Steel
CFM @ 0.500-In. SP:
120 cfm
Mounting Position:
Vertical or Horizontal
Housing Dia.:
14 1/8 in
Phase:
1
Exhaust Airflow @ 0.000 in SP:
160 cfm
Nameplate Voltage:
120V AC
Exhaust Airflow @ 0.500 in SP:
120 cfm
Inlet/Outlet Diameter:
3 1/2 in
Maximum Static Pressure:
2.1 in wg
Maximum Wattage:
50
Mounting Orientation:
Horizontal or Vertical
Exhaust Airflow @ 0.750 in SP:
110 cfm
Maximum Inlet Temperature:
140 Degrees F
Exhaust Airflow @ 1.500 in SP:
60 cfm
Overall Width:
11 1/8 in
Duct Diameter:
3 in
Exhaust Airflow @ 1.000 in SP:
90 cfm
Manufacturer Warranty Length:
10 yr
Frequency:
60 Hz
Full Load Current:
0.8 A
Overall Height:
14 1/8 in
Overall Depth:
14 in
Airflow @ 0.000 in SP:
160 cfm
Number of Speeds:
1
Motor Speed:
1,600 RPM
Speed Controllable:
No
Application:
Radon
Motor IP Rating:
Not Applicable
Housing Finish:
Galvanized Steel
Motor Output Power:
7.5 W
Maximum Inlet Air Temperature:
140 Degrees F
Speed Control Included:
No
Overall Diameter:
10 1/2 in
Power Consumption:
50 W
High-Efficiency Motor:
No
Package Quantity:
1
