Q-Cobalt™ 135° Wide Land Parabolic Taper Length Drill Cleveland 2575-TN TiN HSS-CO 8% RHS/RHC 31/64 - C16912

Q-Cobalt™ 135° Wide Land Parabolic Taper Length Drill Cleveland 2575-TN TiN HSS-CO 8% RHS/RHC 31/64 - C16912

Cleveland
SKU:
C16912
|
UPC:
697334169123
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

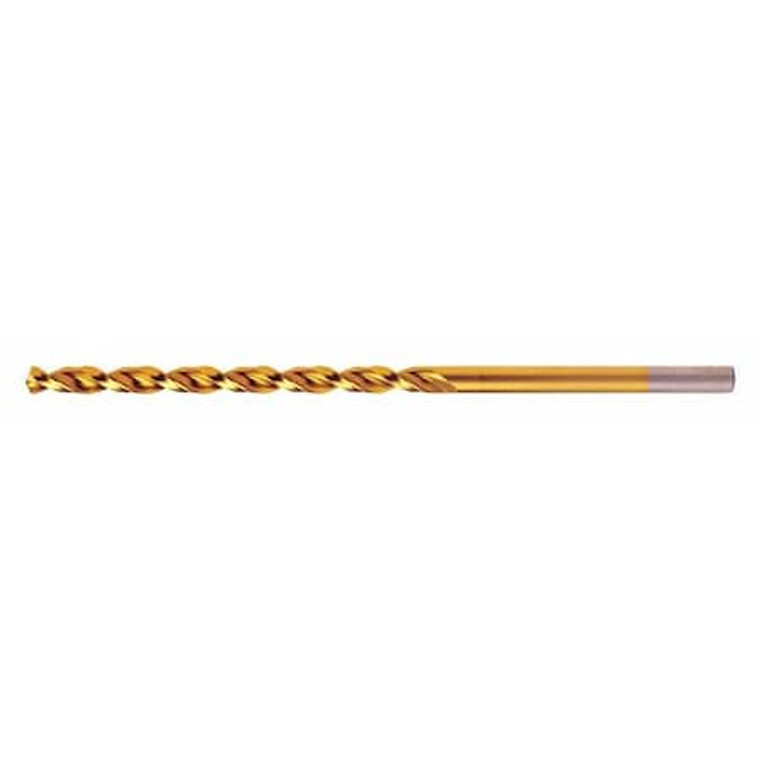

Taper Length Drill Bit, Drill Bit Size 31/64 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiN
Additional Information
Country of Origin:
United States
Drill Bit Grouping:
Drill Bit
Item:
Taper Length Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Shank Type:
Straight
Drill Bit Size:
31/64 in
Drill Bit Point Angle:
135 Degrees
Drill Bit Material:
Cobalt
Decimal Equivalent:
0.4844
Drill Bit Finish:
TiN
Flute Type:
Parabolic
Shank Dia.:
31/64 in
Overall Length:
7 3/4 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
4 3/4 in
Maximum Drilling Depth:
4 3/4 in
Coolant Through:
No
Grade:
High Performance
Application:
For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
List Number:
2575-TN
Standards:
ASME B94.11M-1993
Sizes Included:
31/64";Depth x Dia. Ratio=10xD"
Depth:
Dia. Ratio
Coolant Fed:
Non-Coolant Through
Primary Material Application ISO Code:
K, M, P
Primary Material Application:
Cast Iron, Stainless Steel, Steel
Spiral Direction:
Right Hand
Material - Machining:
Cobalt
Helix Angle:
35 Degrees /45 Degrees
Drill Length Class:
Taper Length
Drill Diameter Tolerance:
+0.0000 in /-0.0010 in
Shank Type - Machining:
Straight
Series:
2575-TN
Finish - Machining:
TiN
Shank Length:
3 in
Drill Bit Point Type:
Split Point
Material Grade - Machining:
M42
Drill Point Length:
0.1003 in
Measurement System:
Fractional Inch
Package Quantity:
1
