Q-Cobalt™ 135° Wide Land Parabolic Taper Length Drill Cleveland 2575-TN TiN HSS-CO 8% RHS/RHC 13/32 - C16907

Q-Cobalt™ 135° Wide Land Parabolic Taper Length Drill Cleveland 2575-TN TiN HSS-CO 8% RHS/RHC 13/32 - C16907

Cleveland
SKU:
C16907
|
UPC:
697334169079
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

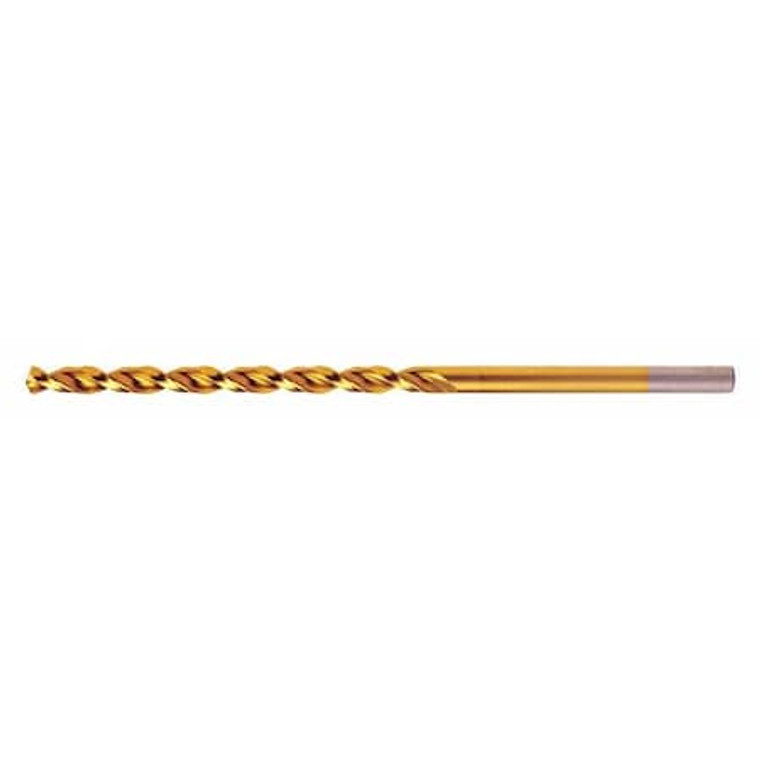

Taper Length Drill Bit, Drill Bit Size 13/32 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiN
Additional Information
Country of Origin:
United States
Item:
Taper Length Drill Bit
Drill Bit Grouping:
Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
13/32 in
Shank Type:
Straight
Drill Bit Point Angle:
135 Degrees
Drill Bit Material:
Cobalt
Decimal Equivalent:
0.4062
Drill Bit Finish:
TiN
Flute Type:
Parabolic
Shank Dia.:
13/32 in
Overall Length:
7 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
4 3/8 in
Maximum Drilling Depth:
4 3/8 in
Standards:
ASME B94.11M-1993
Grade:
High Performance
Coolant Through:
No
List Number:
2575-TN
Application:
For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
Sizes Included:
13/32";Depth x Dia. Ratio=10xD"
Coolant Fed:
Non-Coolant Through
Depth:
Dia. Ratio
Spiral Direction:
Right Hand
Material Grade - Machining:
M42
Finish - Machining:
TiN
Series:
2575-TN
Helix Angle:
35 Degrees /45 Degrees
Drill Bit Point Type:
Split Point
Measurement System:
Fractional Inch
Drill Point Length:
0.0841 in
Shank Type - Machining:
Straight
Material - Machining:
Cobalt
Primary Material Application ISO Code:
K, M, P
Primary Material Application:
Cast Iron, Stainless Steel, Steel
Drill Diameter Tolerance:
+0.0000 in /-0.0010 in
Shank Length:
2 5/8 in
Drill Length Class:
Taper Length
Package Quantity:
1
