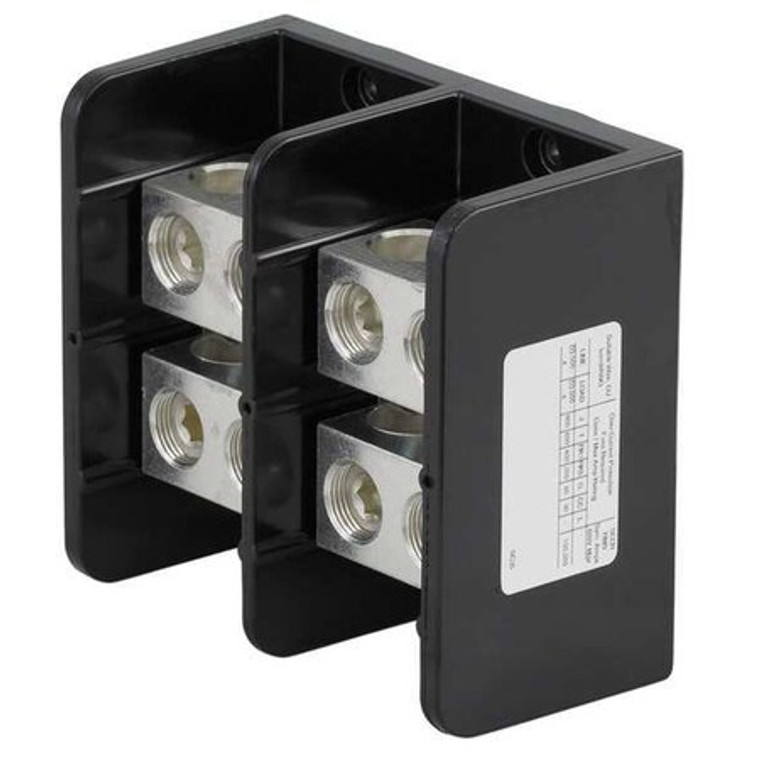

Pwr Dist Block, 760A, 2P, 4AWG-500 MCM, 600V - 9080LBA2652021

Pwr Dist Block, 760A, 2P, 4AWG-500 MCM, 600V - 9080LBA2652021

Square D
SKU:
9080LBA2652021
|
UPC:
785901157069
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 2, For Load Copper Wire Size - Minimum 4 AWG, For Load Copper Wire Size - Maximum 500 kcmil, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 2, Overall Depth 3.13 in, Overall Length 5.5 in, Overall Width 5.88 in
Additional Information
Country of Origin:
United States
Item:
Power Distribution Block
Number of Poles:
2
Max. Amps:
760 A
Primary Connections/Pole:
2
Primary Wire Range (AWG):
4 AWG to 500 MCM
Secondary Connection/Pole:
2
Secondary Wire Range (AWG):
4 AWG to 500 MCM
Power Distribution Block Design:
Open
Voltage Rating:
600V AC
Width:
5.85 in
Depth:
3.12 in
Standards:
CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
Length:
5.5 in
Length (Straight Wireway):
5.5 in
Maximum Current - Copper Conductor:
760 A
For Load Aluminum Wire Size - Maximum:
500 kcmil
Line Connections/Pole:
2
Special Features:
18 Months Warranty, Surface Mount
For Line Aluminum Wire Size - Minimum:
4 AWG
For Conductor Material:
Aluminum, Copper
Primary Wire Range:
4 AWG to 500 kcmil
For Load Copper Wire Size - Maximum:
500 kcmil
Terminal Material:
Aluminum
Line Side Connection Type:
Lug
Housing Material:
Phenolic
Housing Color:
Black
For Load Copper Wire Size - Minimum:
4 AWG
Load Connections/Pole:
2
For Line Copper Wire Size - Maximum:
500 kcmil
Overall Width:
5.88 in
Minimum Operating Temperature:
-40 Degrees F
Load Side Connection Type:
Lug
Overall Depth:
3.13 in
For Line Copper Wire Size - Minimum:
4 AWG
For Load Aluminum Wire Size - Minimum:
4 AWG
RoHS Compliant:
Yes
Maximum Current - Aluminum Conductor:
620 A
Maximum Operating Temperature:
302 Degrees F
Overall Length:
5.5 in
Maximum Voltage:
600 V AC/DC
Number of Circuits:
2
For Line Aluminum Wire Size - Maximum:
500 kcmil
Secondary Wire Range:
4 AWG to 500 MCM
Mounting:
Surface Mount
Amps:
Al conductor
Electrical Connection:
Tin plated Aluminium Lugs
Features:
Mercury Free
Min. Operating Temp.:
-40°F
Material:
Phenolic
Max. Operating Temp.:
302°F
Wire Strip Length:
Line 1.38 in; Load 1.38 in
Package Quantity:
1
