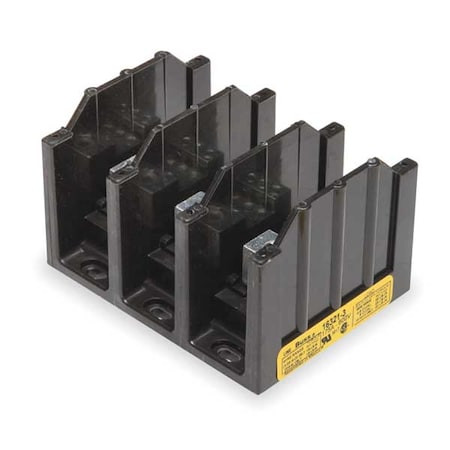

Pwr Dist Block, 420A, 3P, 2AWG-600 MCM, 600V - 16375-3

Pwr Dist Block, 420A, 3P, 2AWG-600 MCM, 600V - 16375-3

Eaton Bussmann
SKU:
16375-3
|
UPC:
51712271516
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 2 AWG, For Line Copper Wire Size - Maximum 600 kcmil, Load Connections/Pole 12, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 420 A, Maximum Voltage 600 V AC/DC, Number of Poles 3, Overall Depth 3.75 in, Overall Length 6.5 in, Overall Width 4.25 in, UL 94 Flammability Rating V-0
Additional Information
Country of Origin:
Mexico
Item:
Power Distribution Block
Number of Poles:
3
Max. Amps:
420 A
Primary Connections/Pole:
1
Primary Wire Range (AWG):
2 AWG to 600 MCM
Secondary Connection/Pole:
12
Secondary Wire Range (AWG):
12 to 4 AWG AL, 14 to 4 AWG CU
Power Distribution Block Design:
Open
Voltage Rating:
600V AC/DC
Length:
4.0 in
Standards:
CSA Class 6228-01, UL 1059
Width:
5.21 in
Depth:
3.32 in
Length (Straight Wireway):
4.0 in
For Load Aluminum Wire Size - Minimum:
12 AWG
For Line Copper Wire Size - Maximum:
600 kcmil
Maximum Current - Copper Conductor:
420 A
UL 94 Flammability Rating:
V-0
Maximum Operating Temperature:
248 Degrees F
For Line Aluminum Wire Size - Minimum:
2 AWG
Line Side Connection Type:
Lug
For Conductor Material:
Aluminum, Copper
Secondary Wire Range:
12 to 4 AWG AL, 14 to 4 AWG CU
Line Connections/Pole:
1
Maximum Current - Aluminum Conductor:
420 A
Maximum Voltage:
600 V AC/DC
For Load Copper Wire Size - Minimum:
14 AWG
Load Connections/Pole:
12
For Load Copper Wire Size - Maximum:
4 AWG
Overall Depth:
3.75 in
Load Side Connection Type:
Lug
For Load Aluminum Wire Size - Maximum:
4 AWG
Primary Wire Range:
2 AWG to 600 kcmil
Housing Material:
Thermoplastic
Overall Length:
6.5 in
RoHS Compliant:
Yes
For Line Aluminum Wire Size - Maximum:
600 kcmil
Housing Color:
Black
Number of Circuits:
3
Terminal Material:
Aluminum
For Line Copper Wire Size - Minimum:
2 AWG
Overall Width:
4.25 in
Minimum Operating Temperature:
-4 Degrees F
Material:
Molded Thermoplastic, Tin Plated Aluminum
Color:
Black
Weight:
2.1 lb
Short Circuit Current Rating:
10 kA
Package Quantity:
1
