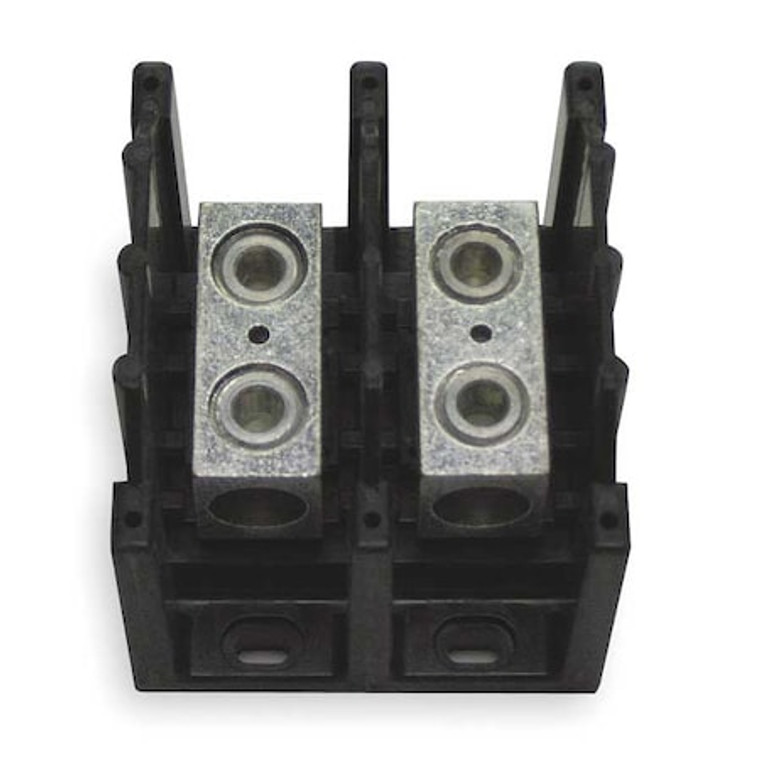

Pwr Dist Block, 310A, 2P, 1P Secondary, 600V - 16303-2

Pwr Dist Block, 310A, 2P, 1P Secondary, 600V - 16303-2

Eaton Bussmann
SKU:
16303-2
|
UPC:
51712148702
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 1, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 310 A, Maximum Voltage 600 V AC/DC, Number of Poles 2, Overall Depth 5 in, Overall Length 1 in, Overall Width 2 in, UL 94 Flammability Rating V-0, Housing Color Black
Additional Information
Country of Origin:
Mexico
Item:
Power Distribution Block
Number of Poles:
2
Max. Amps:
310 A
Primary Connections/Pole:
1
Primary Wire Range (AWG):
6 AWG to 250 MCM
Secondary Connection/Pole:
1
Secondary Wire Range (AWG):
6 AWG to 250 MCM
Power Distribution Block Design:
Open
Voltage Rating:
600V AC/DC
Length:
4.0 in
Depth:
3.32 in
Width:
3.6 in
Standards:
CSA Class 6228-01, UL 1059
Length (Straight Wireway):
4.0 in
For Load Copper Wire Size - Minimum:
6 AWG
Maximum Operating Temperature:
248 Degrees F
Secondary Wire Range:
6 AWG to 350 MCM
Overall Width:
2 in
Line Side Connection Type:
Lug
Line Connections/Pole:
1
For Load Copper Wire Size - Maximum:
350 kcmil
Number of Circuits:
2
For Line Aluminum Wire Size - Maximum:
250 kcmil
Maximum Current - Copper Conductor:
310 A
For Load Aluminum Wire Size - Minimum:
6 AWG
For Line Aluminum Wire Size - Minimum:
6 AWG
For Conductor Material:
Aluminum, Copper
Overall Depth:
5 in
For Load Aluminum Wire Size - Maximum:
250 kcmil
For Line Copper Wire Size - Maximum:
350 kcmil
Housing Color:
Black
Primary Wire Range:
6 AWG to 350 kcmil
Maximum Voltage:
600 V AC/DC
Terminal Material:
Aluminum
Load Connections/Pole:
1
Maximum Current - Aluminum Conductor:
310 A
Housing Material:
Thermoplastic
Load Side Connection Type:
Lug
Minimum Operating Temperature:
-4 Degrees F
For Line Copper Wire Size - Minimum:
6 AWG
UL 94 Flammability Rating:
V-0
RoHS Compliant:
Yes
Overall Length:
1 in
Short Circuit Current Rating:
10 kA
Material:
Molded Thermoplastic, Tin Plated Aluminum
Weight:
0.027 lb
Color:
Black
Package Quantity:
1
