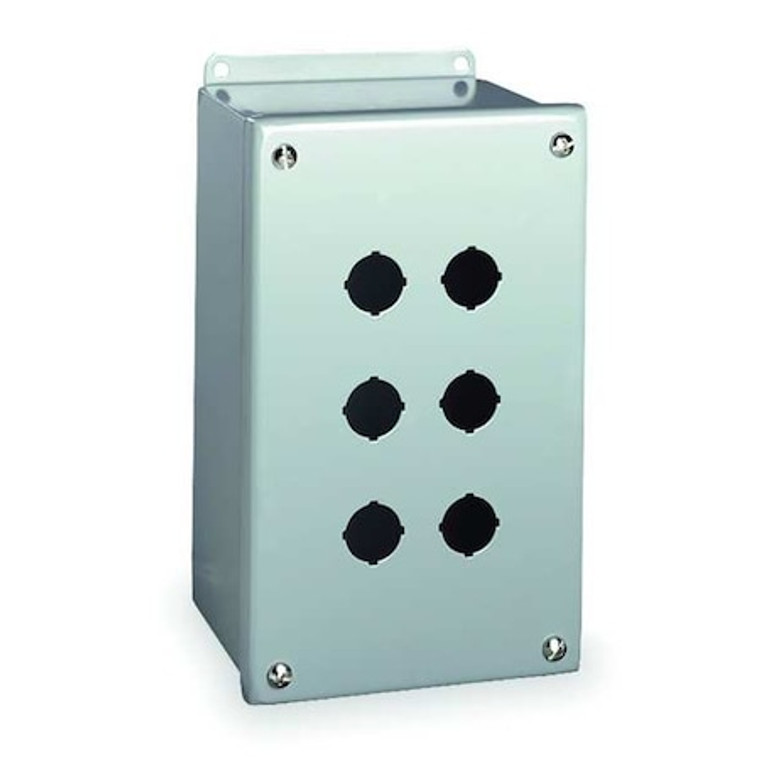

Pushbutton Enclosure, 30mm, 6 Holes, Steel - PBXD6

Pushbutton Enclosure, 30mm, 6 Holes, Steel - PBXD6

Wiegmann
SKU:
PBXD6
|
UPC:
786725431359
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Push Button Enclosure, Number of Columns 2, Number of Holes 6, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 9.50 in H x 8.50 in W x 4.81 in D, Hole Size 30 mm, Material Carbon Steel, Height 9.5 in, Width 8.5 in, Depth 4.81 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Extra Deep, Mounting Style External Plates, Standards cULus, UL Listed
Additional Information
Country of Origin:
United States
Number of Columns:
2
Item:
Push Button Enclosure
Hole Size:
30 mm
Material:
Carbon Steel
Conduit Size:
No Conduit Entrance Holes Provided
Number of Holes:
6
NEMA Rating:
12, 13
Dimensions:
9.50 in H x 8.50 in W x 4.81 in D
Height:
9.5 in
Width:
8.5 in
Depth:
4.81 in
Color:
Gray
Mounting Style:
External Plates
Standards:
cULus, UL Listed
Type:
Extra Deep
Includes:
Captive Cover Screws, Closed Cell Oil Resistant Gasket
Features:
Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard 4-w
Application:
Designed to hold 30.5mm oil-tight pushbuttons, switches, and pilot lights. Provide protection against dirt, dust, oil, and water. Extra deep design accommodates additional contact blocks for pushbuttons.
Mounting:
External Mounting Plates
Construction:
Continuously Welded Seams
Actual Depth:
9.5 in
Standard:
cULus
Series:
PBXD
Actual Height:
9.500 in
Cover Type:
Pushbutton;Screw
Cubic Capacity:
600 cu.in
Listings:
UL, CSA
Finish Type:
Polyester Powder
UL Listed:
Yes
Certified Listed:
cULus
Mounting Type:
External Mounting Plates
Actual Width:
6.250 in
Overall Width:
6 5/8 in
Overall Height:
9 13/16 in
NEMA Enclosure Rating:
4
Overall Depth:
5 1/8 in
Compatible Conduit Size - Maximum:
No Conduit Entrance Holes Provided
Panel Cutout Diameter:
30 mm
Package Quantity:
1
